Network & data connectors
Roxtone Connector RJ45 CAT5 Shielded
- Supplier
- Roxtone
- SKU
- S1-RJ45C5E-PH
- Availability
- In stock

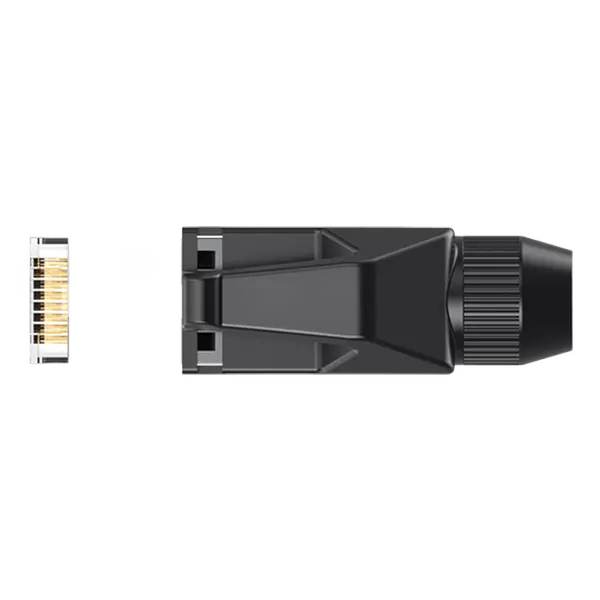

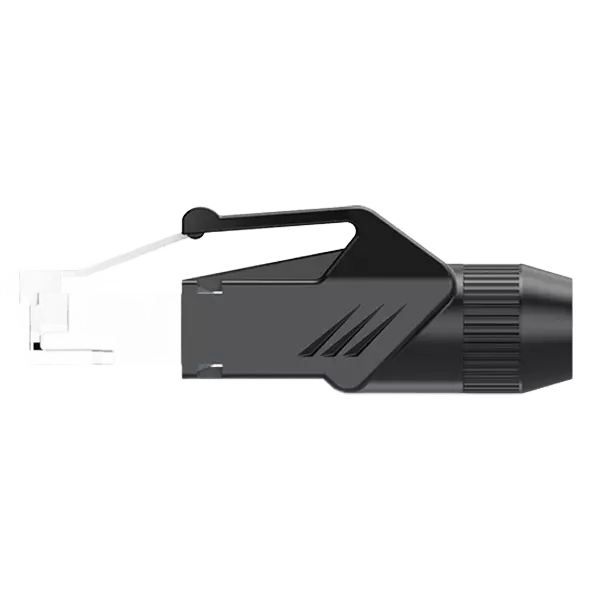

CAT.5e RJ45 plug + Protective housing

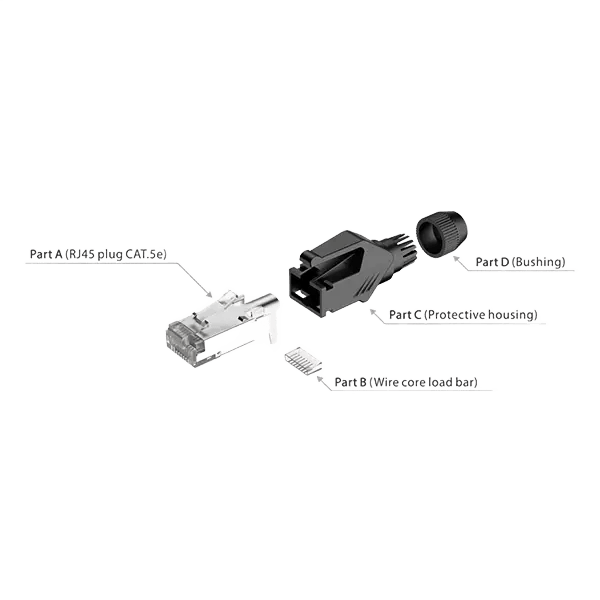

- RJ45 plug (part A) CAT.5e, 150MHz, max. AWG26 ,metal cable clamp holder for drain wire
- Wire core Load bar (part B) easy for assembly
- Nylon protective housing (part C) with special designed cable clamping system,Suitable for max. cable Ø7.0mm
- Optional 10 colours bushing (part D)
- Patent protected
- Recommended cable:CAT5FB/CAT5SB
CAT.5e RJ45 plug + Protective housing
- RJ45 plug (part A) CAT.5e, 150MHz, max. AWG26 ,metal cable clamp holder for drain wire
- Wire core Load bar (part B) easy for assembly
- Nylon protective housing (part C) with special designed cable clamping system,Suitable for max. cable Ø7.0mm
- Optional 10 colours bushing (part D)
- Patent protected
- Recommended cable:CAT5FB/CAT5SB
From
R 29.00
Enquire about this product
Tell us what you need for Roxtone Connector RJ45 CAT5 Shielded. We will respond with availability, pricing, and next steps.
