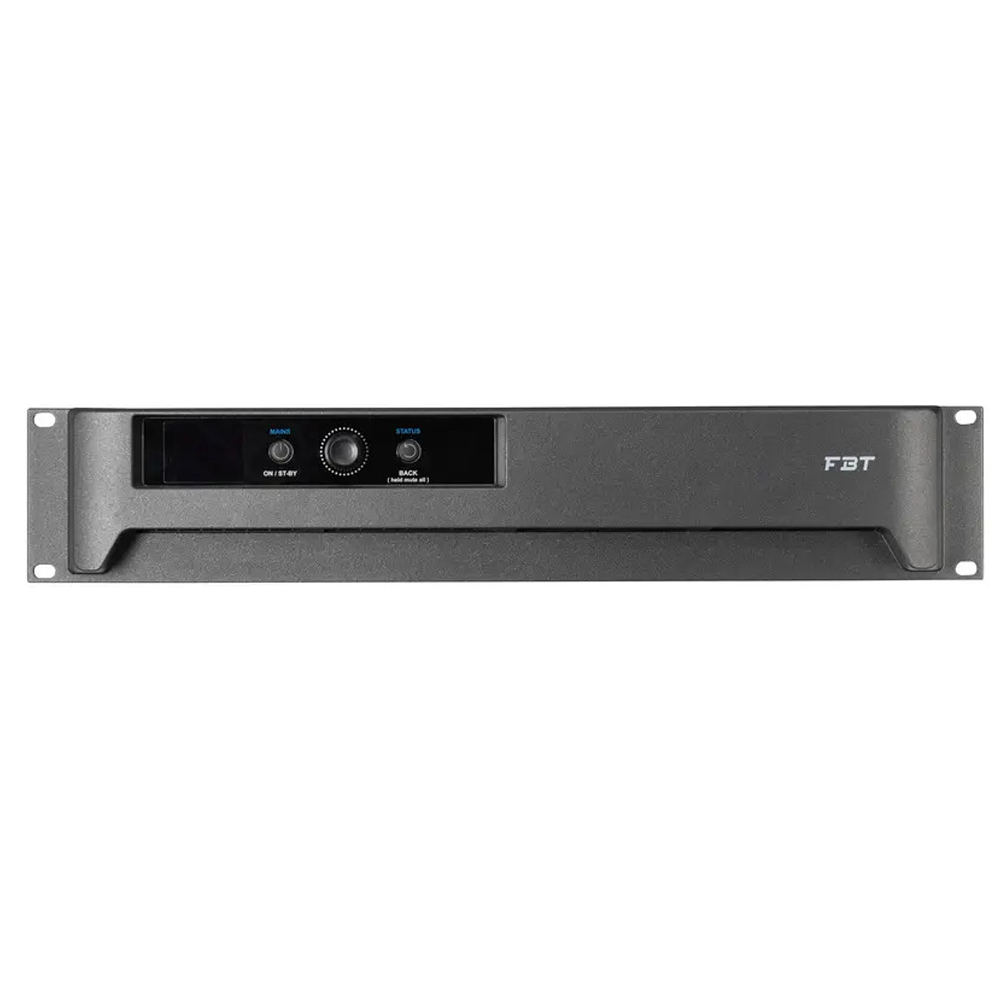

FBT MIURA4004I AMPLIFIER 4x 1000W 100V
- Supplier
- FBT
- SKU
- S1-455.130FB
- Availability
- Out of stock
The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.
- 4×1000 W at 4 Ohm – 4×900 W at 70V – 2×2000 W at 100V (BTL)
- Asymmetric power sharing with SE, Bridge, and Parallel modes
- Class D topology with PWM and ultra-low distortion (<0.05% THD+N)
- 4-channel Dante receiver (24bit, 48–96kHz) over TCP/IP
- Network control via EtherCON (TCP/IP – AES70 – INFINITO)
- AES3 digital audio I/O with link
- Auto-Standby and universal PSU with Power Factor Correction
- OLED display with encoder for local configuration
- Euroblock connectors, 8-channel GPIO
The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.
- 4×1000 W at 4 Ohm – 4×900 W at 70V – 2×2000 W at 100V (BTL)
- Asymmetric power sharing with SE, Bridge, and Parallel modes
- Class D topology with PWM and ultra-low distortion (<0.05% THD+N)
- 4-channel Dante receiver (24bit, 48–96kHz) over TCP/IP
- Network control via EtherCON (TCP/IP – AES70 – INFINITO)
- AES3 digital audio I/O with link
- Auto-Standby and universal PSU with Power Factor Correction
- OLED display with encoder for local configuration
- Euroblock connectors, 8-channel GPIO
From
R 0.00
Enquire about this product
Tell us what you need for FBT MIURA4004I AMPLIFIER 4x 1000W 100V. We will respond with availability, pricing, and next steps.
