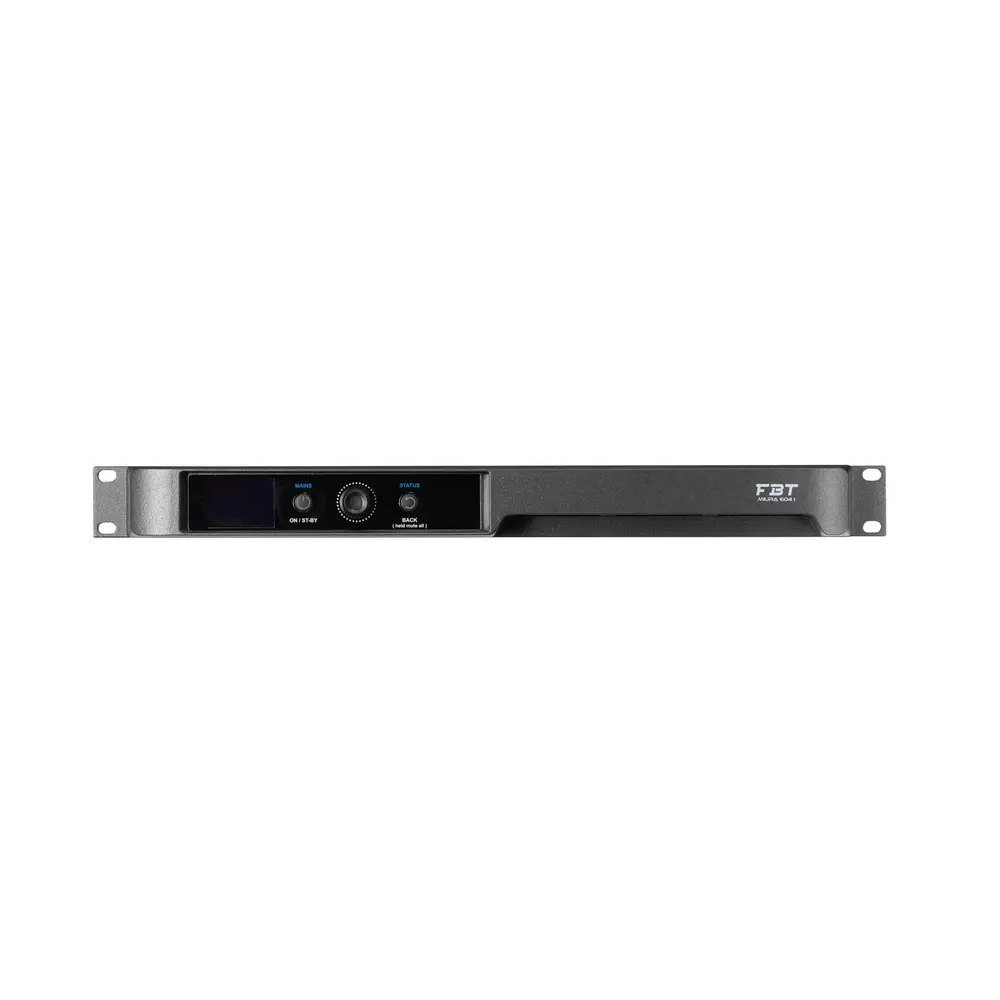

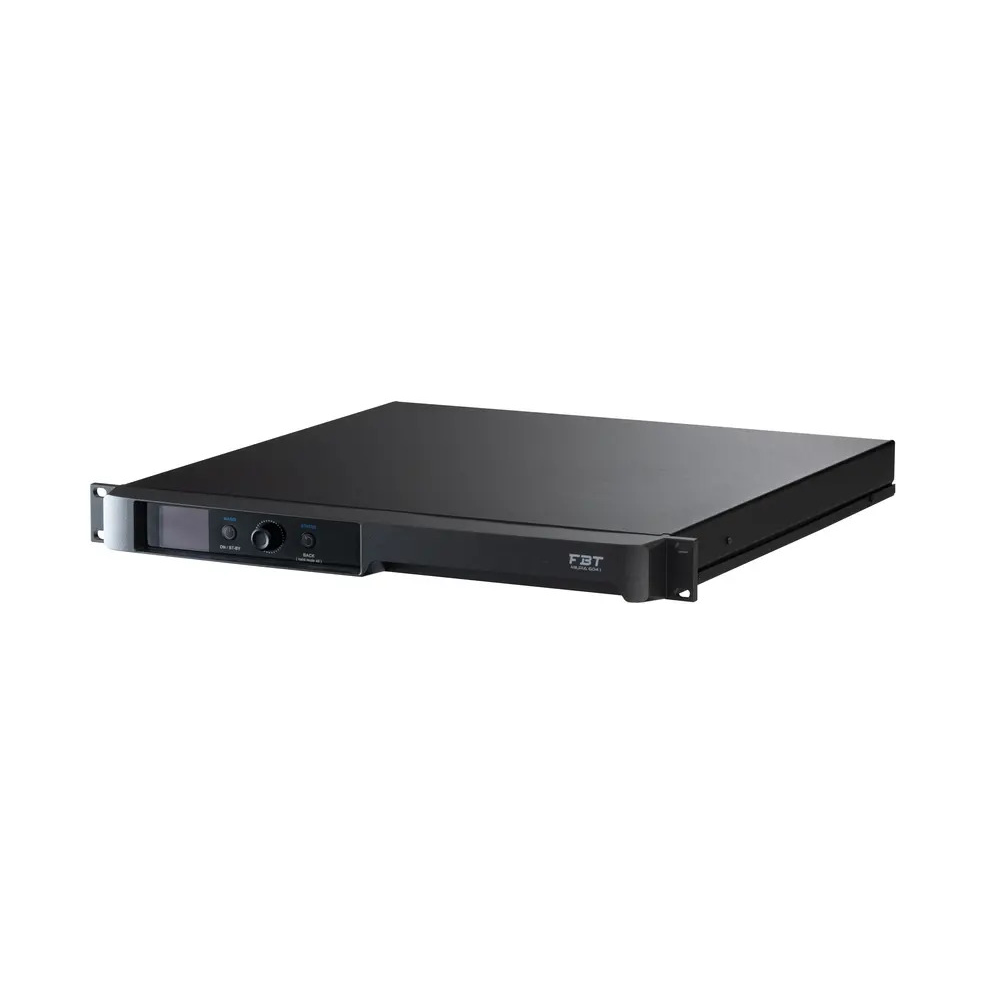

FBT MIURA604I AMPLIFIER 4x 160W 100V
- Supplier
- FBT
- SKU
- S1-455.120FB
- Availability
- Out of stock
MIURA 604I is a compact 1U, 4-channel Class D amplifier developed for installation applications requiring efficiency, flexibility, and low-profile integration. It delivers 4×150 W at 4–16 Ohm or 2×300 W at 70/100V in bridge mode, supporting both low-impedance and high-impedance systems with full asymmetric loading. Dante audio streaming (4 channels), TCP/IP network control (AES70), and AES3 digital audio I/O with link are all integrated, enabling complete system configuration via INFINITO software. The unit features a universal SMPS with Power Factor Correction, an Auto-Standby/Wake function, and a front OLED display for onboard control. Connections include Euroblock I/O, EtherCON ports, 8-channel GPIO, and an IEC 20A power inlet, ensuring safe installation and professional-grade integration.
- 4×150 W at 4–16 Ohm | 2×300 W at 70/100V (BTL)
- Class D PWM topology with ultra-low distortion
- Full asymmetric power distribution per channel
- Dante 4-channel audio receiver (24bit, 48–96kHz)
- TCP/IP AES70 control via INFINITO software
- AES3 digital audio input/output with link
- Universal PSU with PFC and Auto-Standby function

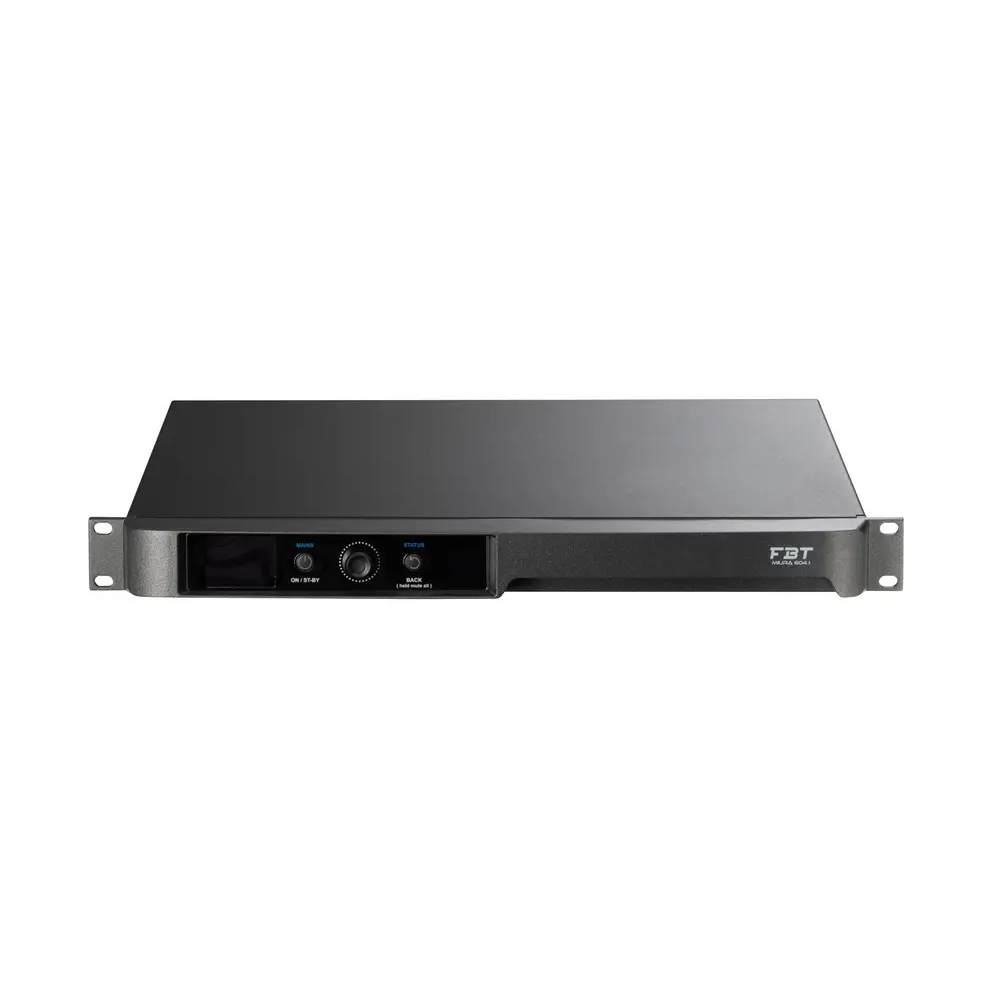

- OLED display with encoder for onboard configuration

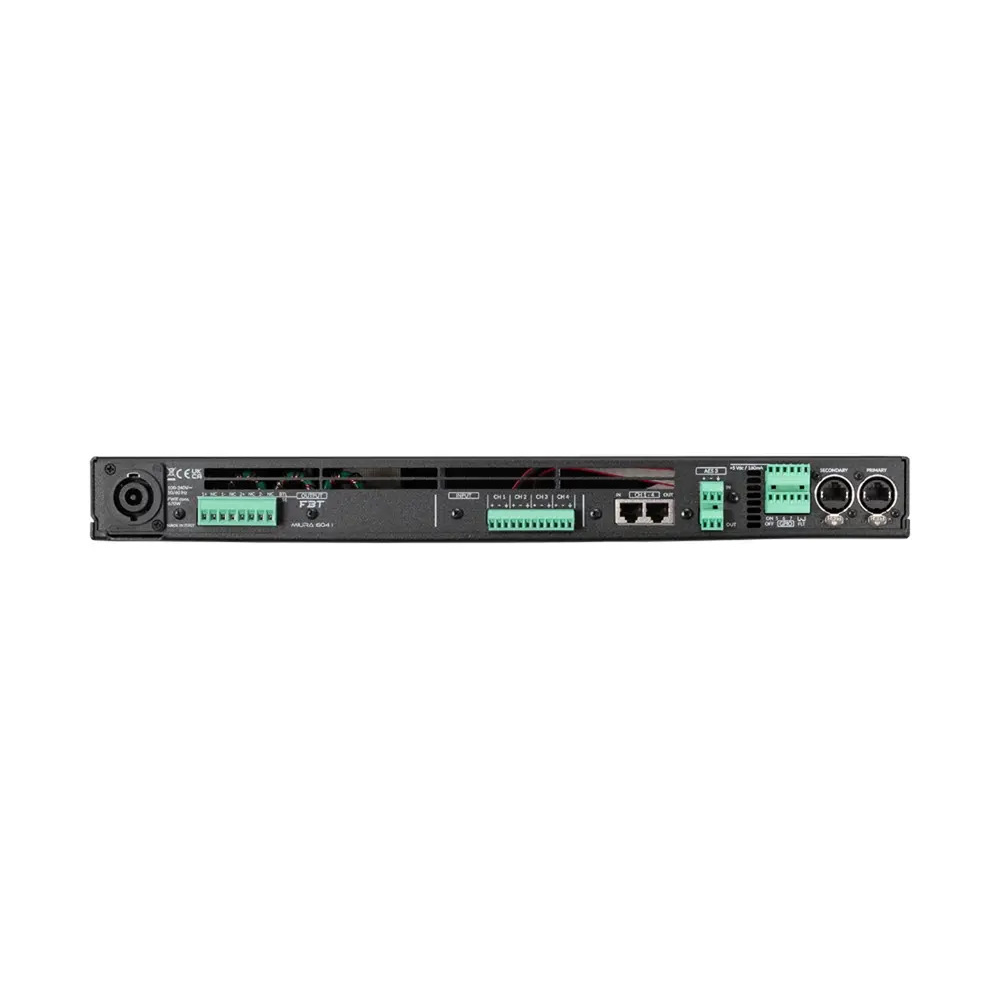

- EtherCON networking, 8 GPIO, Euroblock I/O
MIURA 604I is a compact 1U, 4-channel Class D amplifier developed for installation applications requiring efficiency, flexibility, and low-profile integration. It delivers 4×150 W at 4–16 Ohm or 2×300 W at 70/100V in bridge mode, supporting both low-impedance and high-impedance systems with full asymmetric loading. Dante audio streaming (4 channels), TCP/IP network control (AES70), and AES3 digital audio I/O with link are all integrated, enabling complete system configuration via INFINITO software. The unit features a universal SMPS with Power Factor Correction, an Auto-Standby/Wake function, and a front OLED display for onboard control. Connections include Euroblock I/O, EtherCON ports, 8-channel GPIO, and an IEC 20A power inlet, ensuring safe installation and professional-grade integration.
- 4×150 W at 4–16 Ohm | 2×300 W at 70/100V (BTL)
- Class D PWM topology with ultra-low distortion
- Full asymmetric power distribution per channel
- Dante 4-channel audio receiver (24bit, 48–96kHz)
- TCP/IP AES70 control via INFINITO software
- AES3 digital audio input/output with link
- Universal PSU with PFC and Auto-Standby function
- OLED display with encoder for onboard configuration
- EtherCON networking, 8 GPIO, Euroblock I/O
From
R 0.00
Enquire about this product
Tell us what you need for FBT MIURA604I AMPLIFIER 4x 160W 100V. We will respond with availability, pricing, and next steps.
