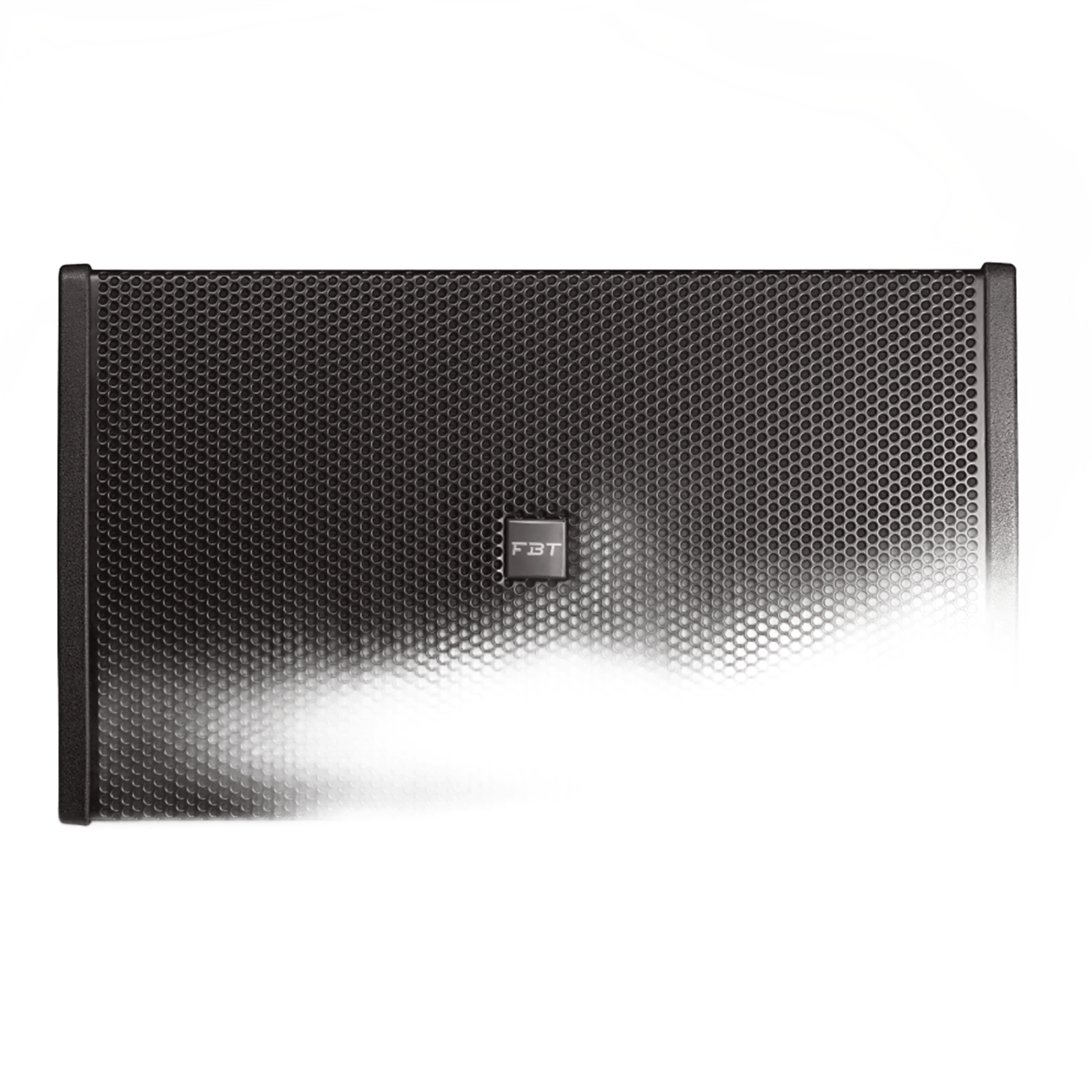

FBT VHA406A LINE Array Speaker 6.5INCH Black 900W

The FBT HORIZON VHA 406A is a compact, self-powered line array element. The FBT HORIZON VHA 406A features 4 x 6,5″ woofers plus a 1,4″ neodymium compression driver with a 2,5″ voice coil for a frequency response that extends from 65Hz to 20kHz. The Class D amplifier module is constructed in die-cast aluminum with natural convection to deliver 600W for the LF section and 300W for the HF, with switching power supply. The waveguide, designed specifically for this product and optimized with BEM (boundary element method), has a horizontal dispersion of 90°and vertical of 20°. The FBT HORIZON VHA 406A offers the possibility to choose between 8 pre-definied algorithms; the controls and connections panel features: Neutrik powercon connector for power supply with input and output, XLR in/link connectors, level control, HF level, preset selector, HP filter switch, two status led. The construction materials of The FBT HORIZON VHA406Ameet the highest professional standards to ensure maximum reliability; the cabinet is in birch plywood of 0,47″ with anti-scratch varnish and is provided with two handles with rubber inserts and integrated mechanics to join the speakers and angle them from 5° to 20° in 5° steps. The FBT HORIZON VHA406A also boats integrated quickrelease anchor points that facilitate the creation of horizontal and vertical arrays using the dedicated flybar. The FBT HORIZON VHA 406A provides a wide range of accessories for suspension, pole-mounting or ground-stacking. The front of the loudspeaker is covered with a powder coated perforated steel grille. Available a rain cover that protects the electronic parts from the rain.

• Bi-amplified 2-way line array
• 4 x 165mm (6.5 ") custom woofers with 38mm (1.5") coil
• Neodymium B&C compression HF driver with 36mm (1.4") spout and 64mm (2.5") coil
• Large format FBT waveguide with 90° (H) x 20° (V) dispersion
• Frequency response from 65Hz to 20KHz
• Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
• DSP processor with 8 equalization presets

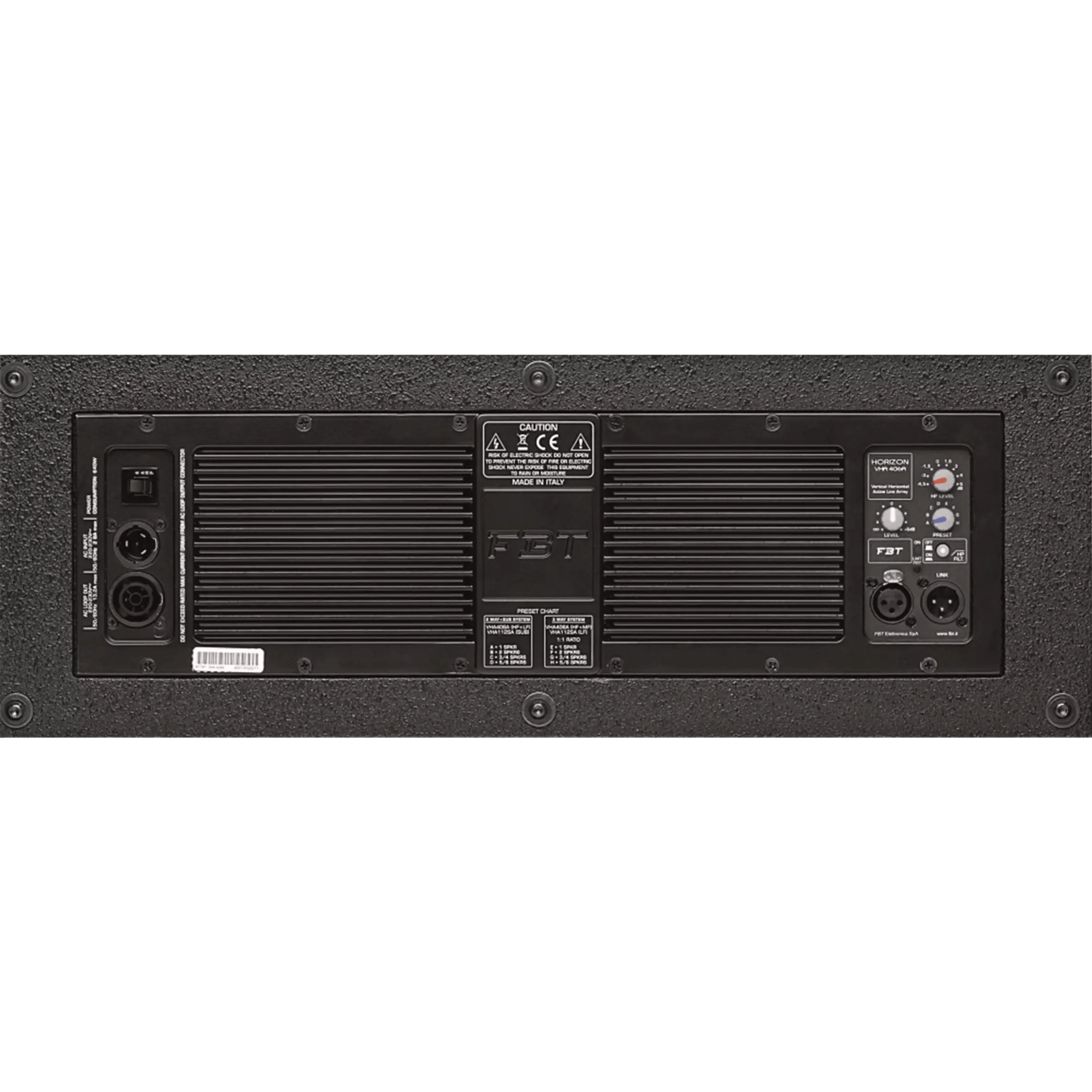

• Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
• Neutrik PowerCON TRUE1 IN and LINK power connectors
• Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish

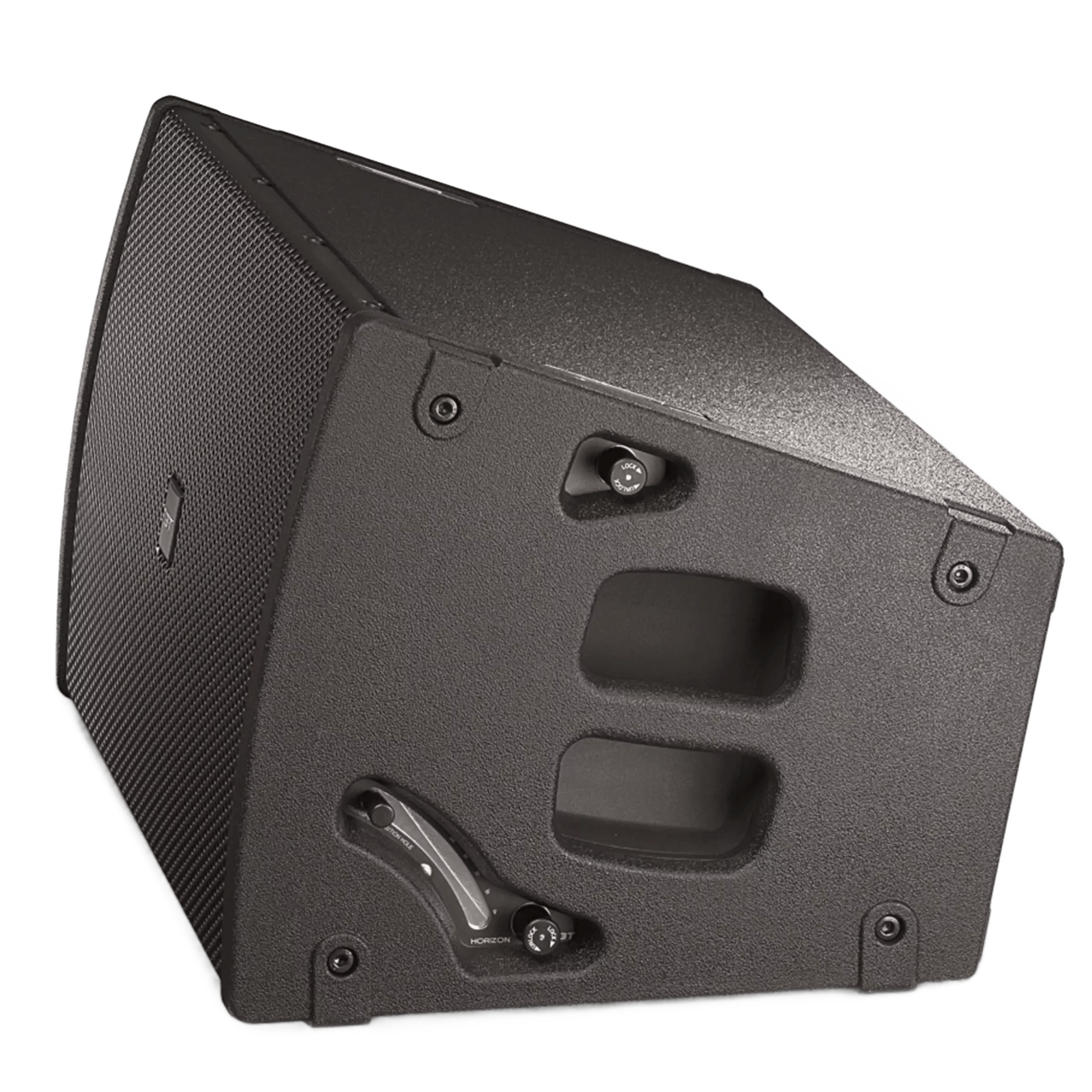

• Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches

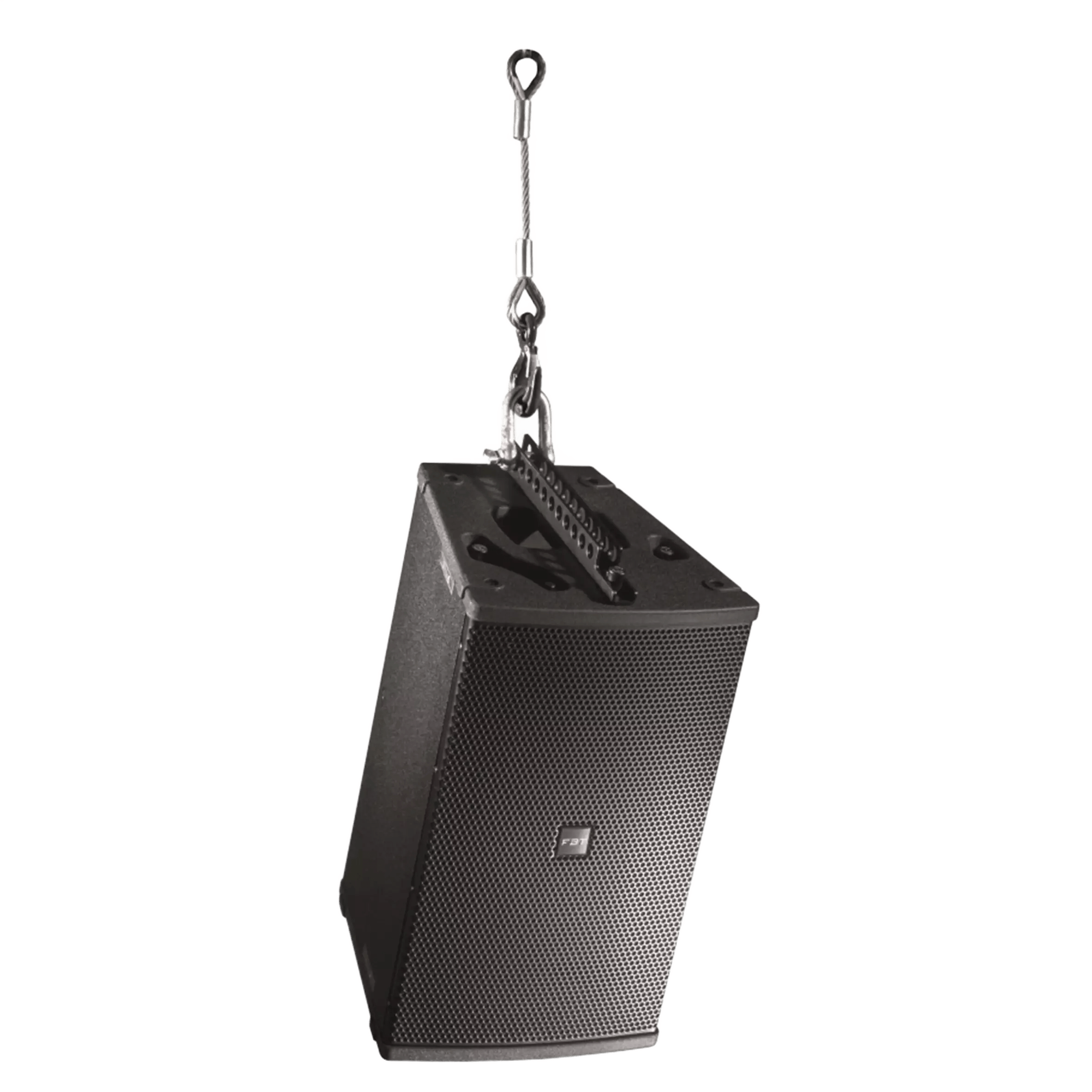

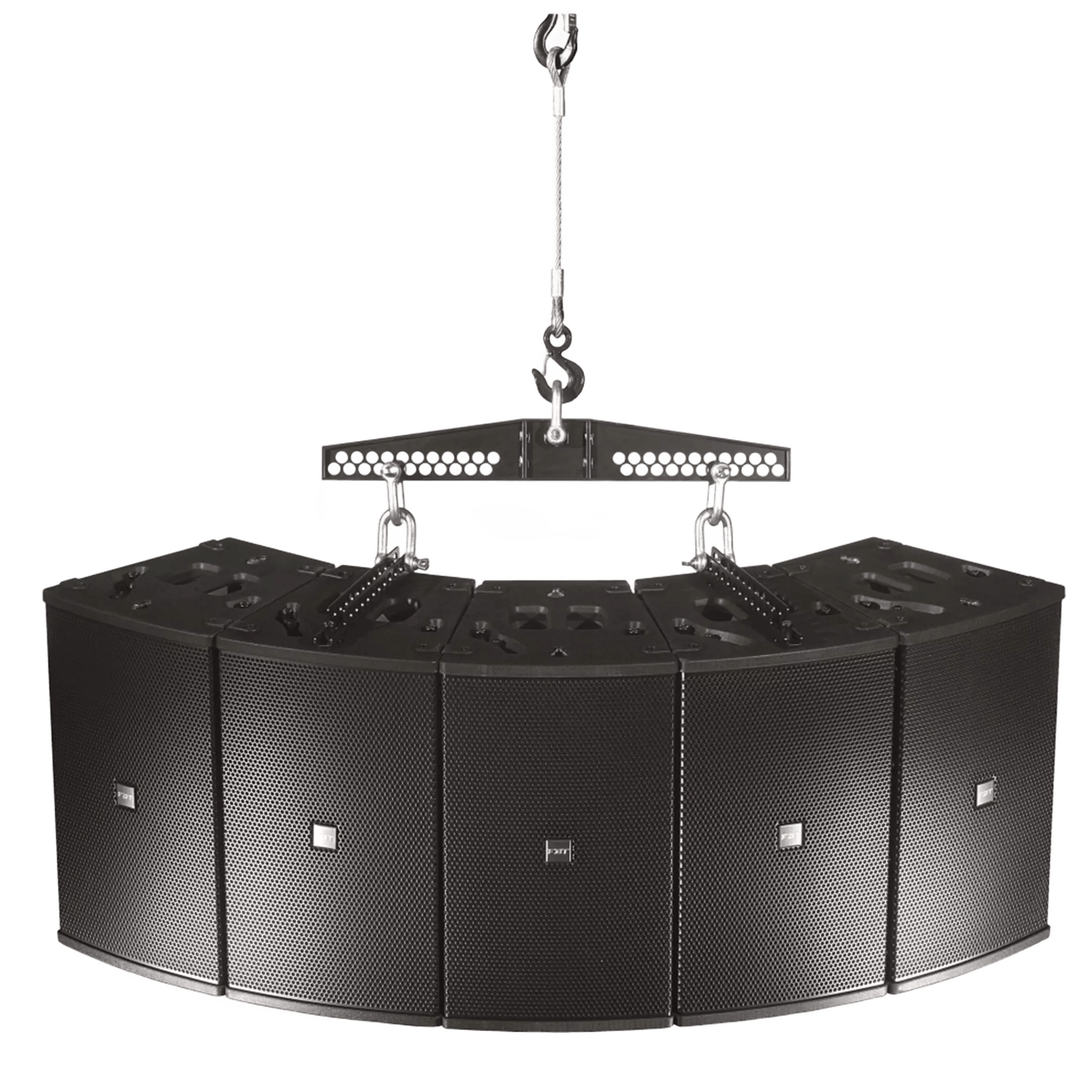

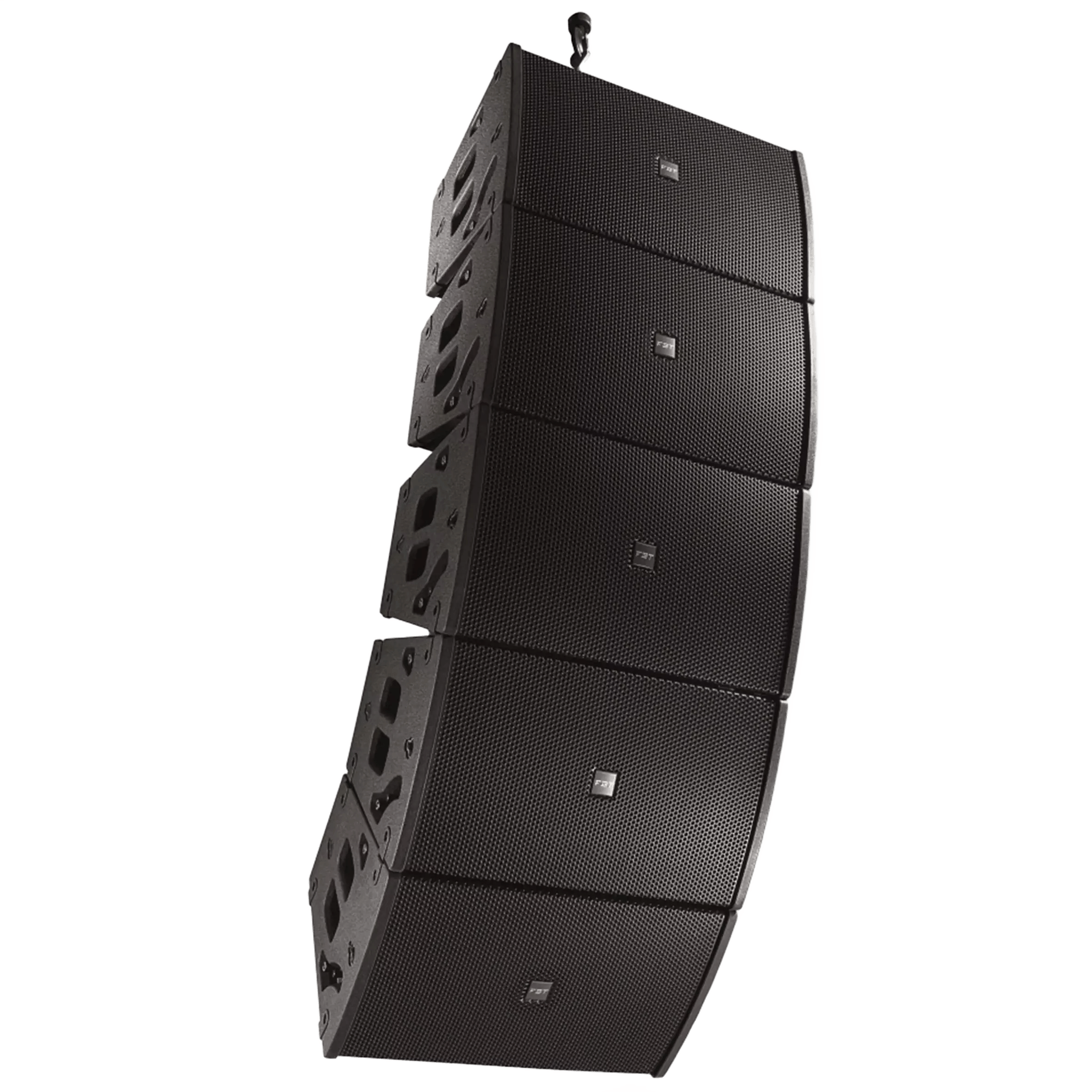

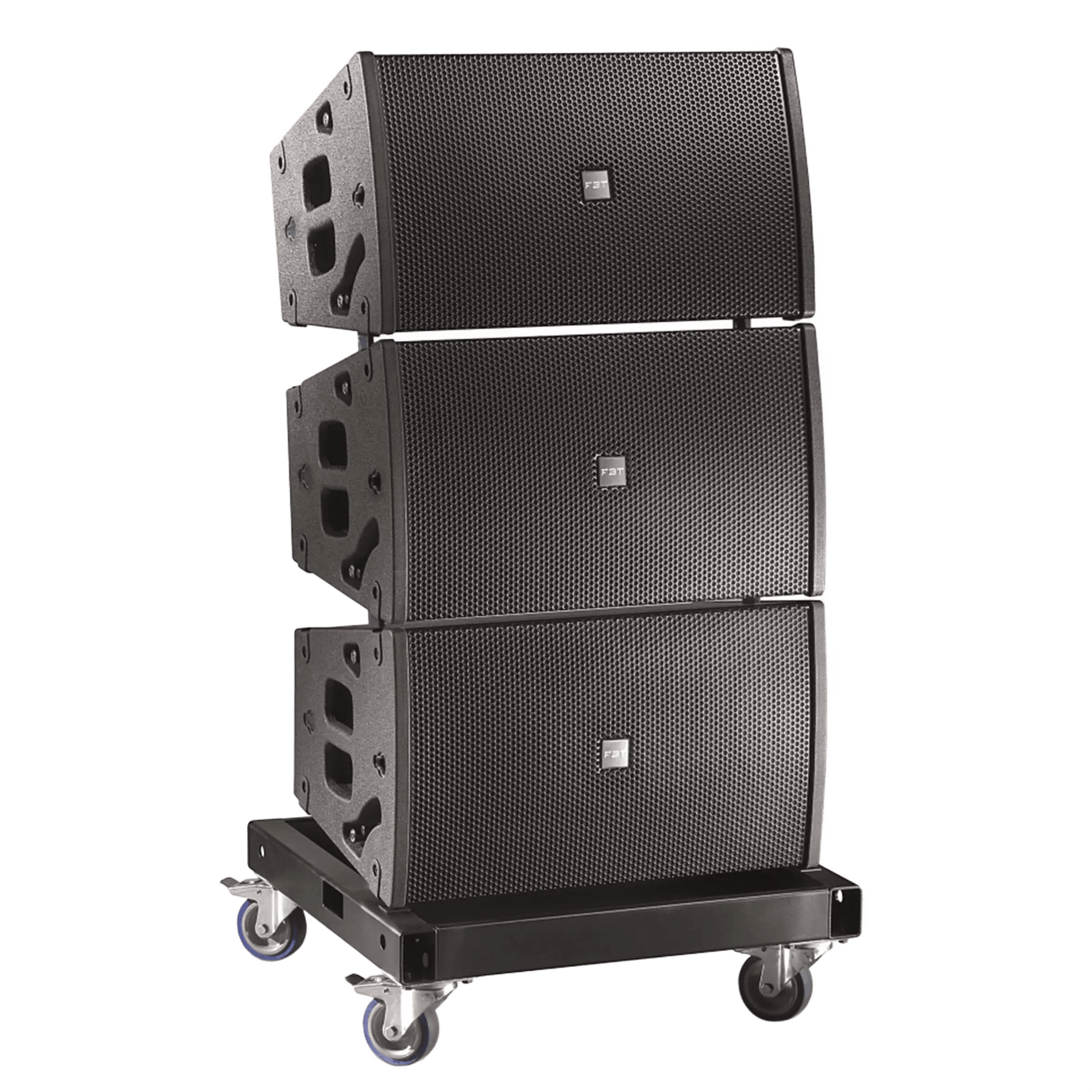

• Side suspension hardware with integrated setting pins, inclination between adjacent cabinets from 5° to 20° in 5° steps. Possibility of vertical and horizontal installation through dedicated flybars

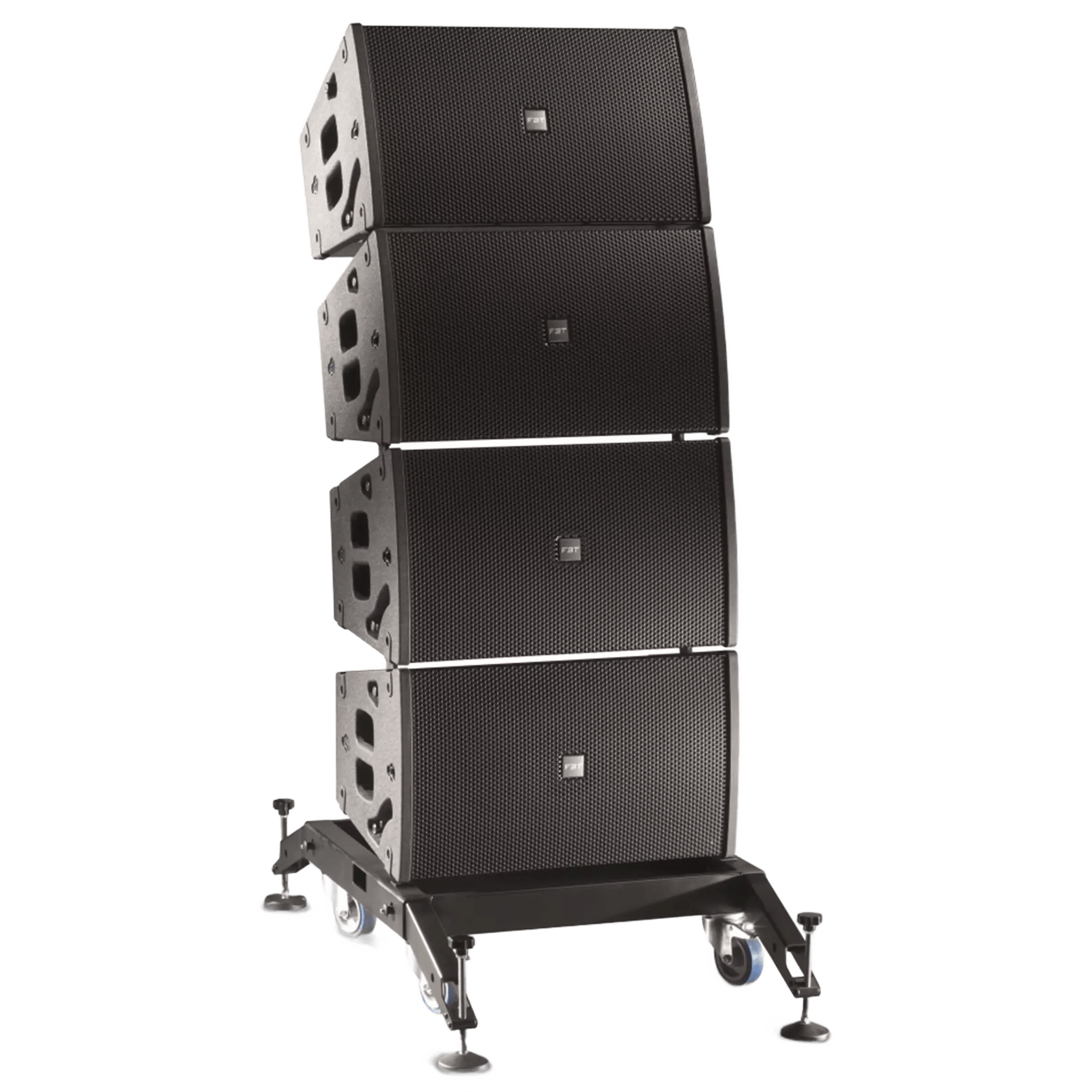

• Wide range of accessories for suspension, pole-mounting or ground-stacking

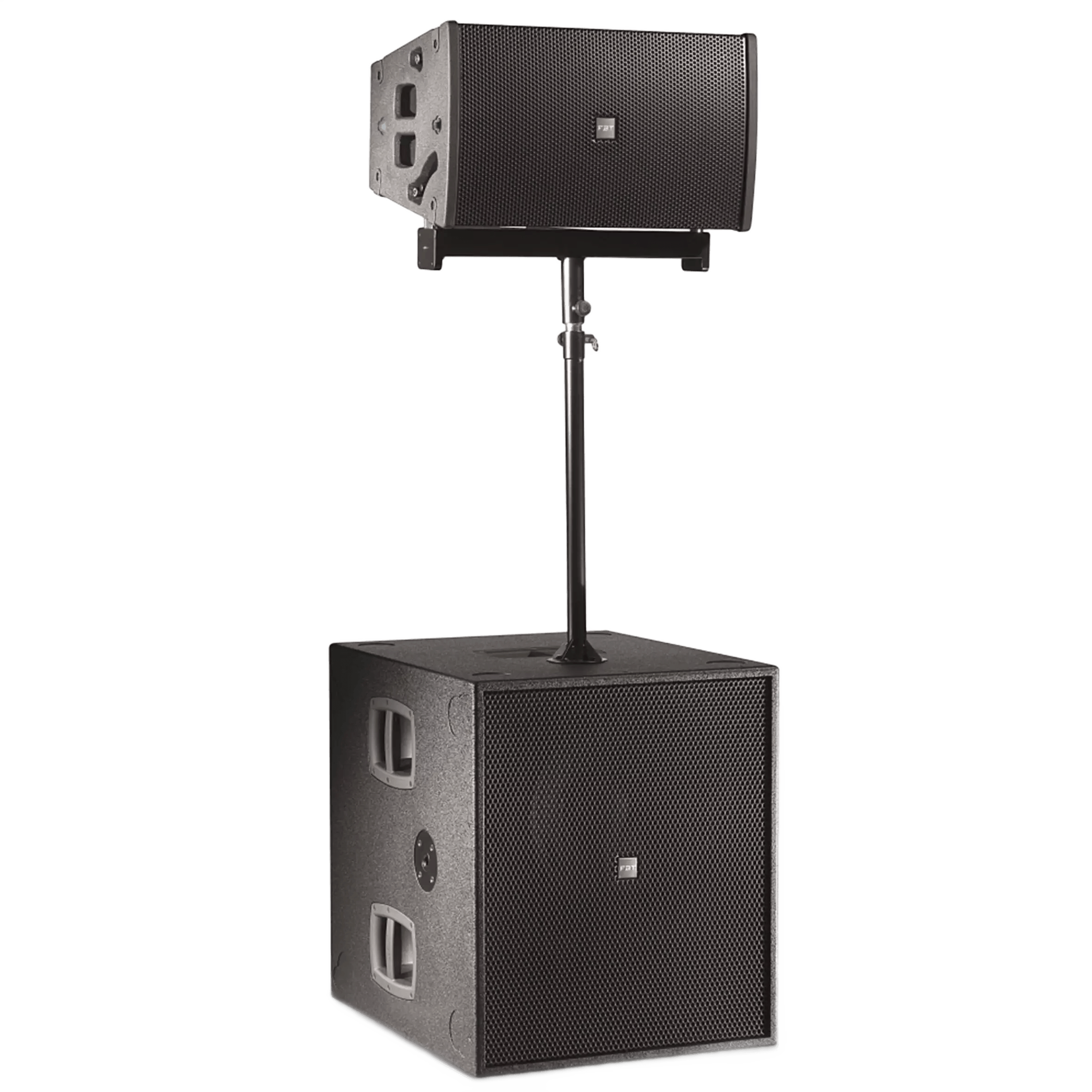

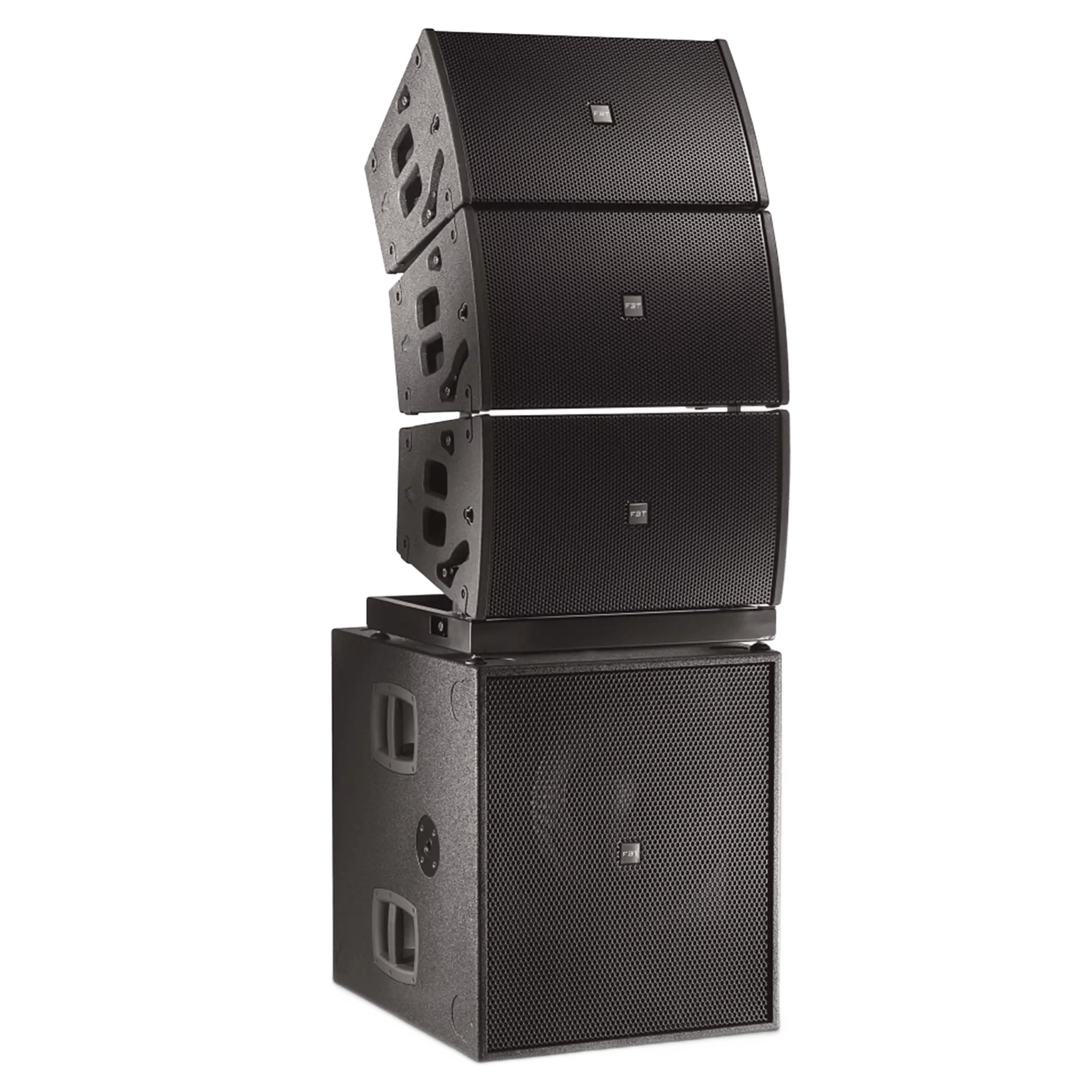

• Ideal for both live applications, assisted by one or both subs of the VHA range, and for fixed installations
