FBT VERTUSCS1000 Column Speaker System Active Black 400W

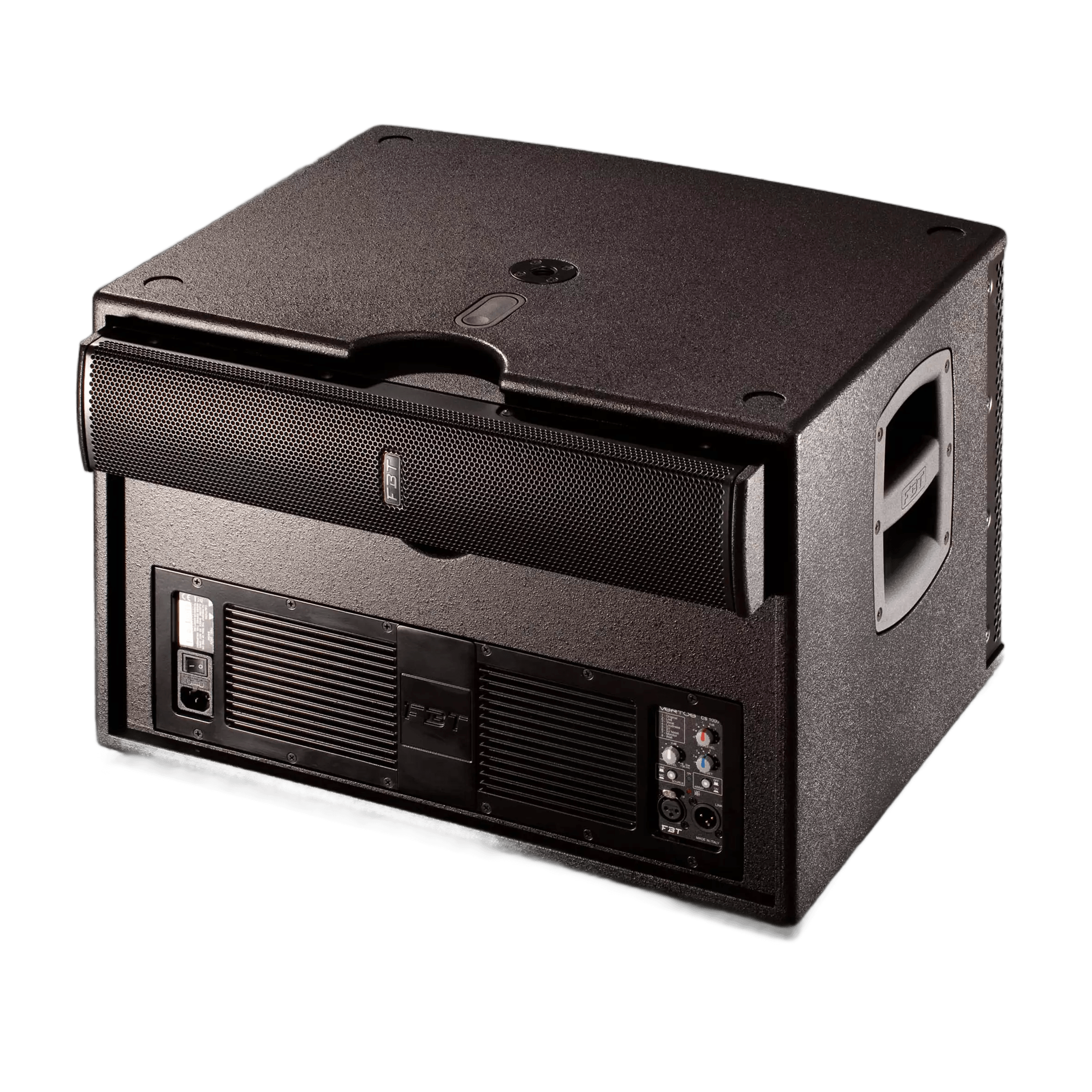

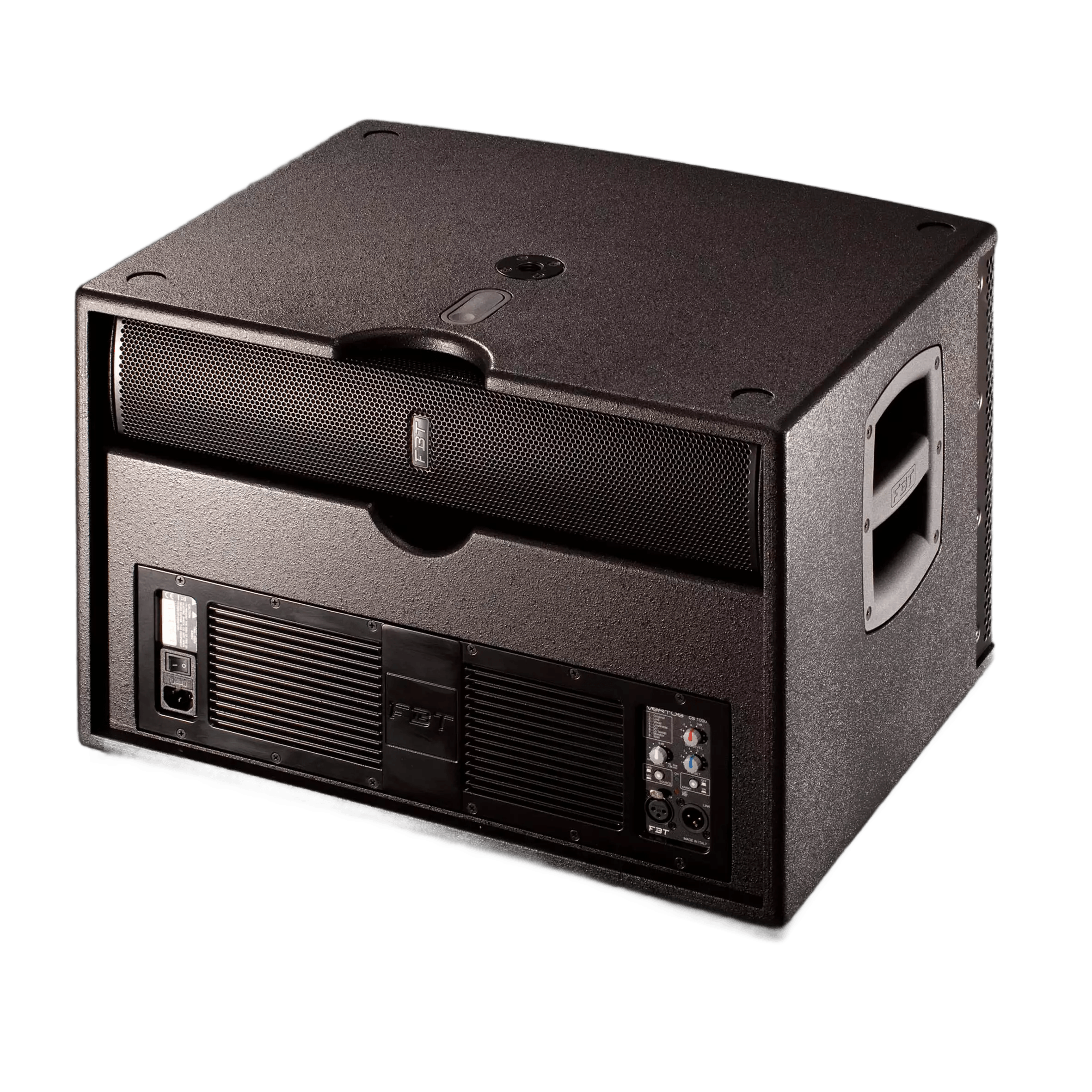

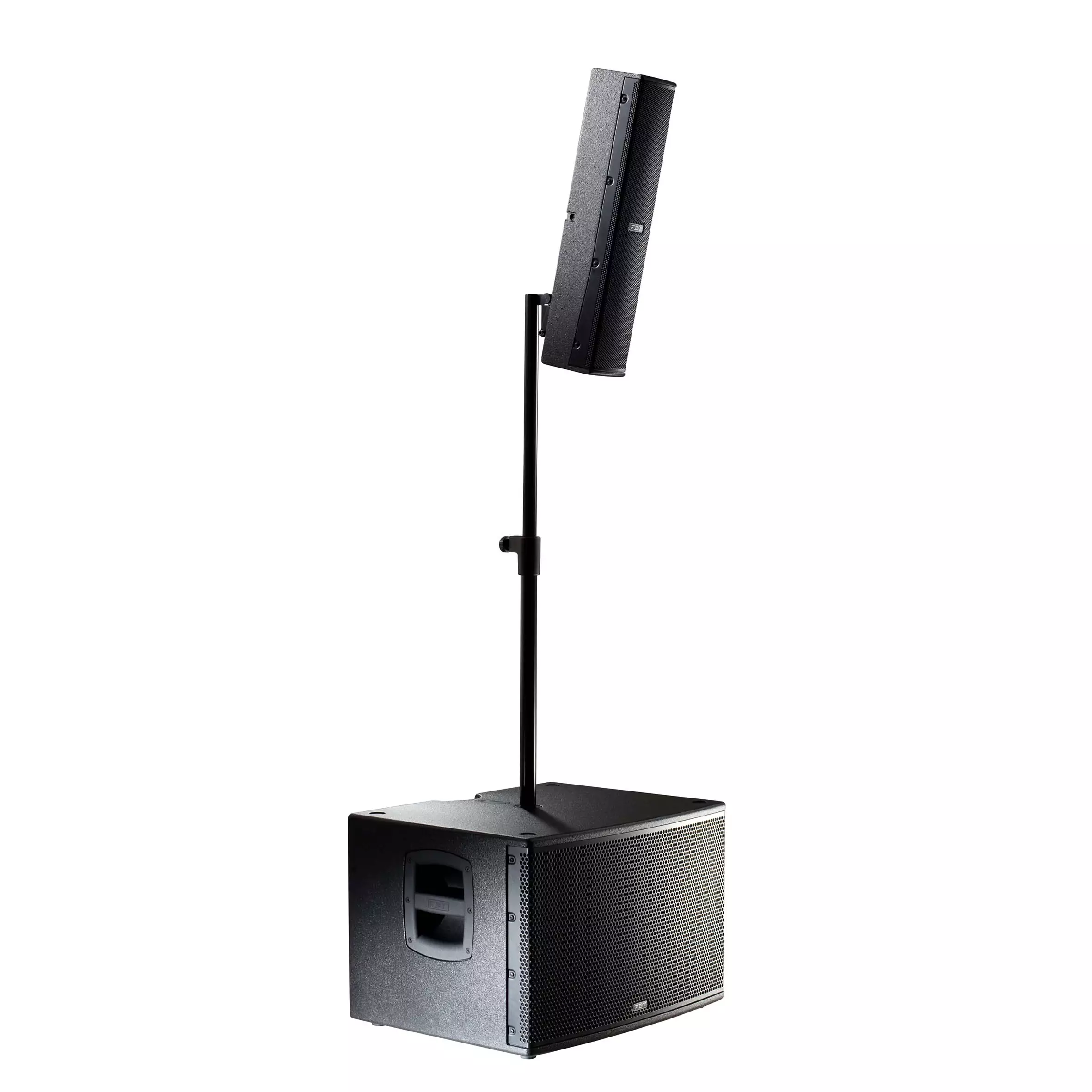

Created as a no-compromise choice for both live performers and installers, the VERTUS CS1000 compact line array combines maximum performance with a modular, scalable approach. Its lightweight but sturdy construction blended with FBT’s distinctive engineering and elegance has delivered a system that can be deployed on stage within minutes, or discreetly integrated into the most delicate of decors to provide high-quality sound and controlled directivity. A bi-amplified design, the system comprises a long excursion 12” bass reflex subwoofer and a passive mounted satellite, linked via a Neutrik SPEAKON connector and equipped with six full-range neodymium 3” drivers. Onboard the subwoofer is a Class-D, two channel amplifier, complete with switch-mode power supply, delivering 600W RMS to the subwoofer and 400W RMS to the satellite, both of which are housed in birch plywood enclosures. For ease of use, a storage compartment is provided within the subwoofer enclosure to securely house both the satellite speaker and its supplied mounting pole for storage and transport. The pole consists of two sections, one of whom is telescopic, so as to allow adjusting satellite height with respect to the subwoofer, to ensure precise coverage in every venue. No listener is left untouched by the VERTUS CS1000 – the slim proportions of the satellite facilitate a wide horizontal dispersion of 110°, while the precision placement of the six 3” drivers to form a J-array creates a vertical dispersion of 30° (+10° / -20°). Other features ensure ease of use and a rugged build quality. The subwoofer is equipped with aluminum handles complete with a rubber insert to guarantee a comfortable grip – transporting the entire system, including the subwoofer, satellite, mounting pole, joint and all cables, is both convenient and comfortable. The fanless amplifier module is protected by diecast aluminum, while onboard DSP offers a choice of eight dedicated presets, each one shaped by FBT’s long experience in creating proprietary algorithms to suit every requirement. The VERTUS CS1000 is compact in dimension but big on sound, while a selectable high-pass filter ensures optimum reproduction. And as your requirements grow, the VERTUS CS1000 compact line array will grow with you – simply combine four systems in a two per-side stereo configuration to achieve a remarkable 8.000W peak.

• 2-way speaker system

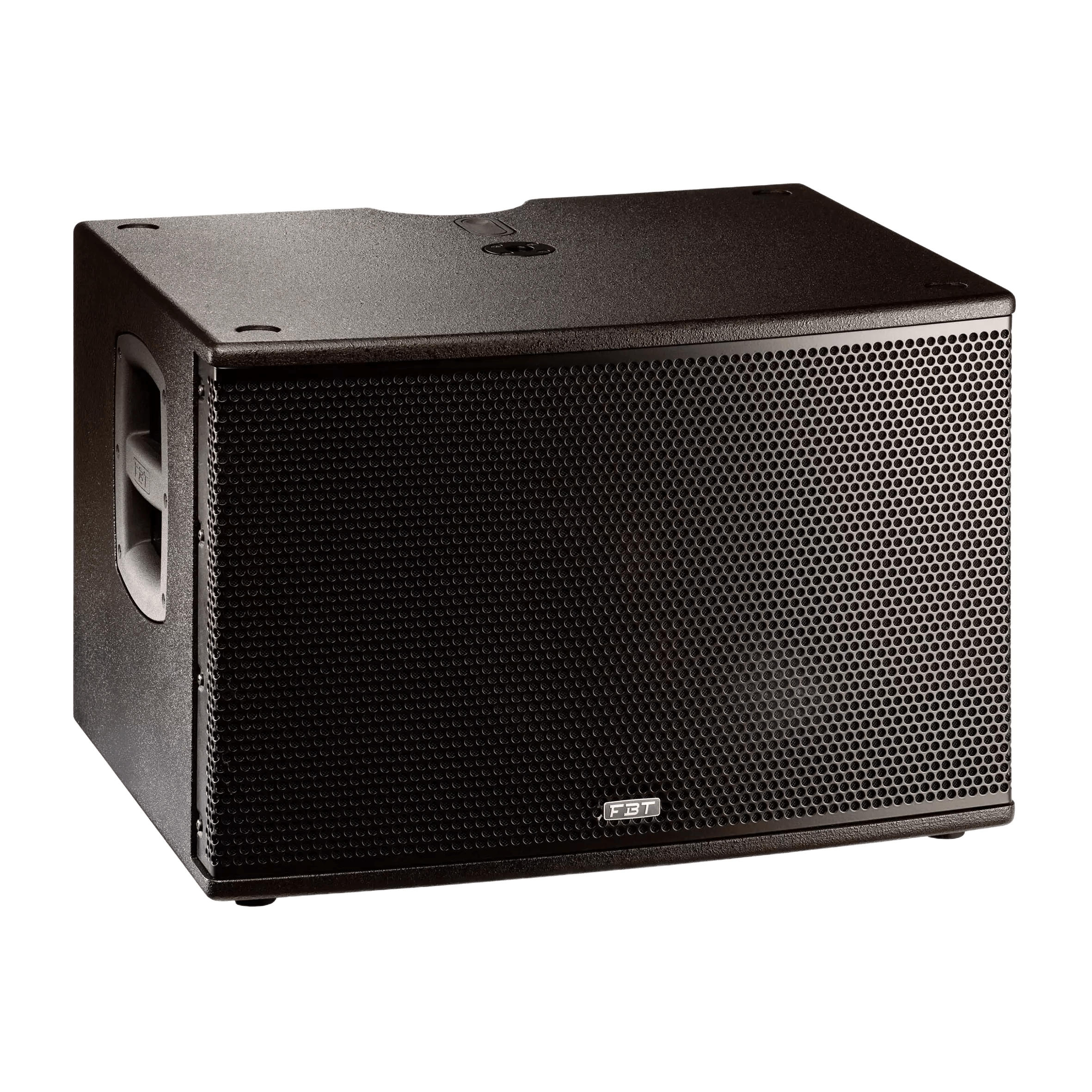

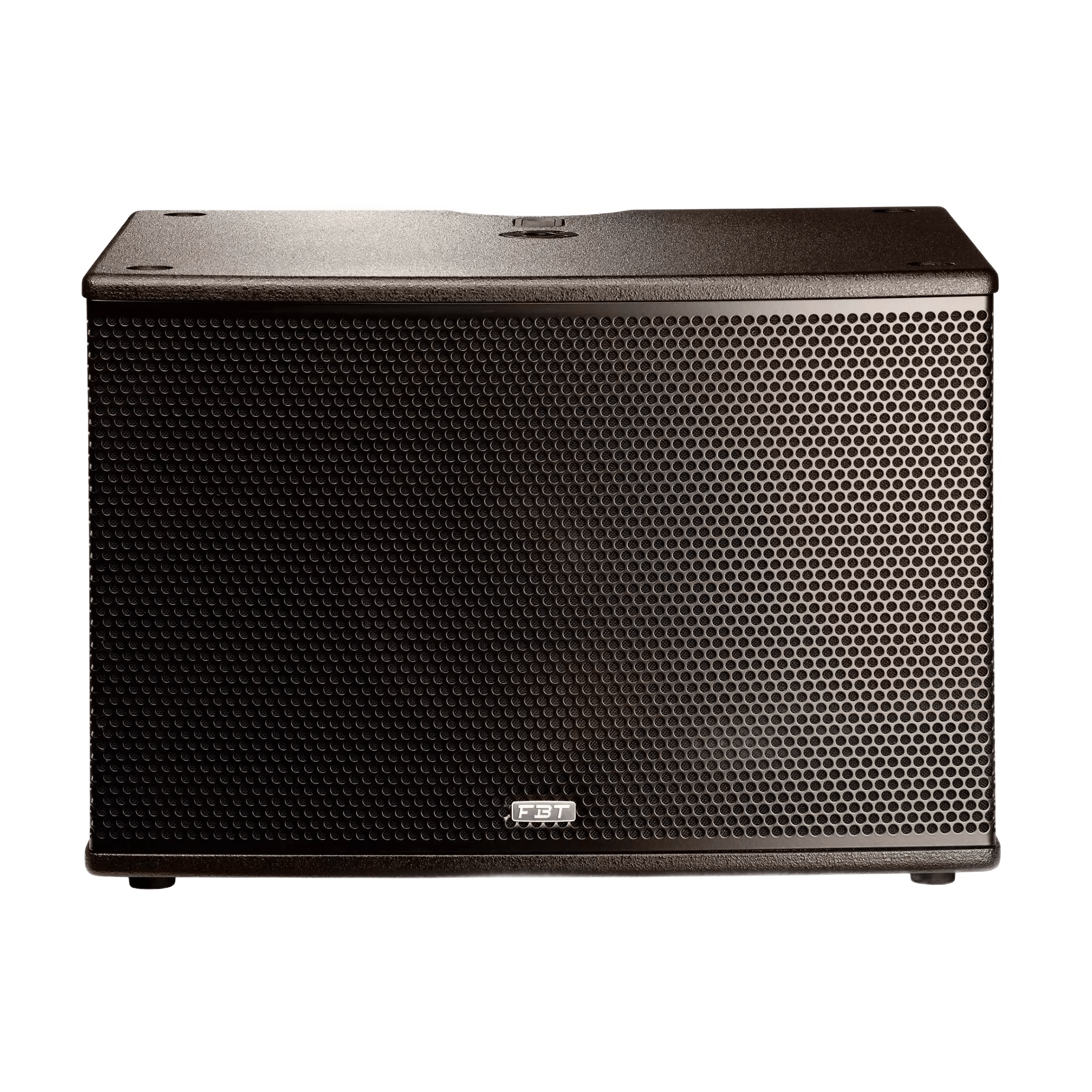

• Subwoofer with a custom 12” (320mm) long excursion speaker with a 2.5” (64mm) voice coil

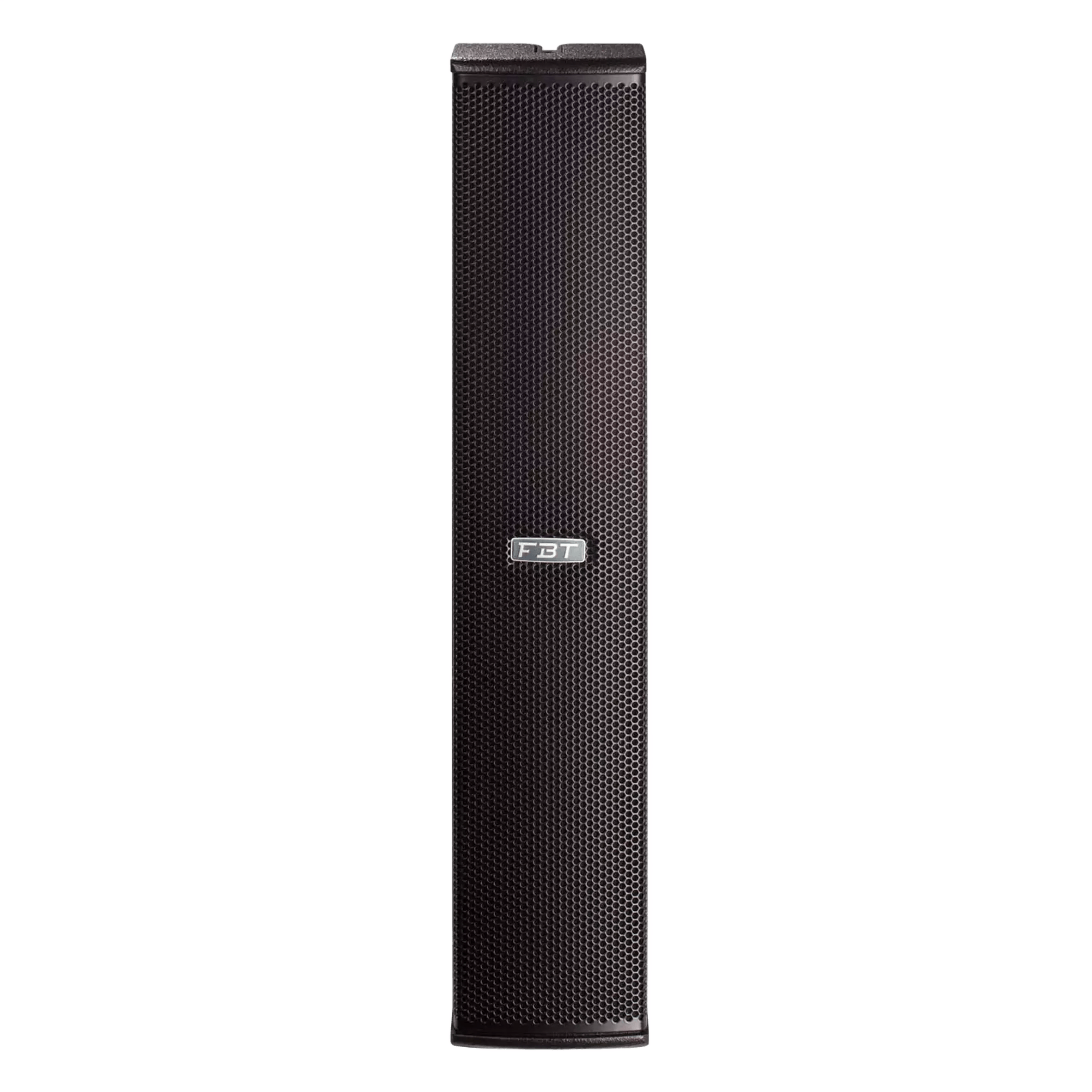

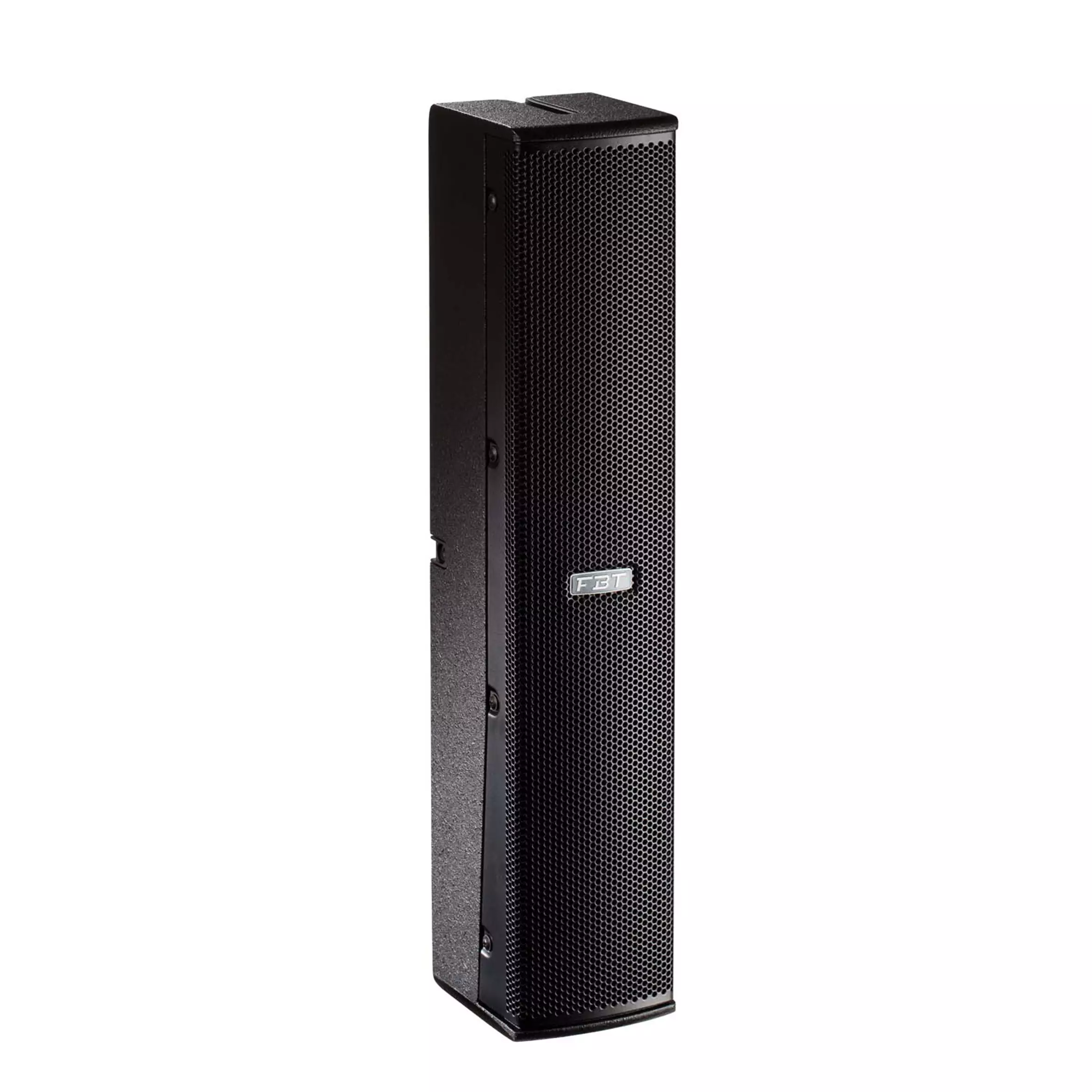

• 6 x full-range, 3” (70mm) neodymium high efficiency custom woofers with 0.75” (20mm) voice coils
• Frequency response of 40Hz to 20KHz
• Onboard Class-D, switch-mode amplifier delivering 600Wrms + 400Wrms for LF and HF respectively
• Built-in DSP with eight presets to suit every application
• Variable volume between -4.5 / + 5 dB in 8 steps
• Control Panel with master volume, presets, satellite volume, HPF, and LED status
• Input and link via XLR and Neutrik SPEAKON for satellite connection
• Dispersion 110 ° (H) x 30 ° (V)
