FBT J12A Active Speaker

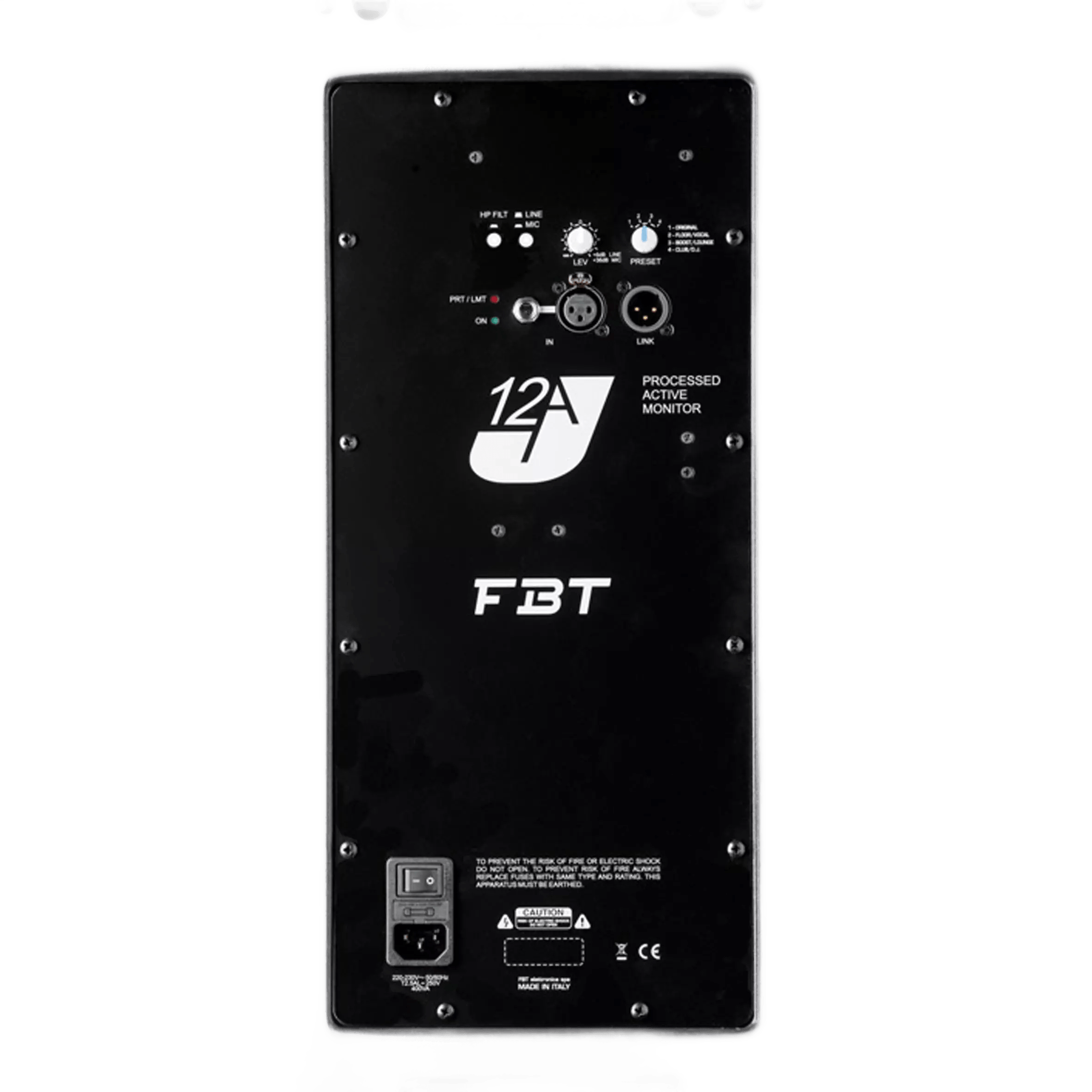

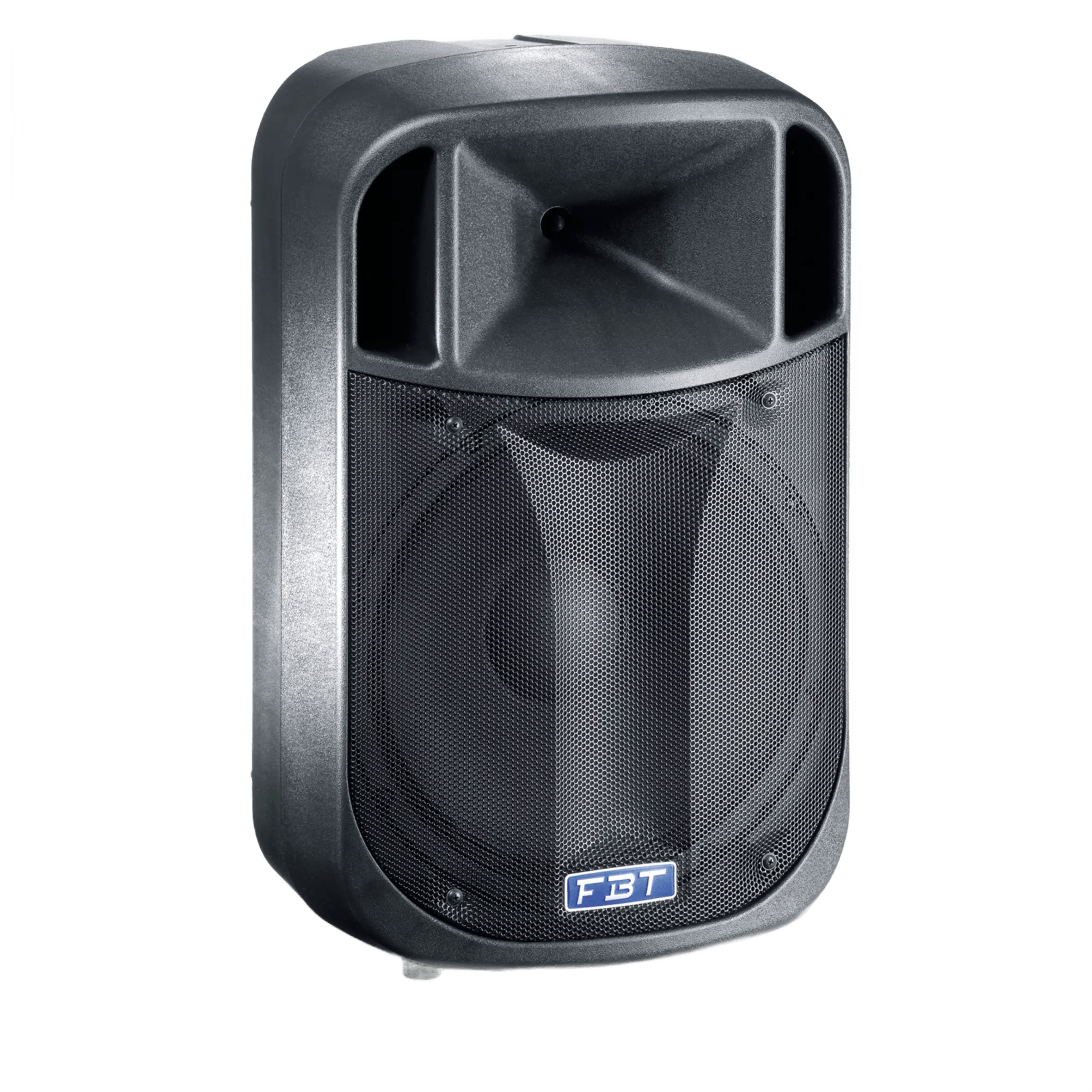

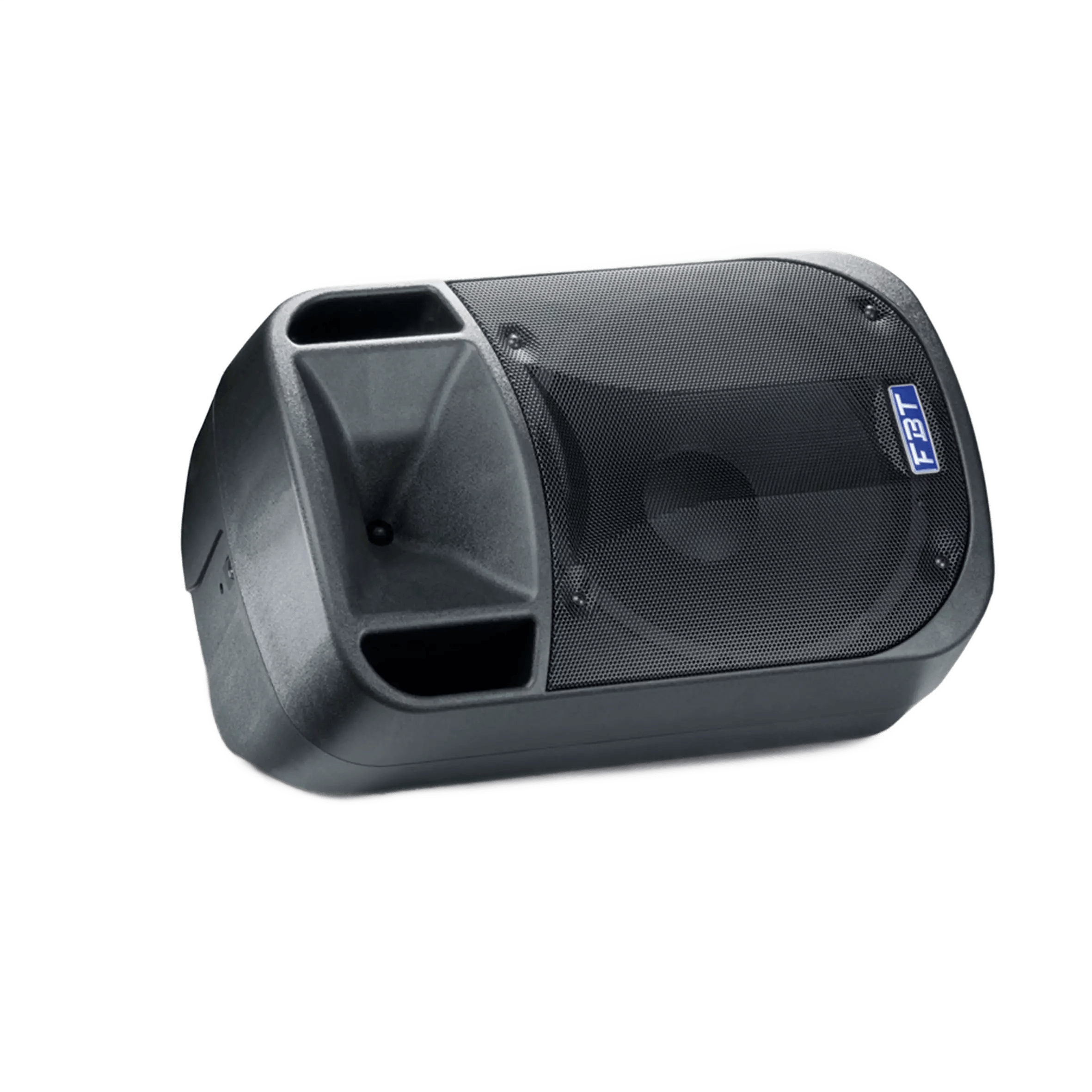

The FBT J12Aseries speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBTJ12Aseries speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBTJ12Acabinet also allows use as a powered floor stage monitor.The FBTJ12Ais of two way design incorporating an 12″ low frequency woofer and 2″ HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 2kHz. With a frequency range of 50Hz – 20kHz the FBTJ12Aspeakers provide high fidelity sound for both speech and music applications with a maximum SPL of 128dB. A front face steel grille protects the speaker from external damage. The bi-amplified FBT J12A active speaker feature a 250W RMS low frequency amp and a 50W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, floor/vocal, boost/lounge, club/dj)) led power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out . The two M10 fly points built into the cabinet along with the optional mounting brackets allow the FBT J12Aspeaker to be surface mounted on walls or ceilings. Astandard 1,38″ speaker stand socket allows the FBTJ12Ato be mounted on speaker stand.

• 320mm (12’’) custom woofer with improved efficiency and linearity
• 350Wrms class D amplifier for LF and 100Wrms for HF
• High efficiency switch mode power supply
• On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
• 4 DSP preset for maximum acoustical flexibility
• V38 SPEAKER COVER FOR J15/12 (186.140FB)
