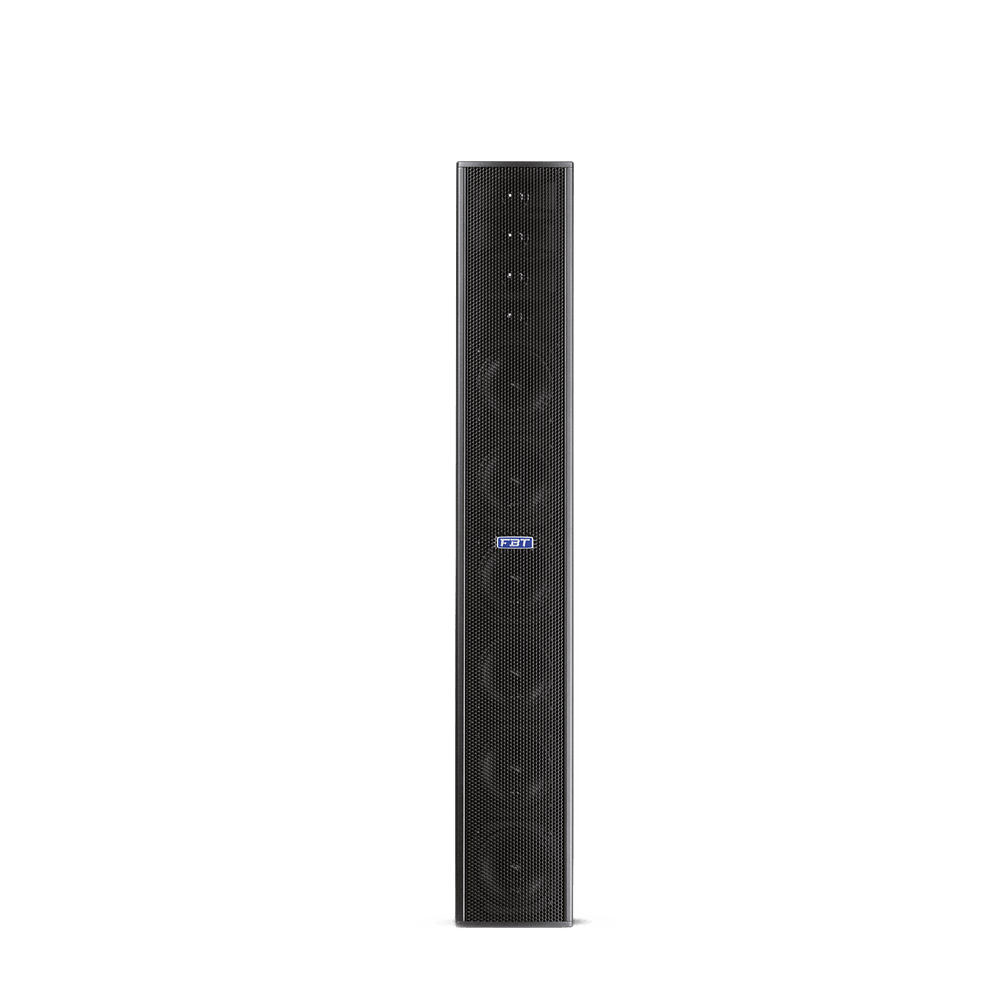

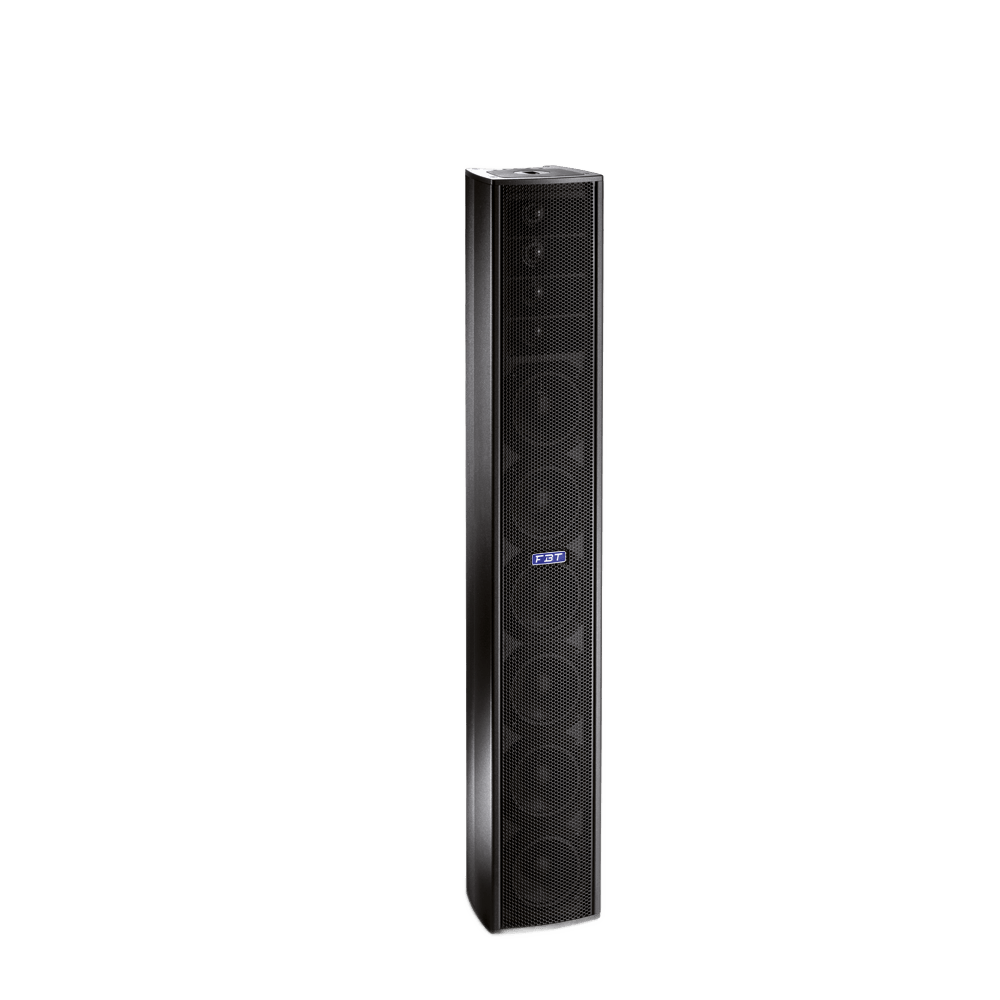

FBT – VERTUSCLA604A ACTIVE COLUMN LINE ARRAY 6x 4in + 4X1. 400W + 100W RMS

The FBT VERTUS CLA 604A two-way bi-amplified speaker system incorporates 6 x 4” custom woofer with 1” voice coil and 4 x 1″ neodymium dome tweeter on waveguide. FBT VERTUS CLA604A The internal Class D amplification, 400W for woofers, 100W for tweeters and DSP processor with 4 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA604A shall meet the following performance criteria: frequency response of 130Hz to 20kHz, maximum SPL of 125dB. The FBT VERTUS CLA604A provides a DSP with 4 EQ presets. The feature an extruded aluminum construction and the front shall be protected by a heavy duty metal grille. The control panel provides volume, preset, HP filter, sources switch, 3 status led ( on, peak, prt/limit ), XLR input and Neutrik Powercon supply input at the lower part of the column and XLR link and Neutrik Powercon loop out at the higher part. Superior as well as inferior latching system, enables the extension of the lenght of the line array adding CLA 604Amodules for a greater modularity of the system and possibility to angle the columns of ±30° on the horizontal plane. The rapid latching system with pins allows for the expansion of the system, doubling-up CLA 208 SA modules to form a unified column with an absolute and coherent source integration

• 2-way bi-amplified Line Array Column
• 6 x 4″ (100mm) custom woofer with 1″ (25 mm) voice coil
• 4 x 1″ (25mm) neodymium dome tweeter on waveguide
• 130Hz to 20KHz frequency response
• Class D 400Wrms amplifier for LF and 100Wrms for HF with switch mode power supply
• DSP processor with 4 available equalization presets
• Control panel with volume, presets, HP filter, Mic-Line, status LED

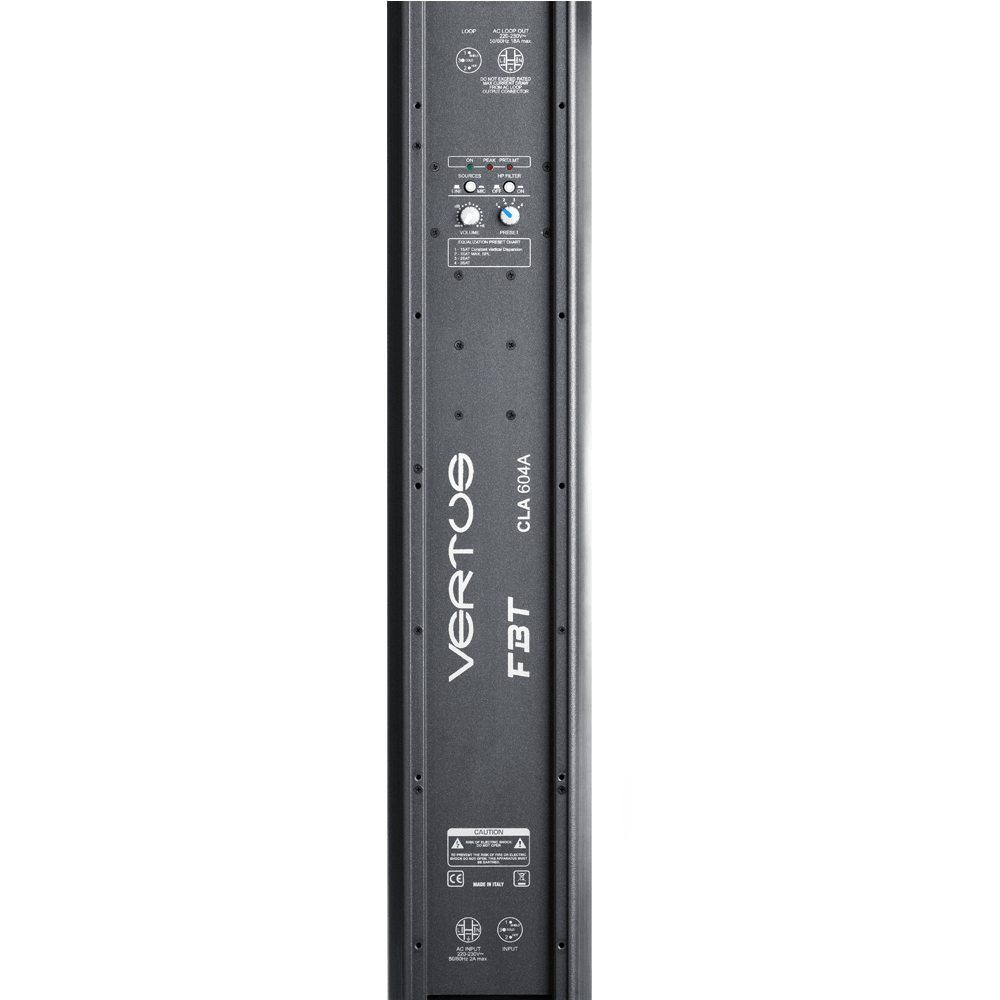

• XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCONN loop output at the higher part, in order to hide each connection cable
• 100°H x 20°V dispersion
• Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system
• Possibility to angle the columns of +/- 30° on a horizontal plane

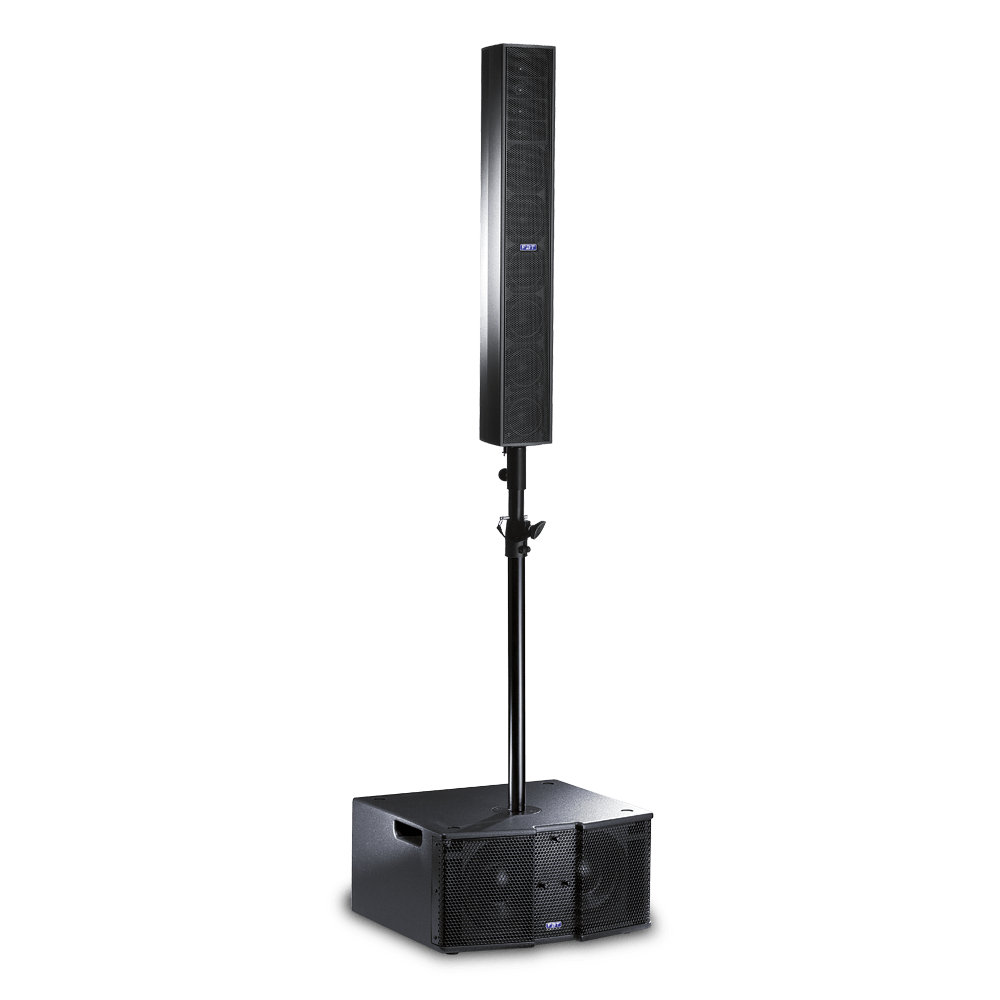

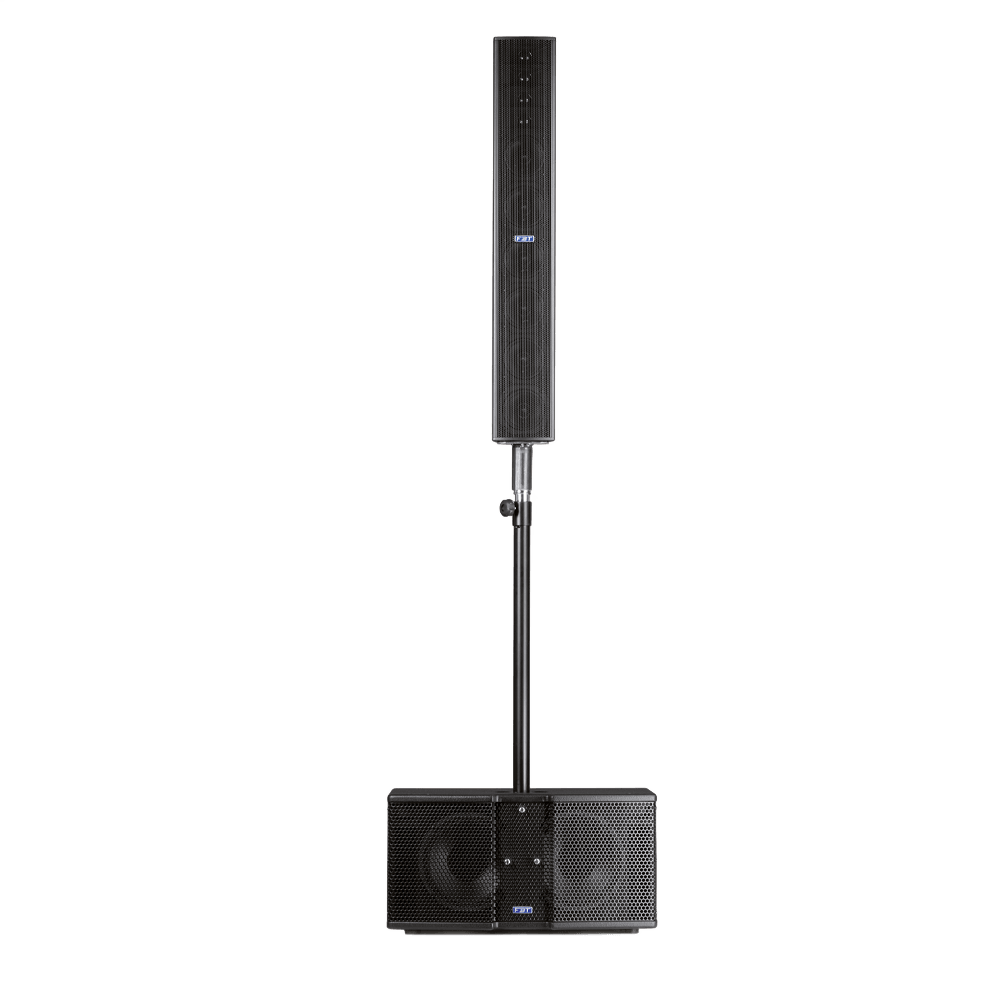

• Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation
• Easily expandable for a total power of 6600W (stereo system composed of 3 x CLA604A and 3 x CLA208SA)
• Very light and easy to carry
• Vertus is also available in white colour
• VT-S604 SPEAKER STAND ADAPTOR FOR VERTUSCLA604 (357.230FB)
• VT-S30406 SPEAKER STAND FOR VERTUSCLA406 (399.030FB)
