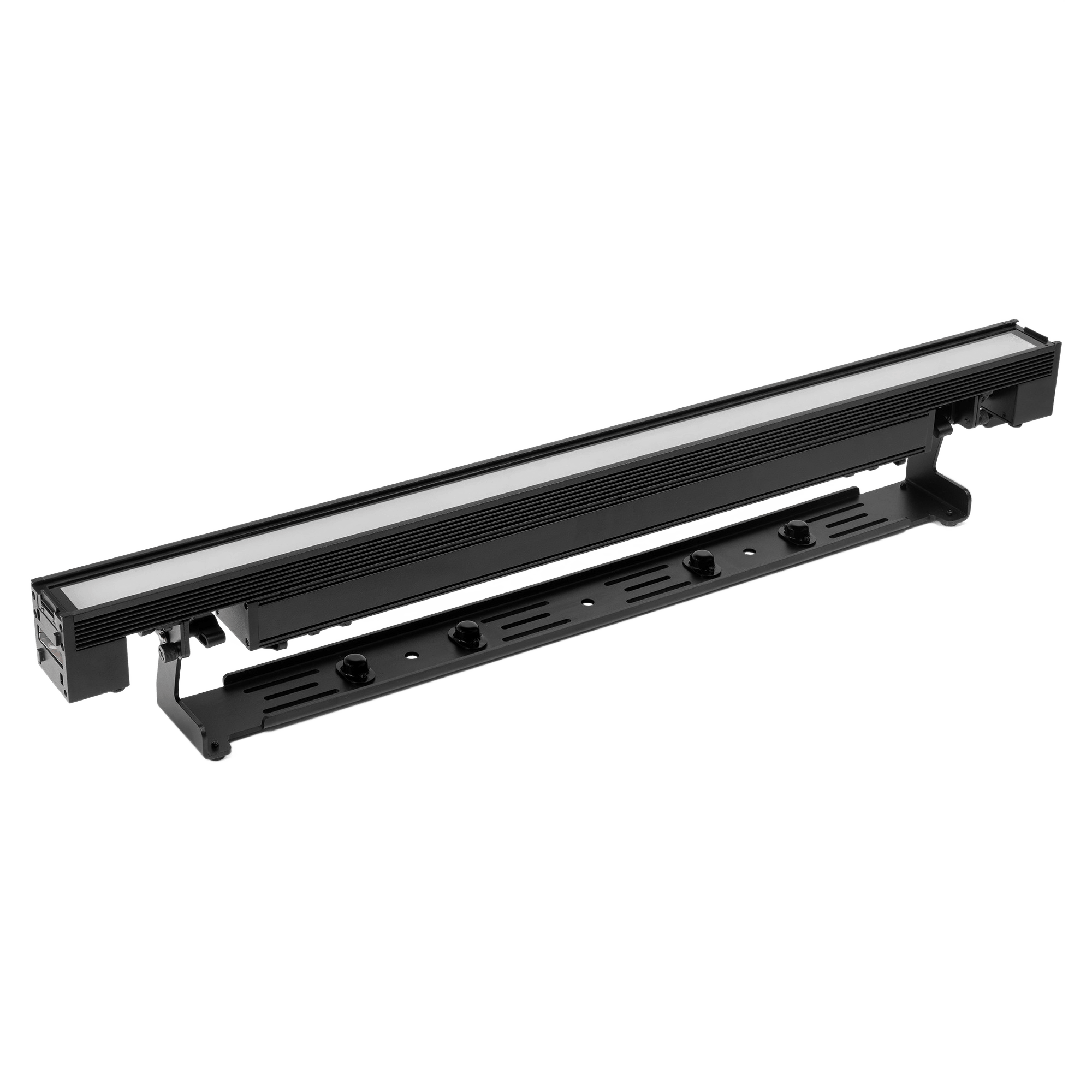

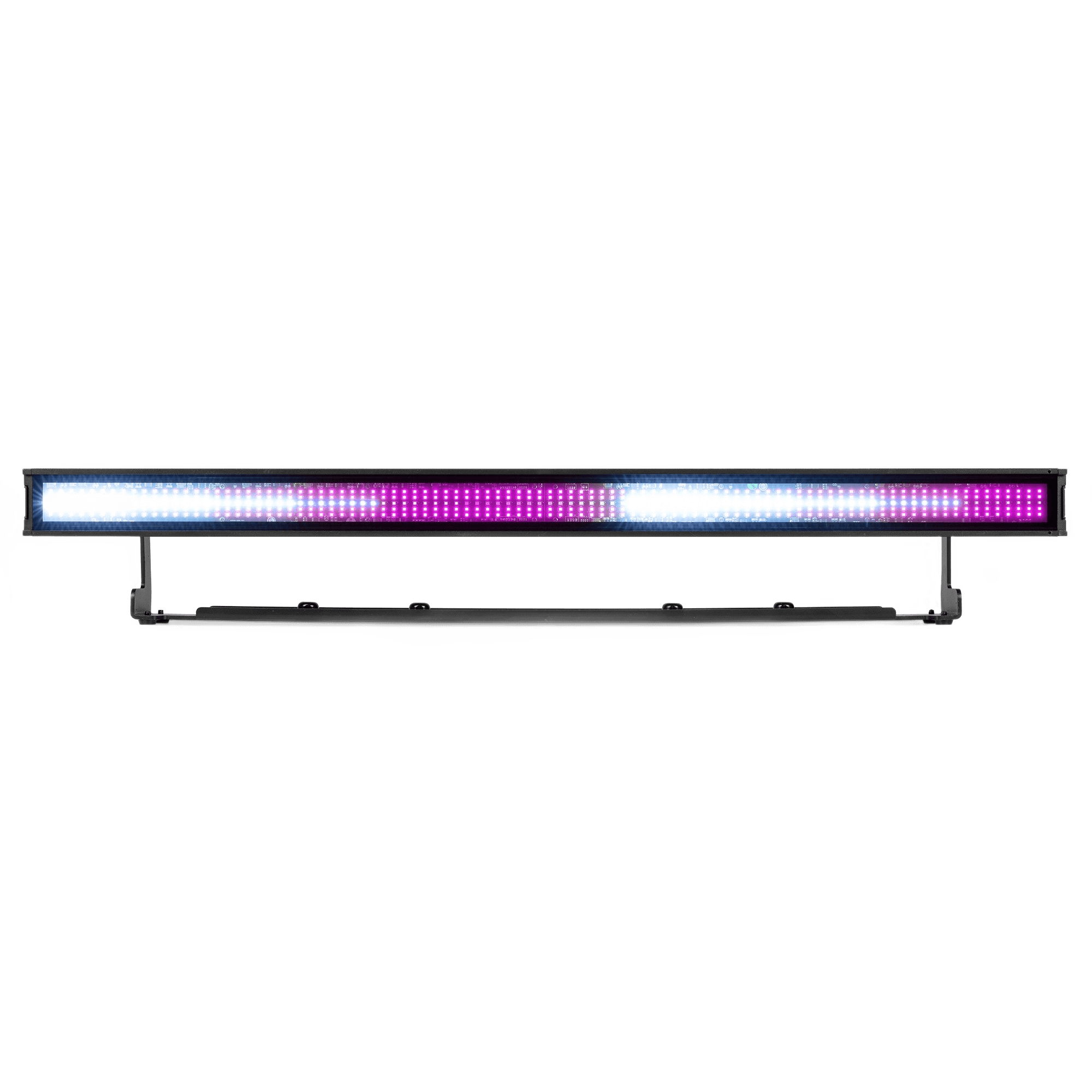

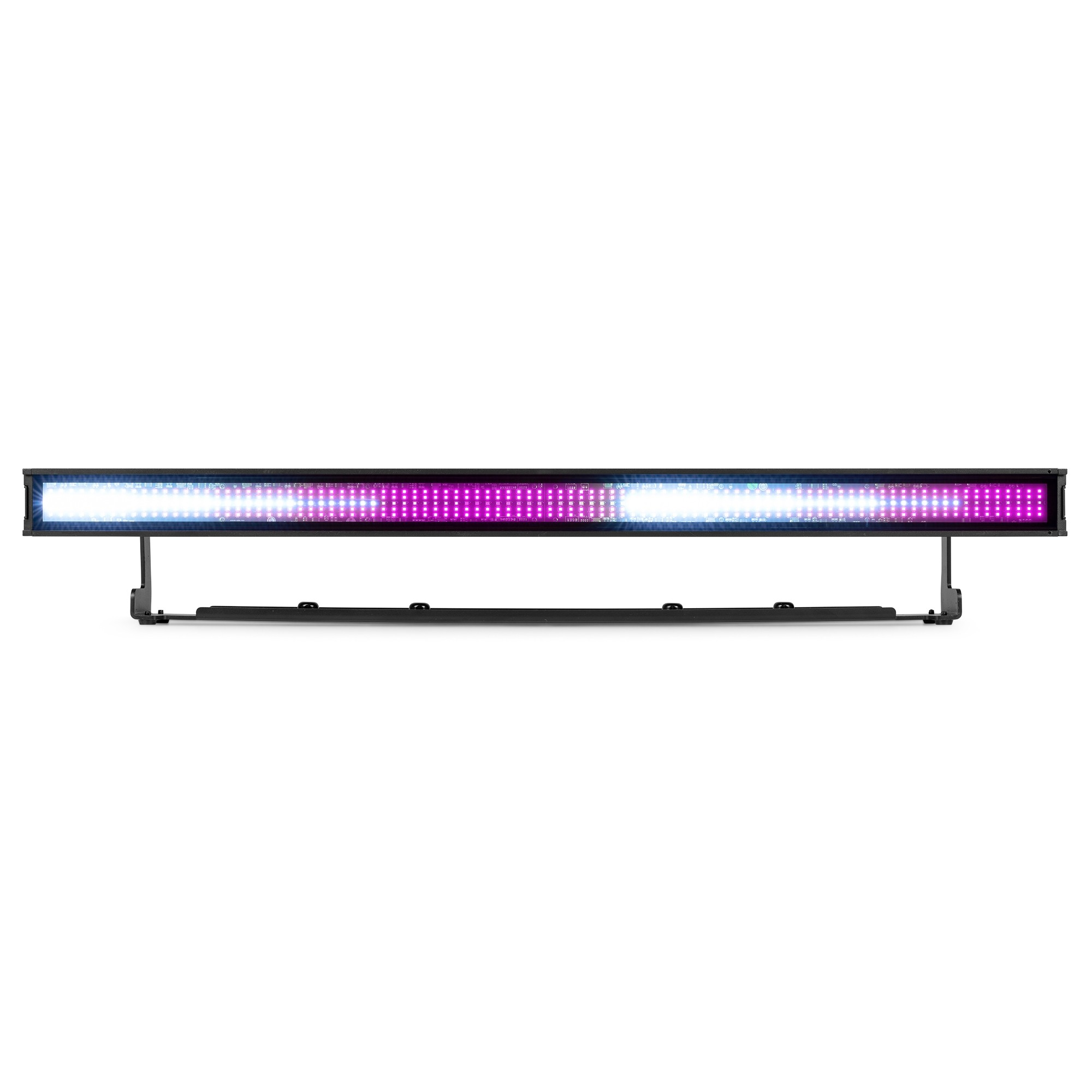

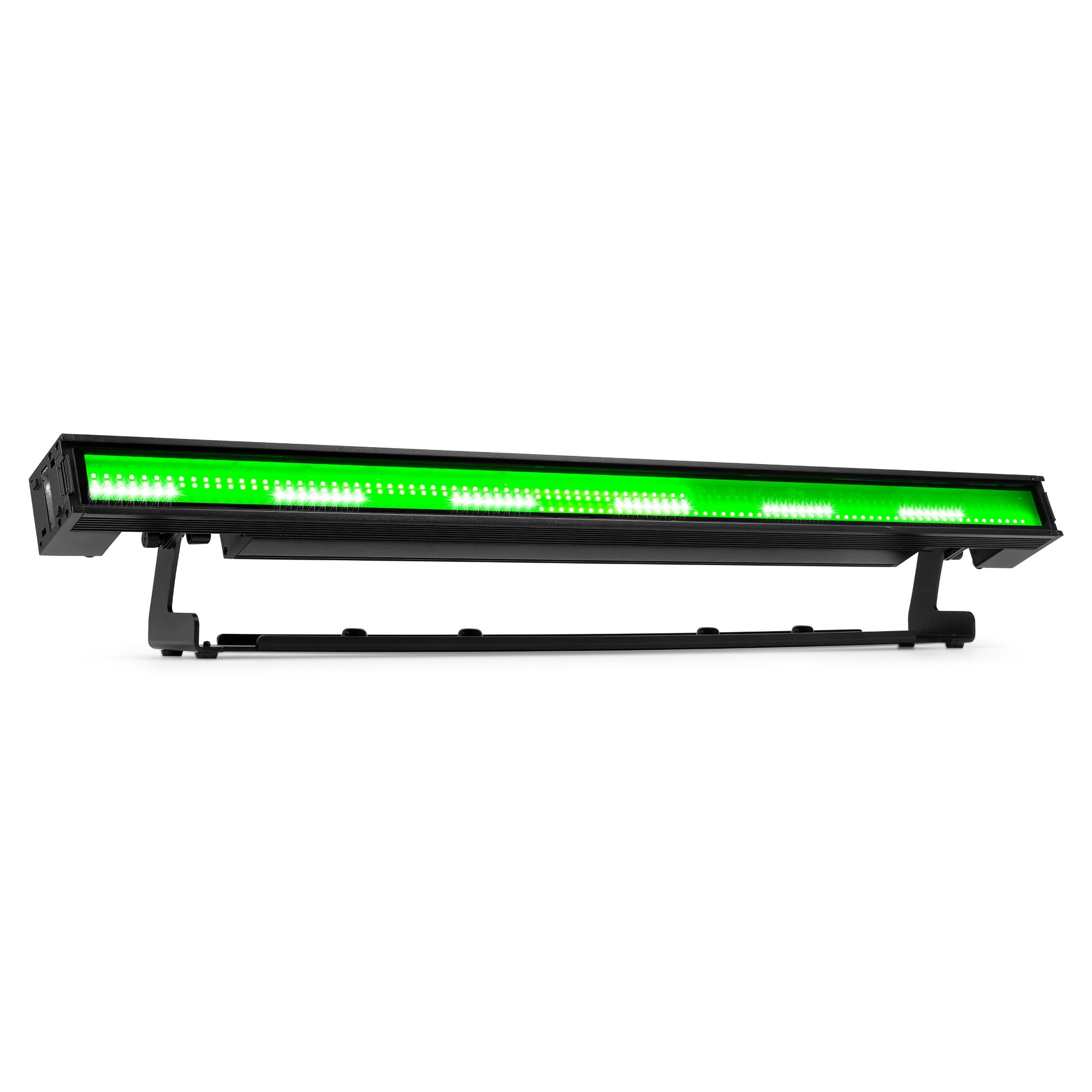

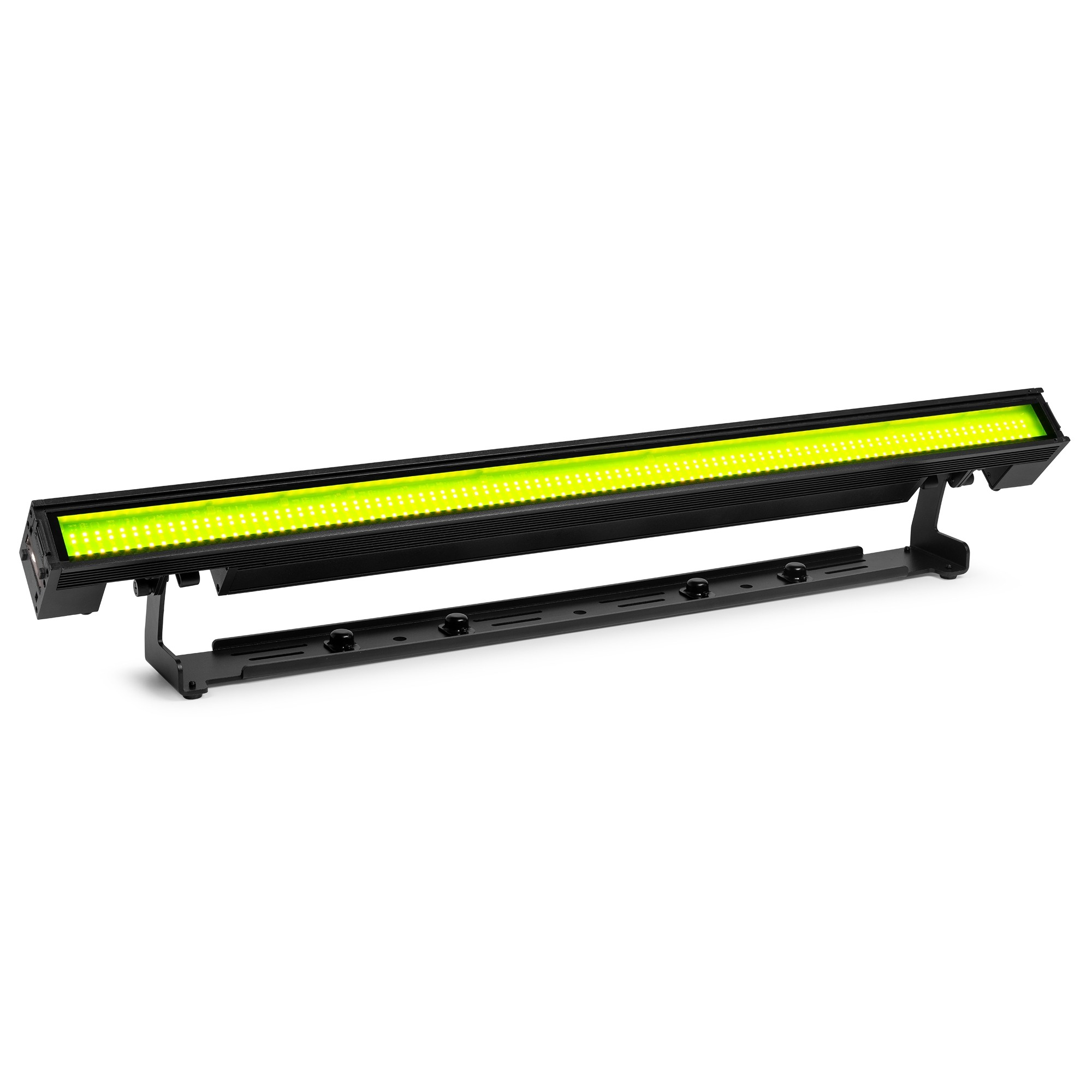

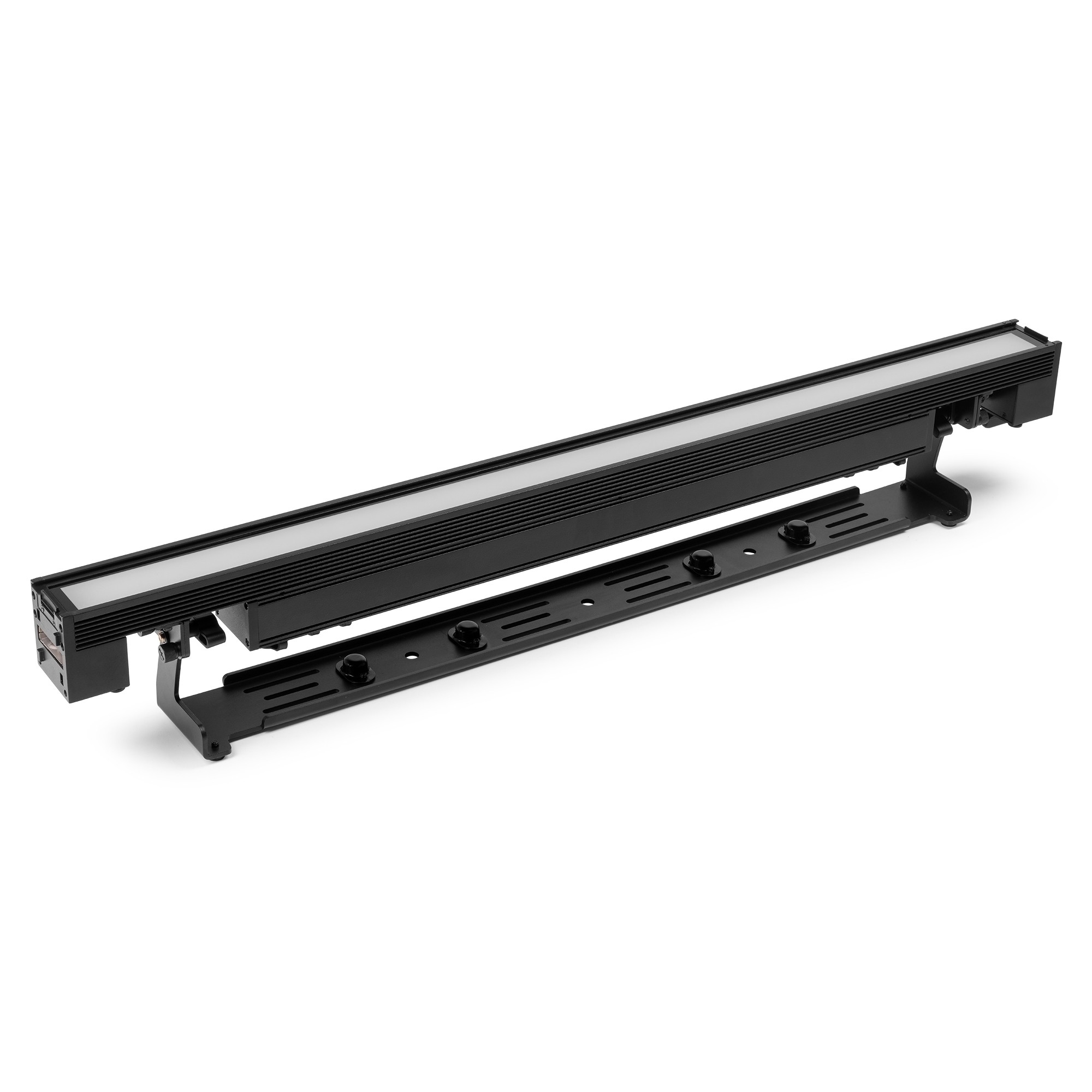

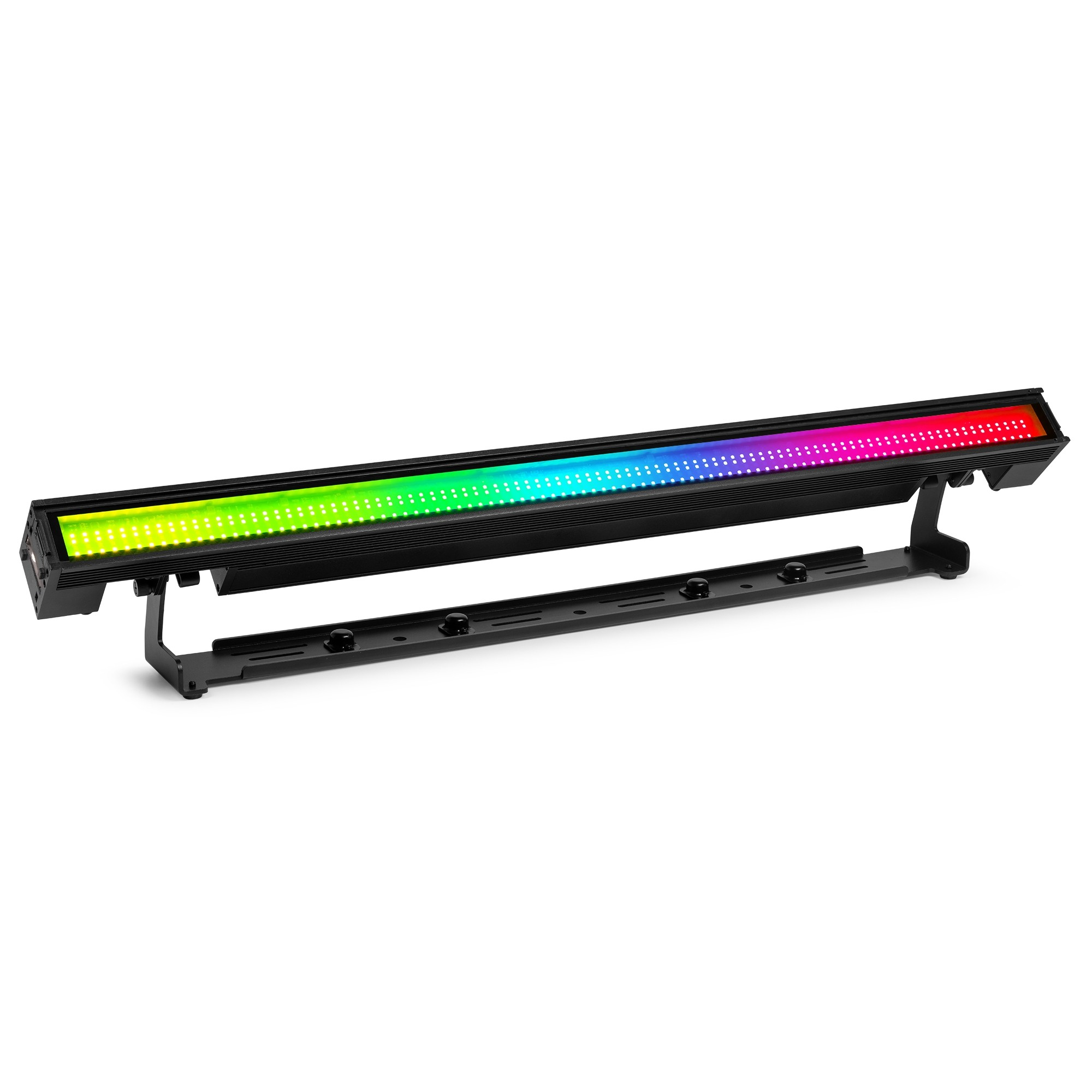

BeamZPro Dotbar PIX1 LED BAR IP65 Rgbcw

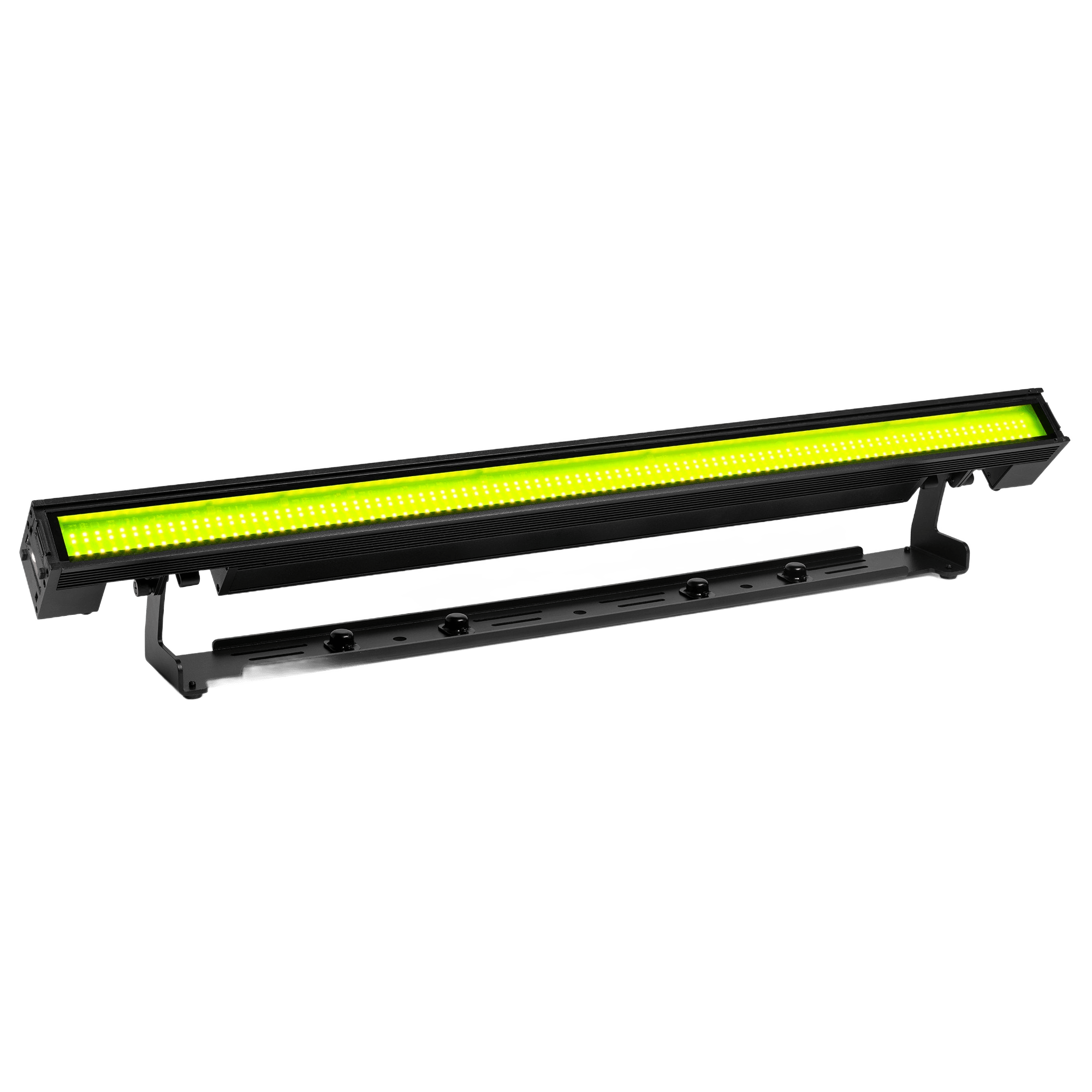

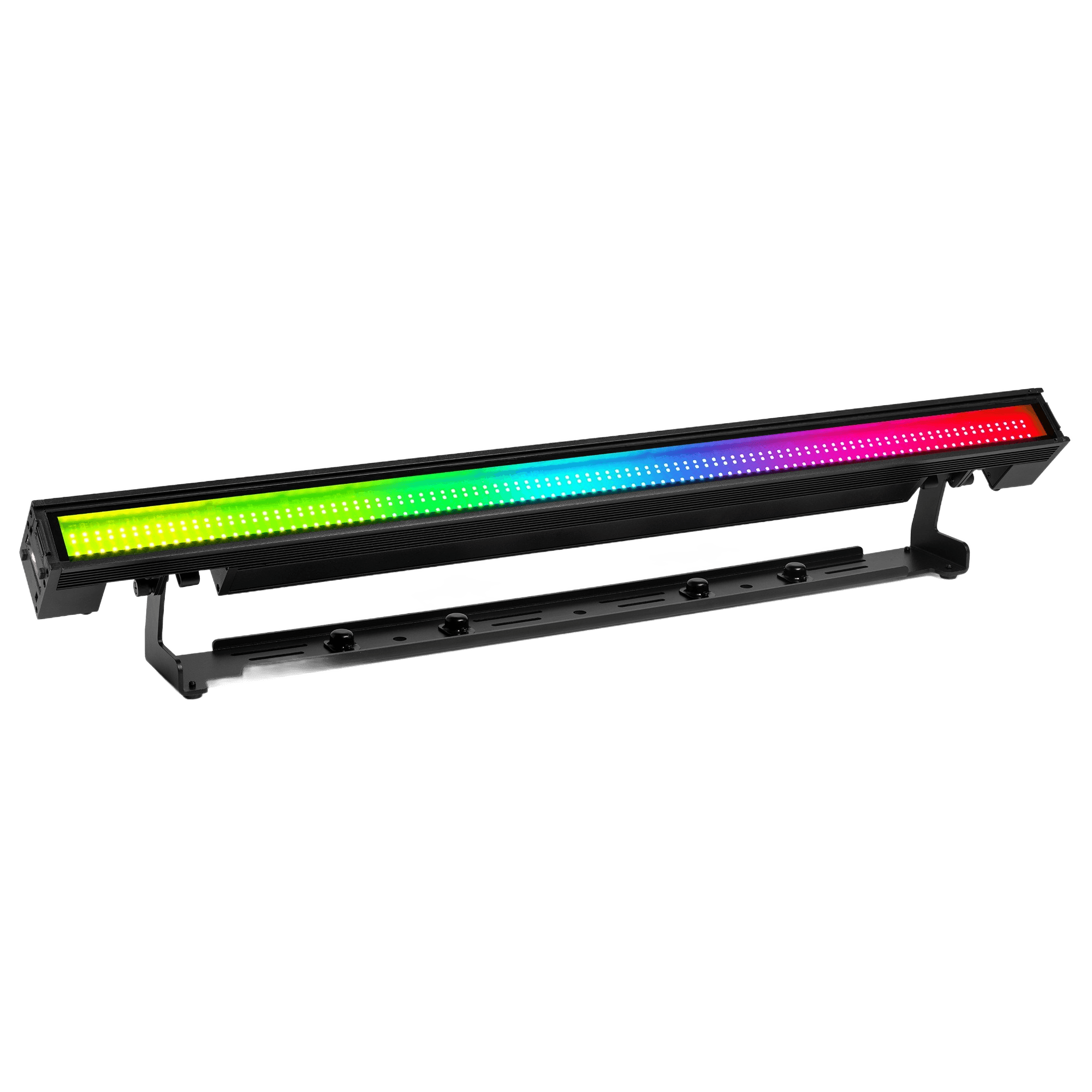

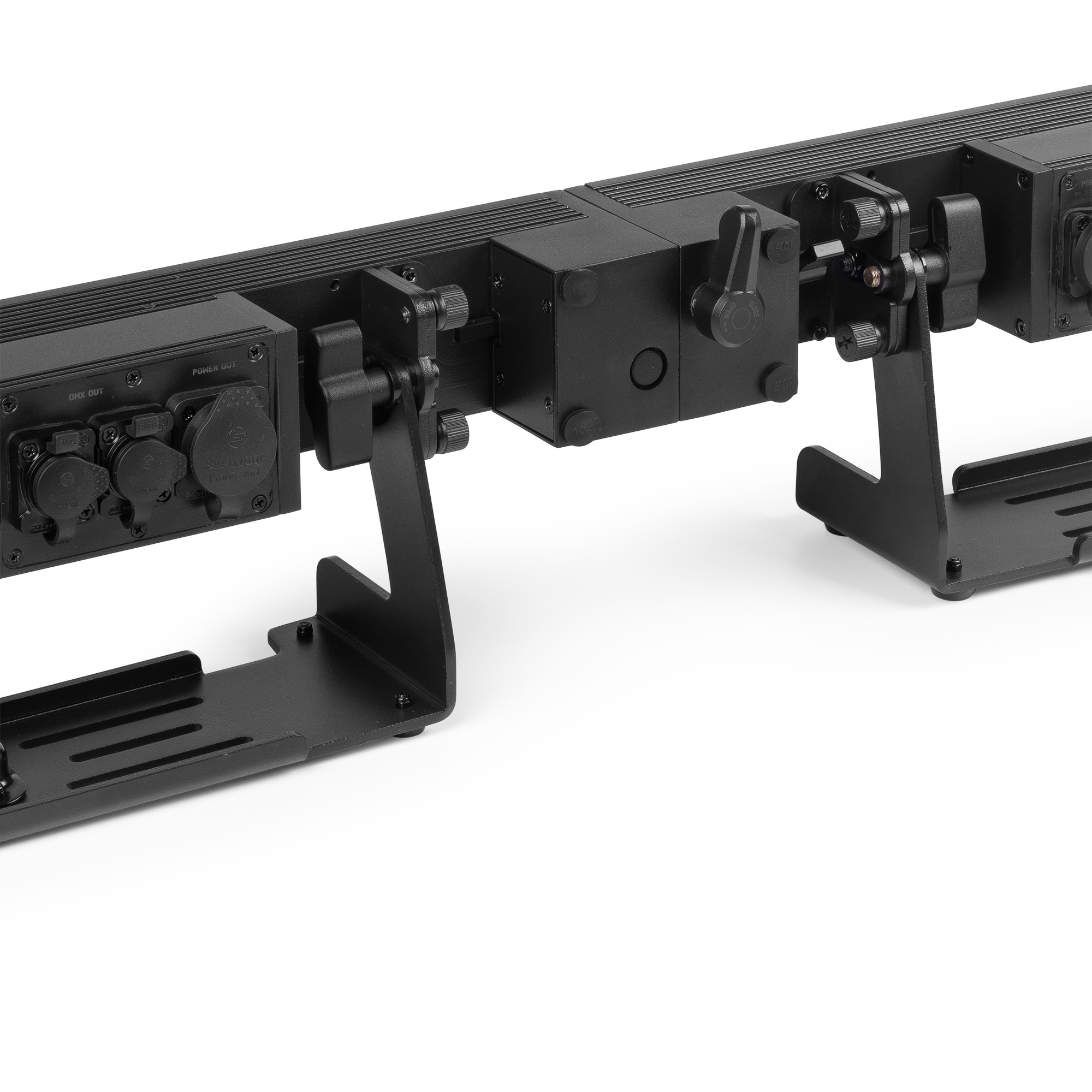

The DotBar Pix1 is an advanced compact STROBE BAR-Wall Washer with electronic frost, specially designed for indoor and outdoor use. The DotBar Pix1 guarantees a massive light output, but on the other hand is also energy-efficient, consuming 70% less energy than traditional lighting fixtures, with no flickering, UV or infrared radiation. This advanced lighting solution features two zones: Zone 1 with 384 RGB LEDs, individually controllable over 32 zones with 12 LEDs, and Zone 2 with 96 CW LEDs controllable over 16 zones with 6 LEDs. Thanks to the unique design of the LED module, the white and coloured LEDs work seamlessly together, providing smooth dimming, dynamic macro-tracking and a wide range of strobe effects. The DOTBAR series features an easy and quick-to-use coupling system. The coupling system built into each Bar allows quick alignment and installation, making it easy to align and couple the different Bars in the DOTBAR series with each other. These fixtures can also be placed directly on the ground using the optionally available Baseplate, which features the same coupling system to ensure absolute stability. Truss mounting is also possible.

• STROBE BAR-Wall Washer RGBW
• Electronic Frost
• IP65 for indoor/outdoor use
• 384x SMD RGB LEDs
• 96x SMD Cool White LEDs
• Separate controllable sections (32 RGB and 12 CW sections)
• Flicker Free LED driver
• Pre-programmed shows and adjustable speed
• Strobe effect and Electronic dimming
• DMX and Stand-alone mode
• Master/slave function

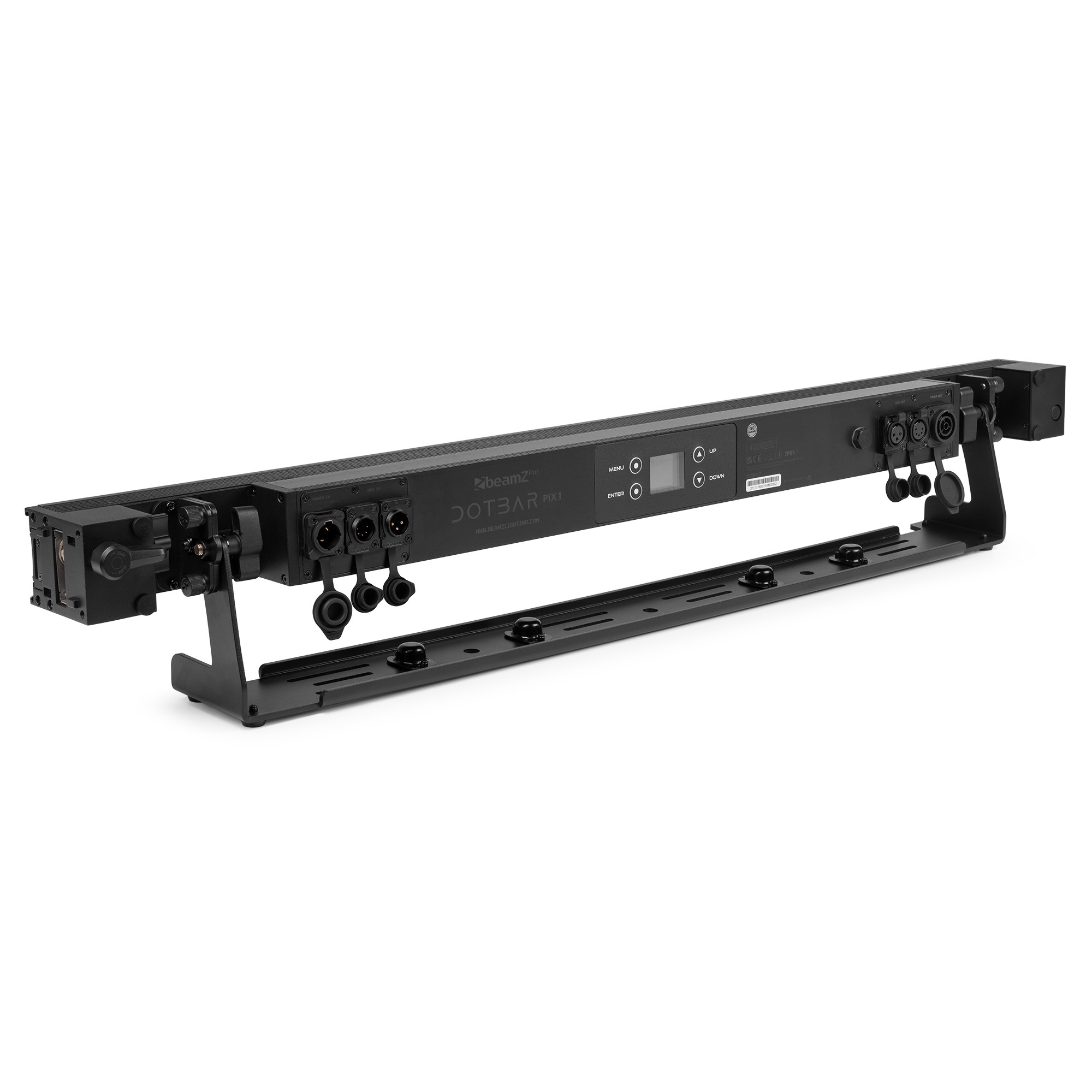

• DMX in/output via 3/5-pin XLR
• P-Con TR Powerconnector input/output
• Aluminium housing with convection cooling

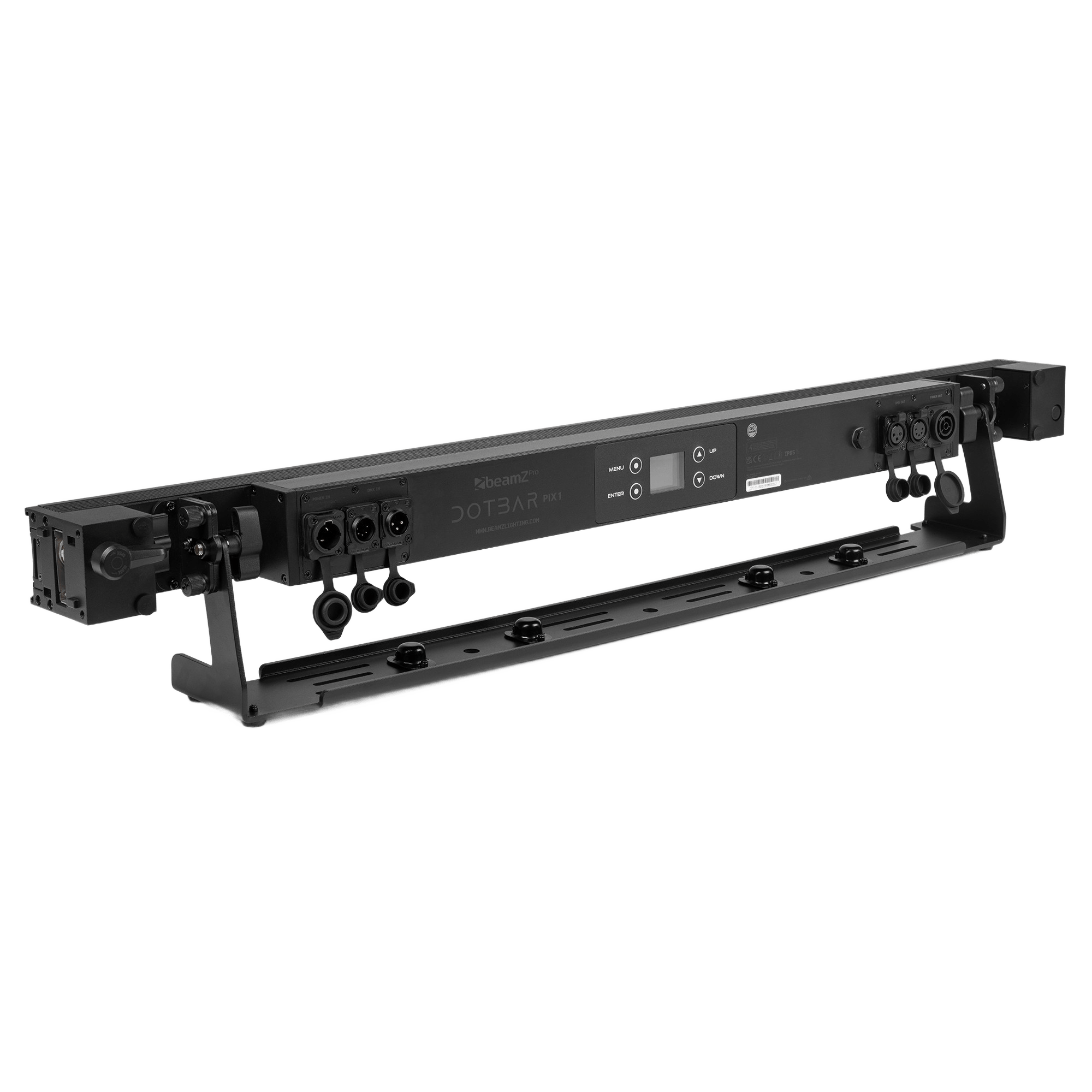

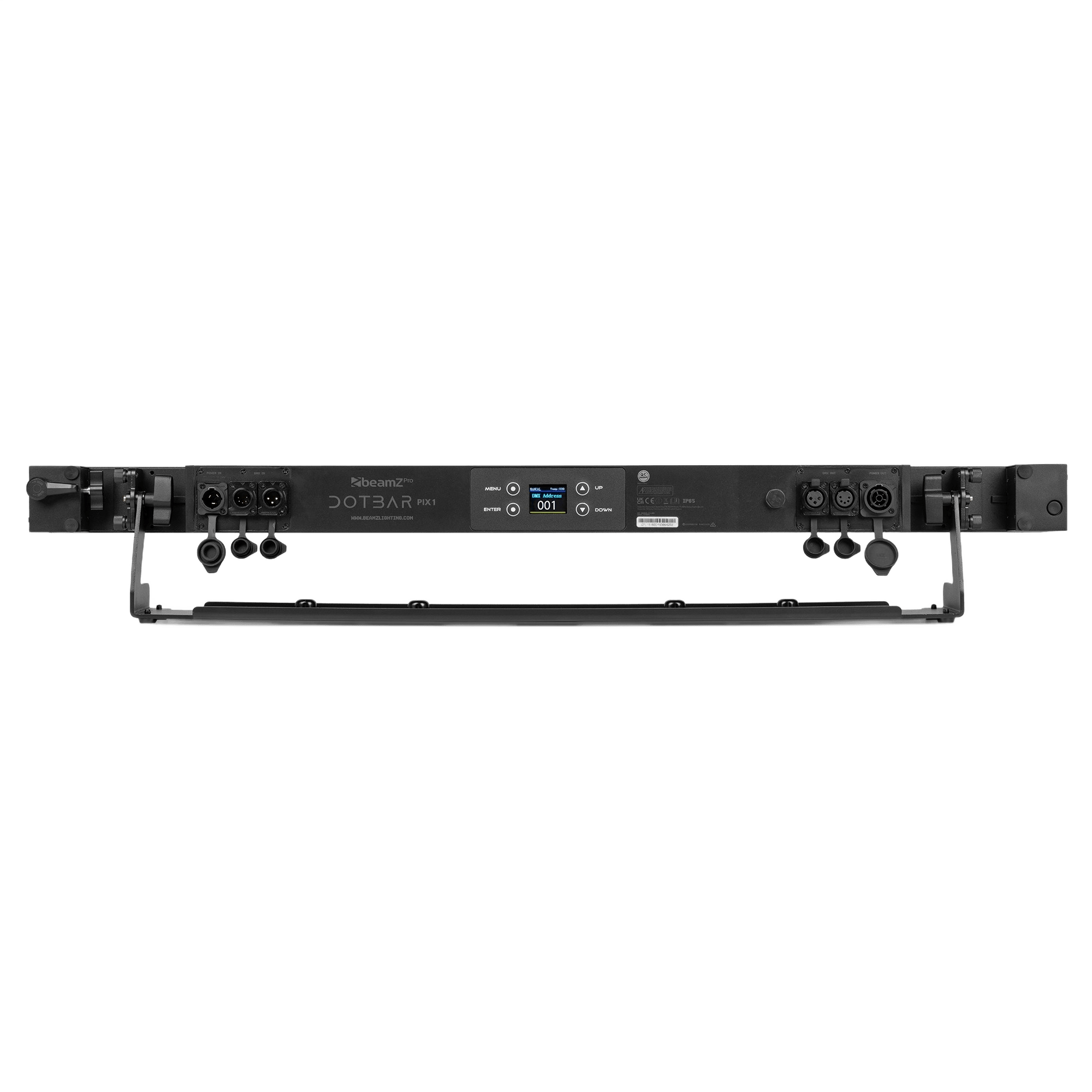

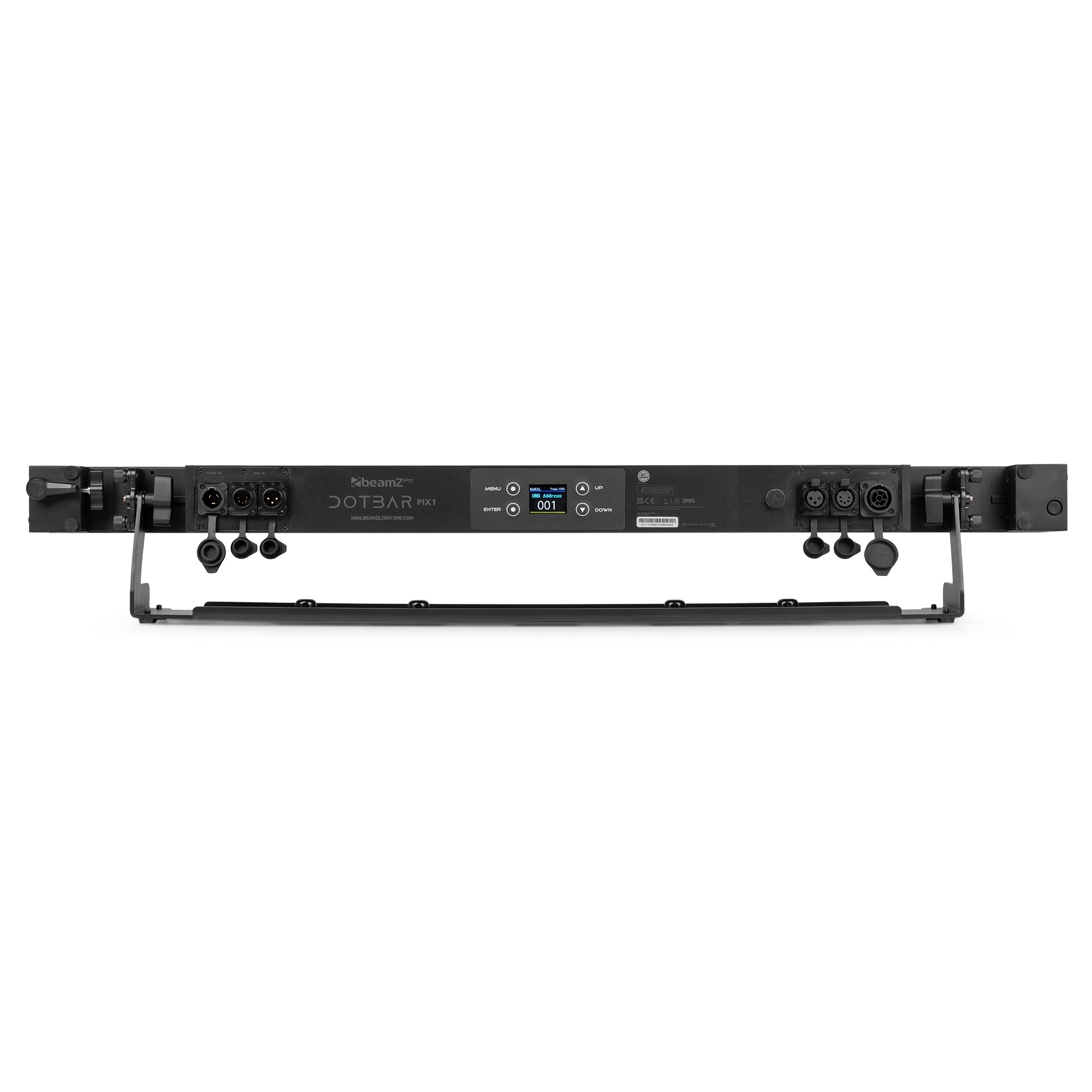

• Control panel with LCD display
• Adjustable bracket up to 90 degrees

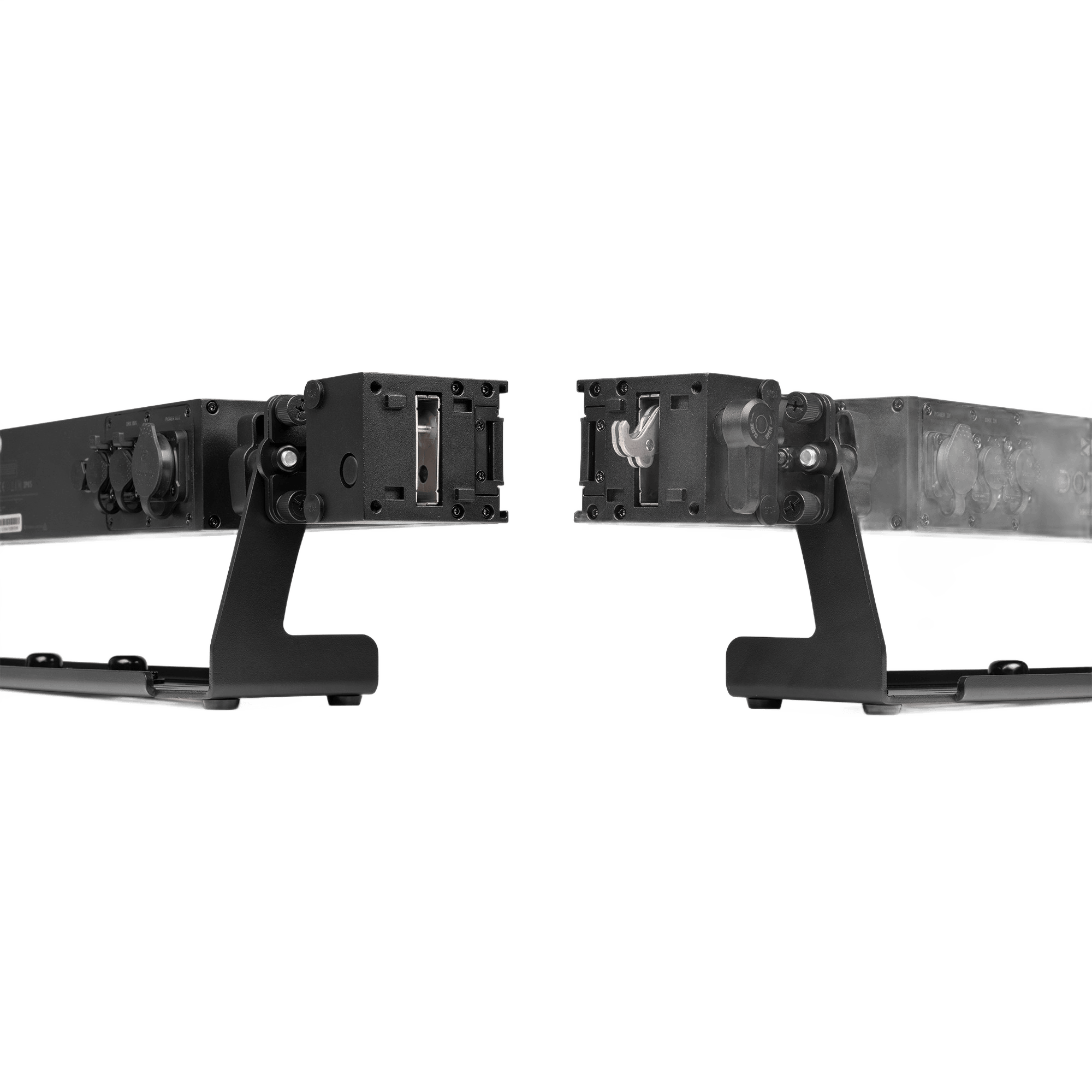

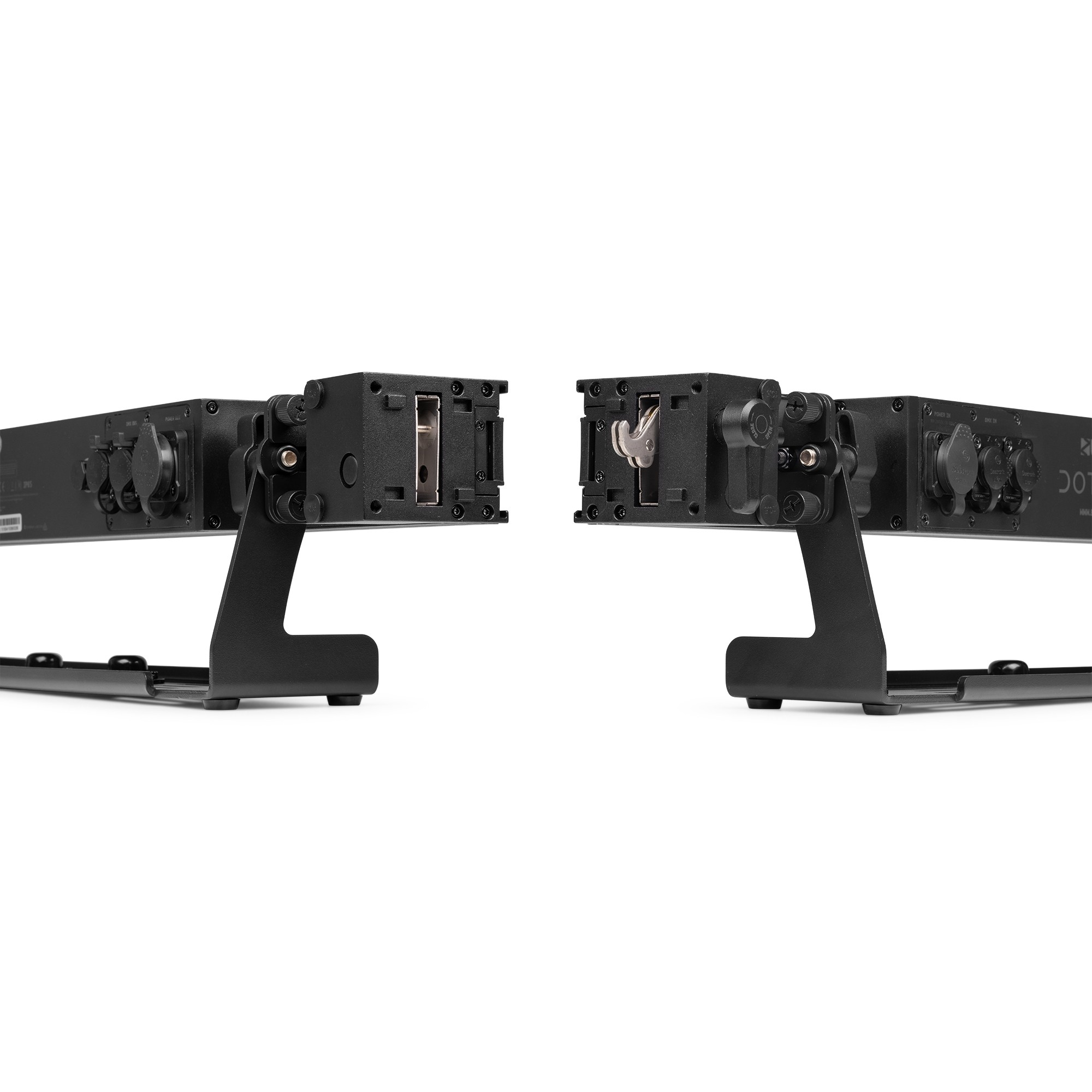

• Linkable with the quick-to-use coupling system

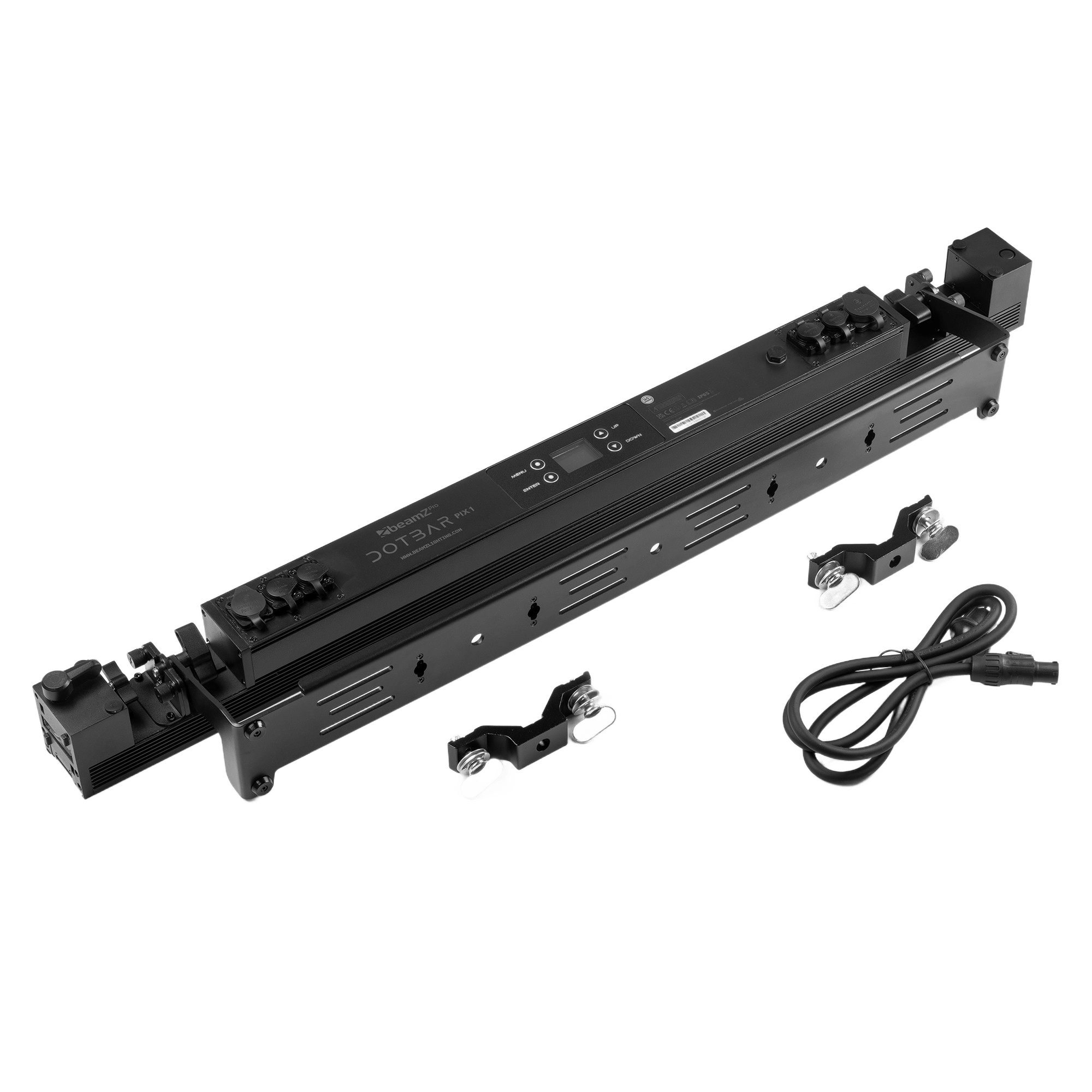

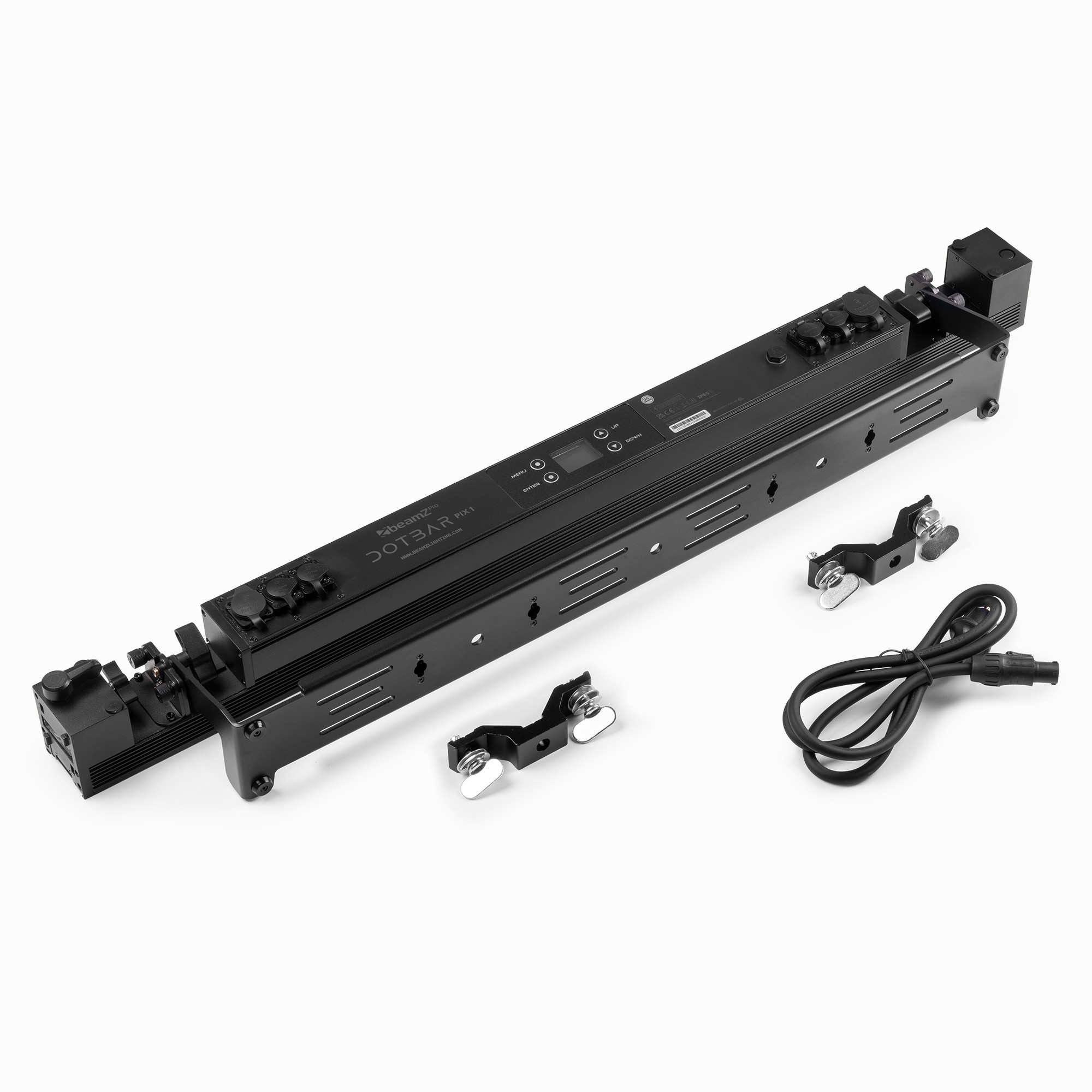

• Including Omega Quick Lock brackets
