PAR 18×10 RGBW Wash Light

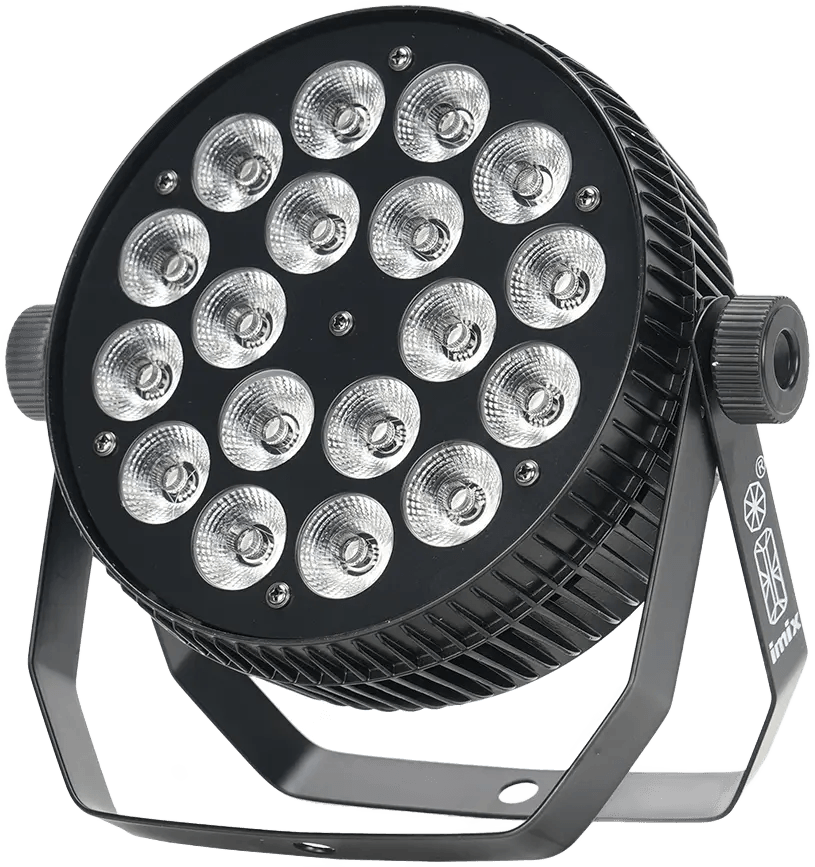

The PAR 18×10 RGBW is a high-output LED wash light featuring 18x10W 4-in-1 RGBW LEDs for vibrant color mixing. With multiple DMX modes, sound activation, and smooth dimming, it’s ideal for stage lighting, DJ setups, and architectural washes. The ultra-flat design (ISPCS™-IBM) ensures wide, even coverage.

Category

Details

LEDs

18 × 10W RGBW (4-in-1)

Power

180W

Voltage

AC 85-265V (global)

Control

DMX512 (8/6/4CH), sound-activated, master/slave

Beam Angle

Wide flood (specific degrees not stated)

Dimming

0-100% smooth dimming

Strobe

0-20Hz adjustable

Display

LCD menu for settings

DMX Channel Tables

8CH Mode (Default)

CH

Function

Value Range

Effect

1

Master Dimming

0-255

0-100% brightness

2

Strobe

0-255

Speed: Slow → Fast (0-20Hz)

3

Built-in Programs

0-255

Auto color/gobo sequences

4

Program Speed

0-255

Adjusts auto mode speed

5-8

RGBW Intensity

0-255 each

Red/Green/Blue/White control

6CH Mode

CH

Function

1

Master Dimming

2-5

RGBW Intensity

6

Strobe

4CH Mode (Simple Control)

CH

Function

1-4

RGBW Intensity

Menu System

Key Functions

Programmable Settings

Parameter

Range

Description

A001

001-512

DMX address

FF00

00-49

Pulse speed (slow → fast)

FE00

00-49

Gradient speed (slow → fast)

R/G/B/W

000-255

Individual color intensity

SOLU3

000-255

Sound sensitivity (for audio mode)

Safety & Usage Notes

⚠ Indoor Use Only - Not waterproof (avoid humid environments)

⚠ Eye Safety - Avoid direct exposure to LEDs

⚠ Ventilation - Ensure 30cm clearance for heat dissipation

⚠ Voltage - Use only 85-265V AC power
