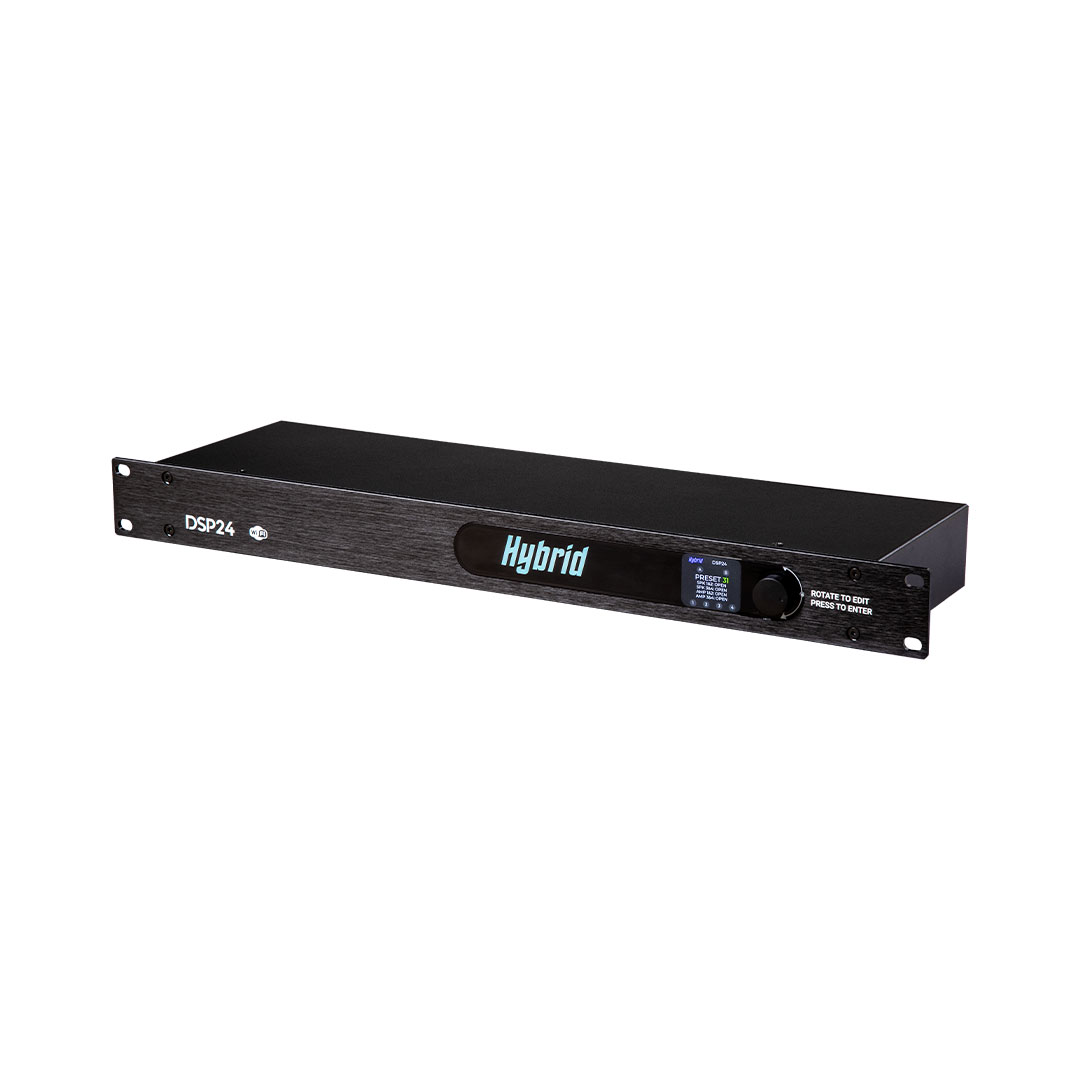

Hybrid DSP24

DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR – 2 IN/4 OUT

The ideal replacement for conventional analogue processors, such as crossovers, graphic equalisers and limiters, with password protection

Best value on the market 2 IN / 4 OUT SPEAKER MANAGEMENT PROCESSOR

3 × PARTIALLY EDITABLE ONBOARD PRESETS Requires no technical knowledge or experience to set up

27 × PRE-LOADED NON-EDITABLE HYBRID PRESETS Set up to work with the majority of Hybrid and Hybrid+ amplifier and speaker combinations. Requires no technical knowledge or experience.

2 × FULLY EDITABLE PRESETS Can be edited with software accessed from PC or smart device

Features • Linked left and right inputs • 4 x input PEQs, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass) • Outputs 1 and 2 as well as outputs 3 and 4 linked by default • HPF or LPF with 6, 12, 18 and 24 dB/oct slopes • Crossover types include Linkwitz-Riley, Butterworth or Bessel filters • Linked outputs 1 and 2 as well as Linked outputs 3 and 4 can switch between PEQ and 30-band graphic EQ • 8 × PEQs for linked outputs 1 and 2 as well as outputs 3 and 4, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass) • Time-alignment up to 15 ms on linked outputs 1 and 2 and linked outputs 3 and 4 • Linked outputs 1 and 2 as well as linked outputs 3 and 4 have a limiter with attack, release and threshold • Independent phase invert for all outputs • Independent mute function for all outputs • Electronic Earth-lift • Utilities menu allows you to load the preset from a smart device, save the preset to a smart device, write the preset to the DSP24, change and save the password, upgrade the firmware and change the LED logo’s colour and intensity

HYBRID is a South African brand with over 30 years’ experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget.

HYBRID+ is our flagship brand, offering features and performance comparable to world-renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.

HYBRID DSP24 MANUAL DOWNLOAD

FIRMWARE DOWNLOAD
