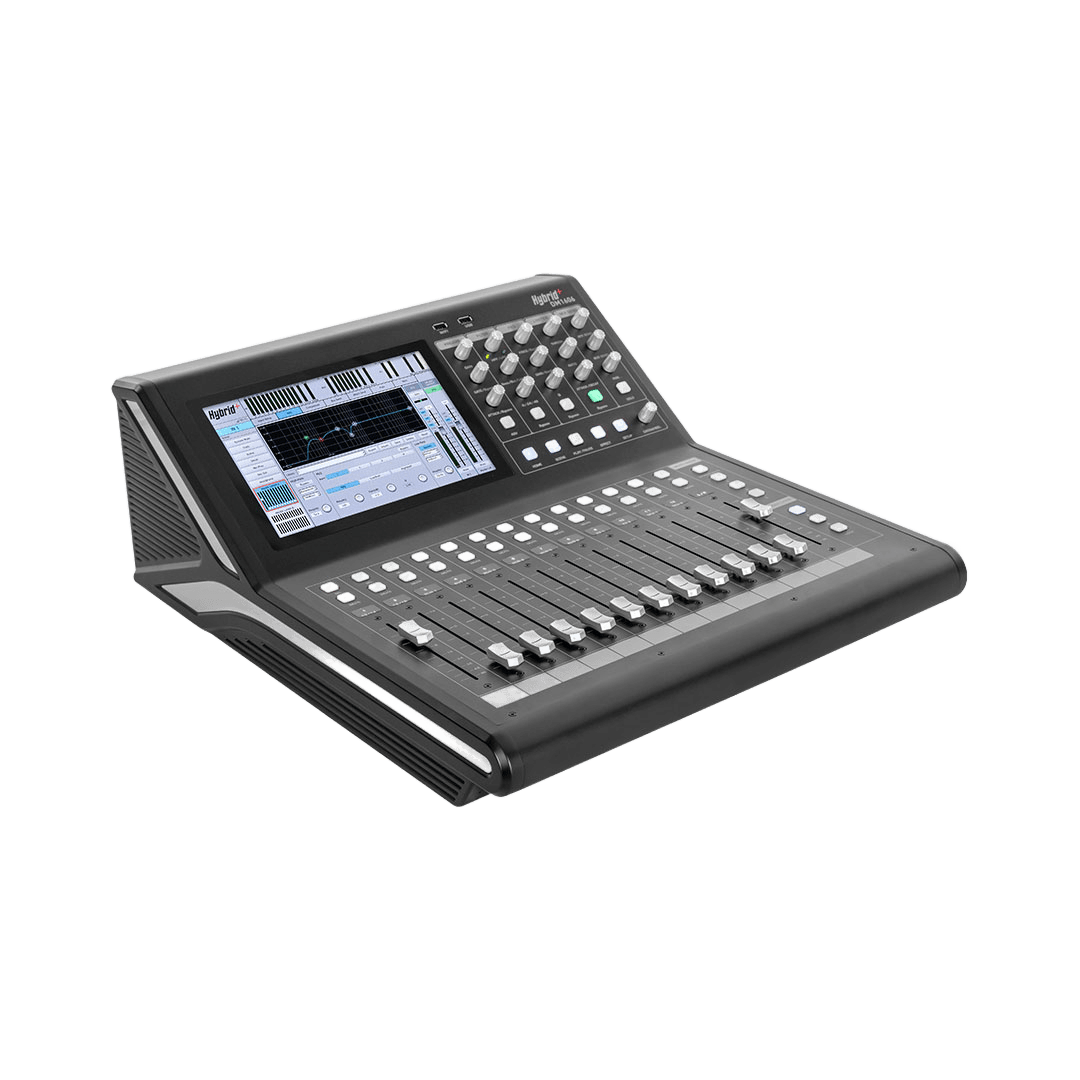

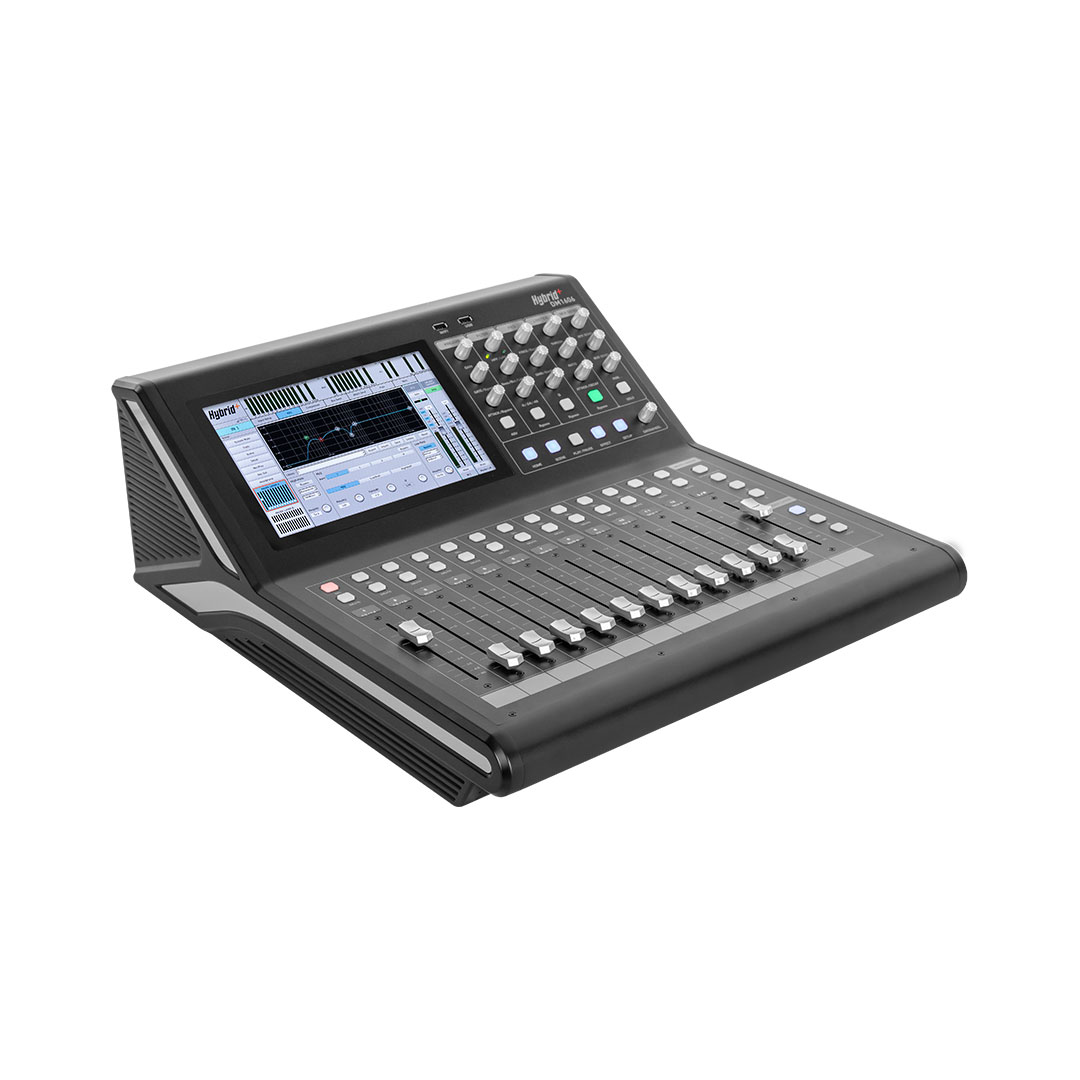

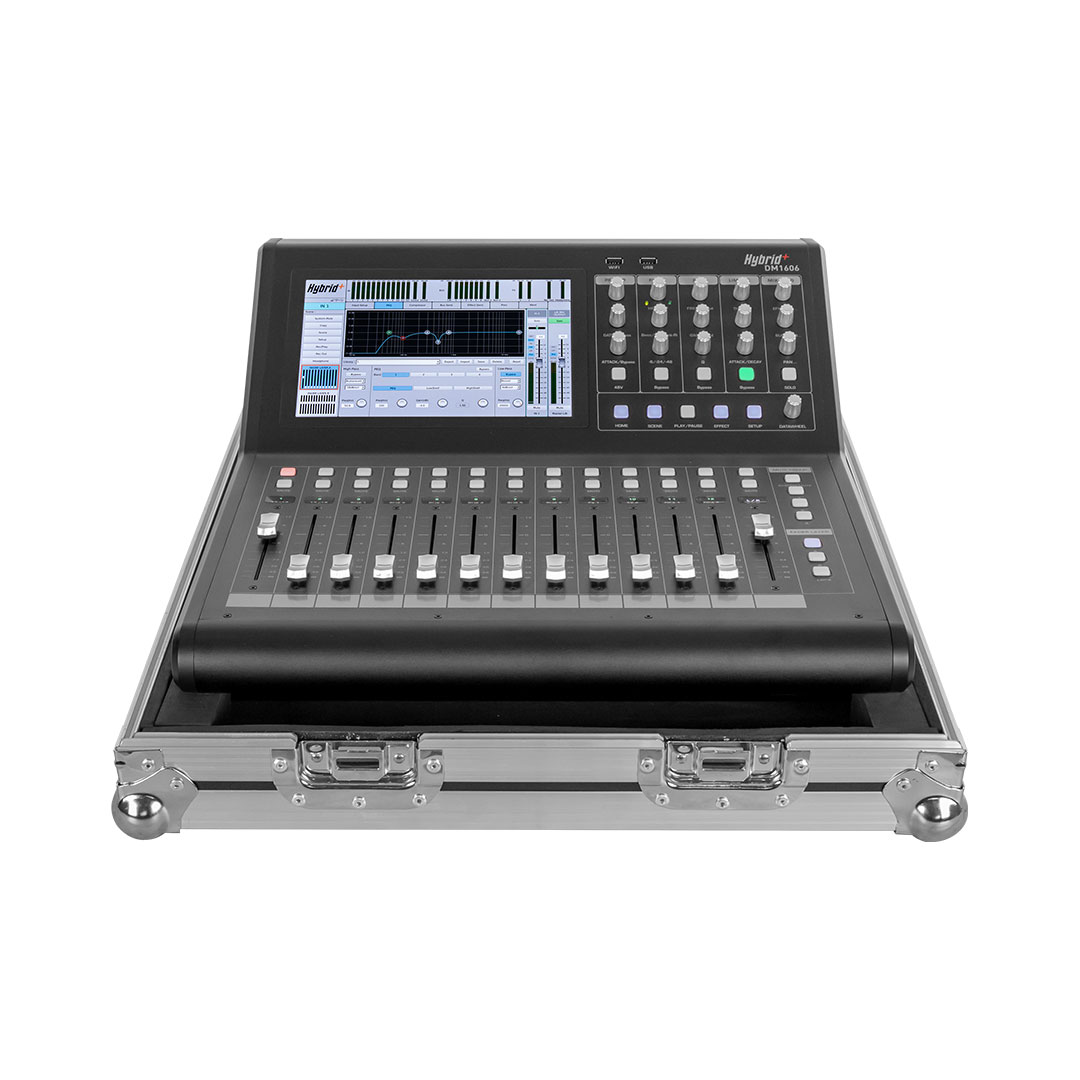

Hybrid+ DM1606

Mixer – Digital 16 Channel

The Hybrid+ DM1606 is a 16-channel digital mixer which has been designed to provide effortless user interface navigation and comprehension, even for live engineers who are not experts with hands-on digital mixer platforms. Specifically, the large 10” touch screen provides clear visibility of information and controls. Through the carefully laid-out onboard controls, quick edits to a live mix (a crucial functionality in the dynamic environment of a live event) are easily achieved through the multi-layer motorised faders and dual-action rotary encoders.

The routing matrix is simple to find and manipulate, and the comprehensive input and output LCD bar displays are easily accessible for distortion-free mixing throughout all stages of the mixer.

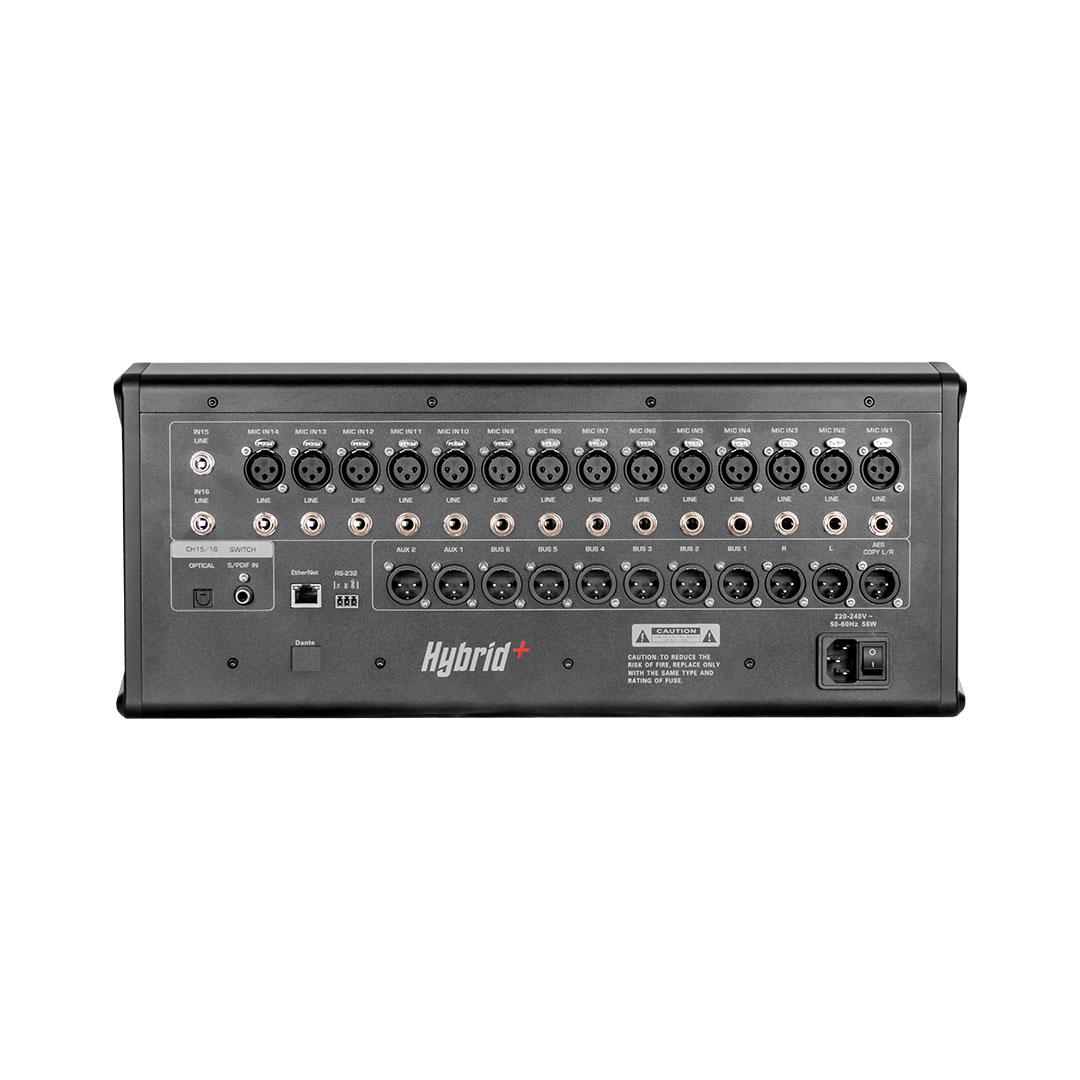

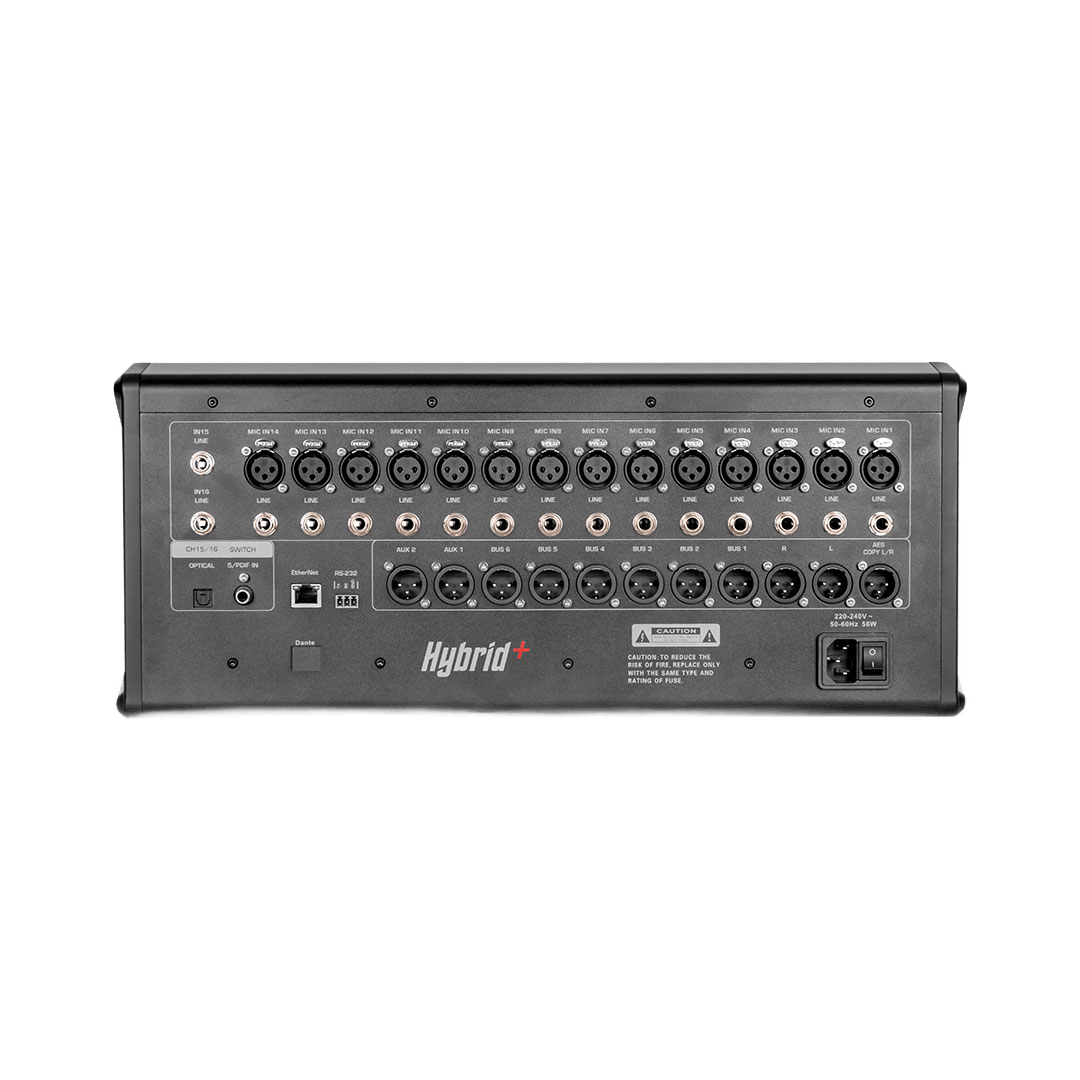

Inputs 1-16

Outputs (Bus 1–6)

Effects (1 & 2)

Master Output

General

HYBRID is a South African brand with over 30 years’ experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget. HYBRID+ is our flagship brand, offering features and performance comparable to world renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.

• 100mm motorised faders (2-Layer)
• Mute
• Gain control
• 48V phantom
• Signal invert
• Feedback eliminator
• Input gate
• HPF / LPF / 4 X EQ’s (PEQ, low shelf, high shelf)
• Compressor
• In / Out matrix
• Mic – XLR female & line – 6.5mm Jack
• 100mm motorised faders
• HPF / LPF / 8 X EQ’s (PEQ, low shelf, high shelf)
• Delay (1.8 Sec)
• XLR male
• Pre-delay (0-250Ms) / dry/wet (0-100) / reverb (0-8Sec) / echo L&R (0-500Ms) / delay (0-500ms) / repeat L&R (0-90)
• Bus send
• HPF / LPF / 3 X EQ’s (PEQ, low shelf, high shelf)
• Save / recall library (6 default + 24 editable)
• Dedicated 100mm motorised fader
• 10” Touch screen
• Complete input / output LCD display meter
• 100 scene save / recall
• USB stick play / record
• Input / output copy-paste
• Oscillator (sine, pink, white)
• Auto mix
• Group mute
• Input / output fader link
• Input stereo link
• Aux send 1&2
• DCA 1&2
• Wifi control with optional Wifi dongle
