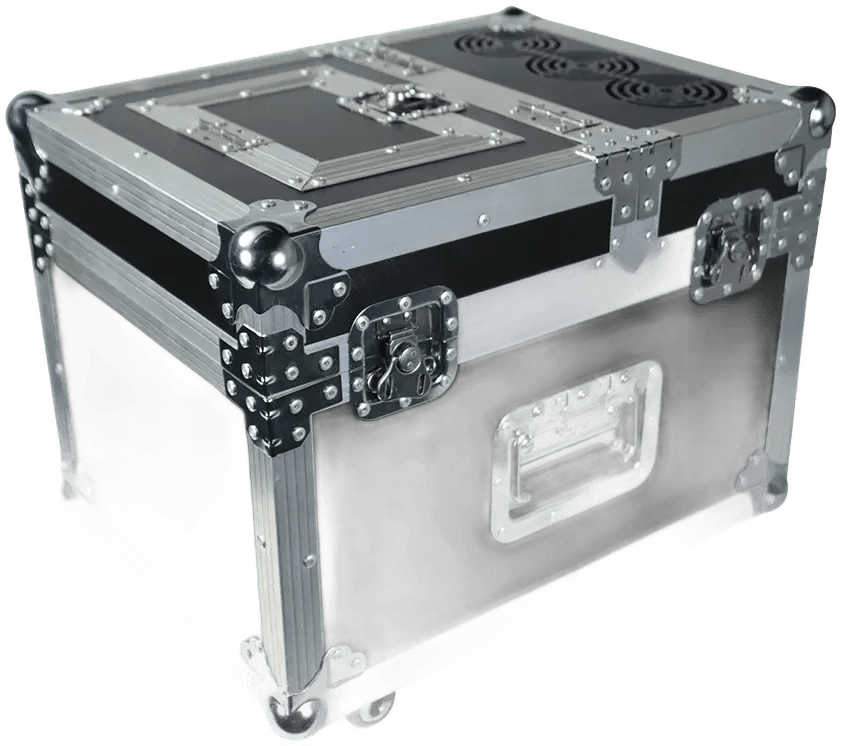

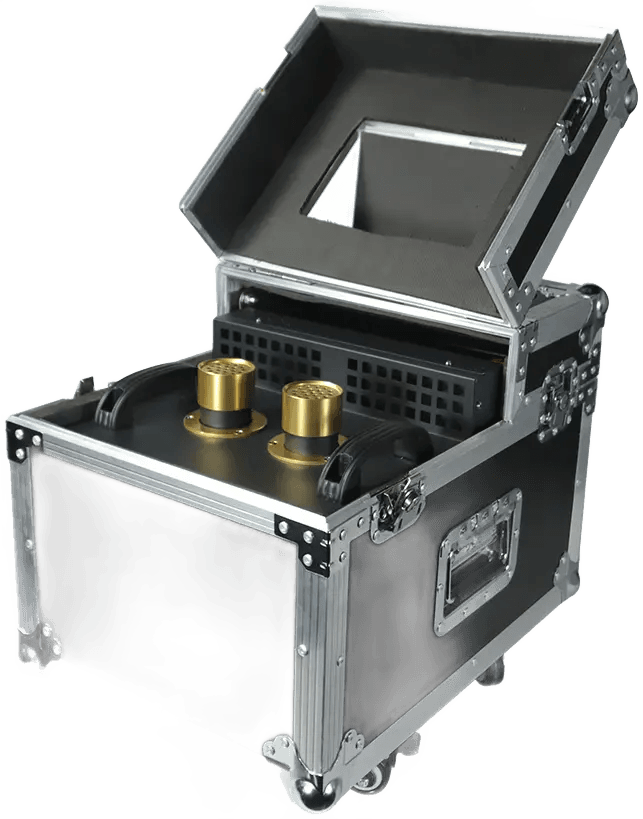

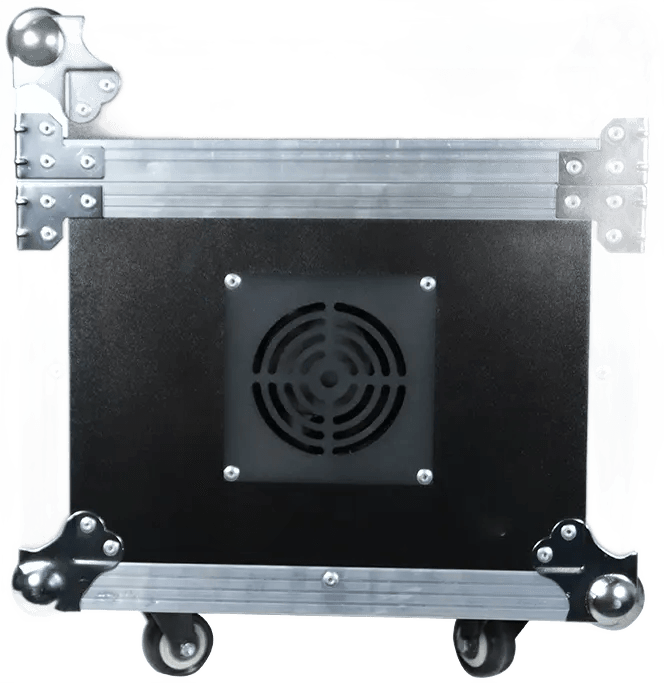

Hazer 600 Professional Haze Machine

The Hazer 600 is a professional-grade haze machine designed for creating uniform, long-lasting atmospheric effects. With DMX512 control, wireless remote operation, and instant activation (no preheating), it delivers ultra-fine haze with wide coverage for concerts, theaters, and events. Features include low fluid consumption and non-toxic output for safe use in performance environments.

Category

Details

Control Modes

DMX512 (2 channels), wireless remote, manual panel

Haze Output

Wide-coverage, ultra-fine particles

Tank Capacity

2L max (avoid overfilling)

Power Supply

AC 100-240V, 50/60Hz

Display

Digital tube for DMX address, airflow, and timer settings

Safety

Auto-shutoff to prevent dry burning

Weight

15kg

Setup & Operation

1. Initial Setup

2. Control Panel

Button

Function

Menu Key

Navigate settings (DMX address, airflow, timer)

Start/Stop

Toggle haze output (P ON/P OFF)

+/- Keys

Adjust airflow (F0=off, F100=max) or timer (D1-D200=run time in sec)

Config Key

Confirm settings

3. DMX512 Control (2 Channels)

Channel

Value Range

Function

1

0-64: Off, 65-255: On

Activates compression pump

2

1-255

Adjusts air volume (1=min, 255=max)

Safety & Maintenance

⚠ Avoid Dry Burning - Always ensure fluid is present to prevent damage.

⚠ Ventilation - Do not use in enclosed, high-temperature, or humid spaces.

⚠ Storage - Replace the gold lid with the black cover after use to protect the outlet.

⚠ Fluid Quality - Use only recommended haze OIL BASED fluids to avoid machine clogging.

⚠️ This product is designed for use with oil-based haze liquid only. Using any other liquid may damage the unit and void the warranty.
