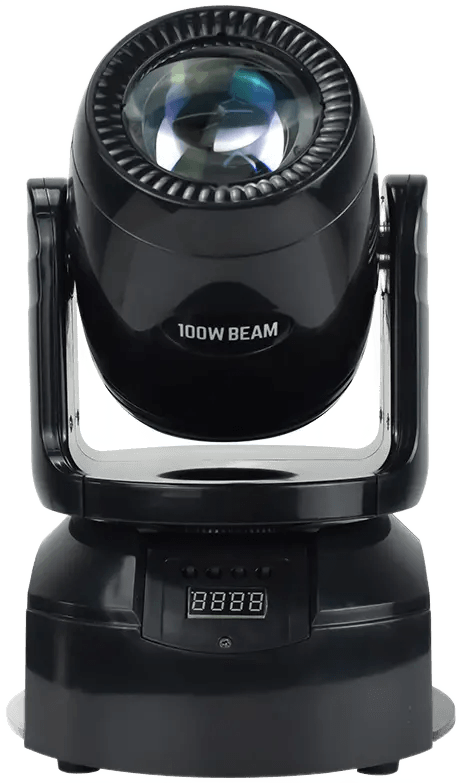

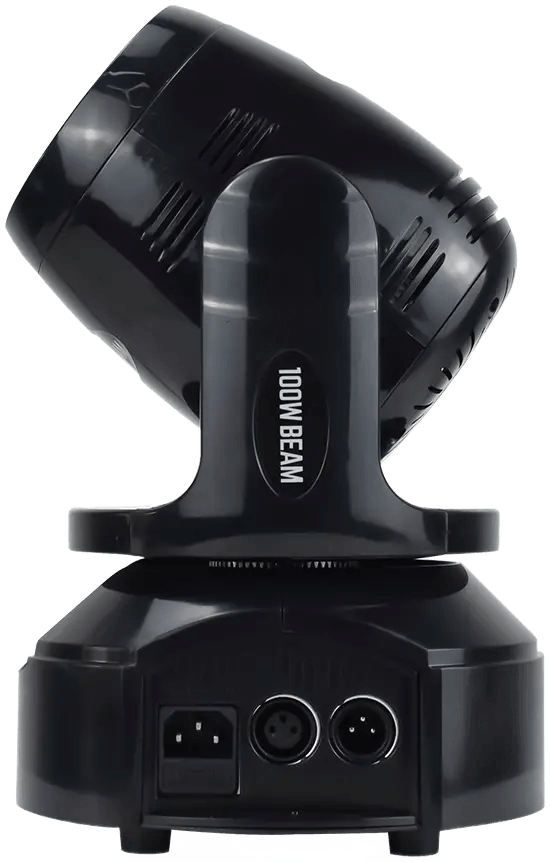

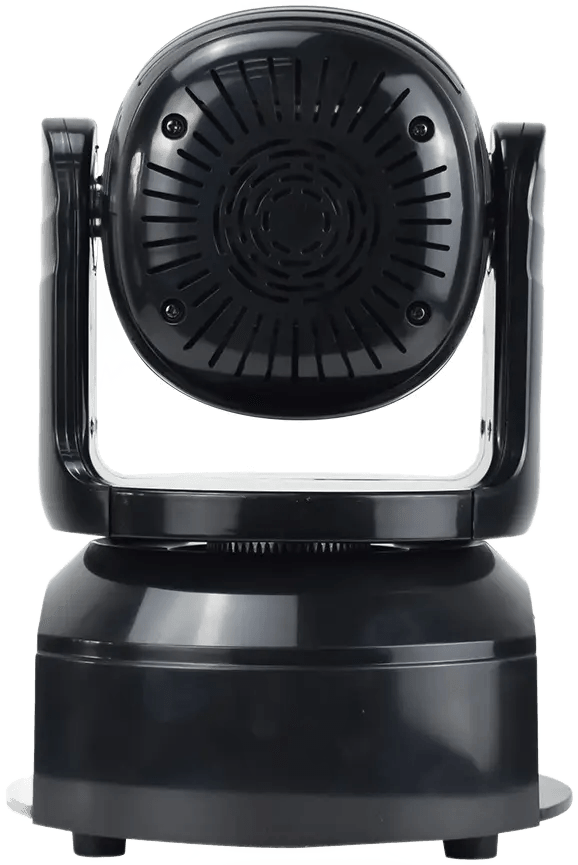

EAGLE 100 Beam Moving Head

The Eagle 100 is a powerful 100W LED moving head featuring gobo projection, 7-color mixing, and ultra-smooth dimming. Designed for stage productions and events, it offers 12-channel DMX512 control, auto/sound-activated modes, and ±540° pan/270° tilt movement for dynamic lighting effects.

Category

Details

Power

100W LED

Voltage

AC 220V, 50Hz

Control

DMX512 (12 channels)

Movement

540° pan / 270° tilt

Colors

7 static + auto-rotating color wheel

Gobos

7 rotating patterns + shake effects

Dimming

0-100% smooth dimming

Strobe

0-20Hz

Display

LCD menu for settings

DMX Channel Table (12 Channels)

CH

Function

Value Range

Effect

1

Pan (X-axis)

0-255

540° movement

2

Pan Fine

0-255

Precision adjustment

3

Tilt (Y-axis)

0-255

270° movement

4

Tilt Fine

0-255

Precision adjustment

5

Pan/Tilt Speed

0-255

Fast → Slow

6

Gobo Dimming

0-255

Pattern brightness (dark → light)

7

Strobe

0: Off, 1-255: 1-20Hz

Speed control

8

Color Wheel

0-127: Static colors, 128-255: Auto-rotation

7 colors + white

9

Gobo Selection

0-127: Static gobos, 128-255: Rotation

7 patterns + shake effects

10

Prism

0-7: Off, 8-255: On/Rotation

Adds texture to beams

11

Macro Functions

0-49: Manual, 50-200: Auto, 201-255: Sound-Activated

Mode selection

12

Reset

241-255

Fixture reset (hold 5s)

Menu System

Main Menu

Fine-Tuning Menu

(Hold Menu button for 5s)

Pan/Tilt/Color/Gobo: -127 to +127 calibration
