DMX 192 Lighting Controller
- Supplier
- Imix
- SKU
- IM-DMX192
- Availability
- Out of stock
- Brand
- Imix

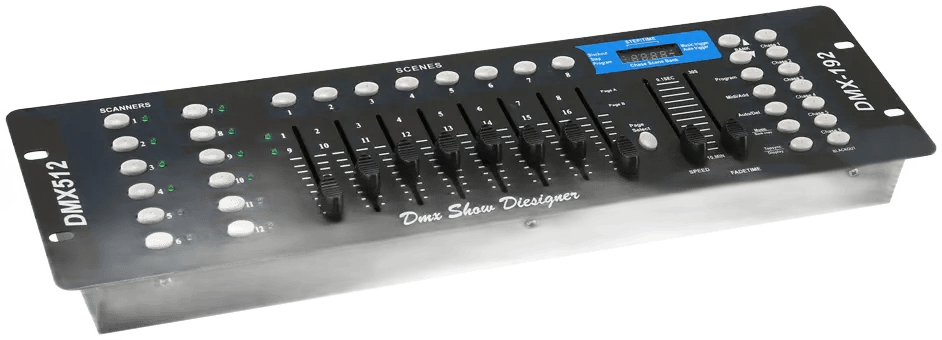

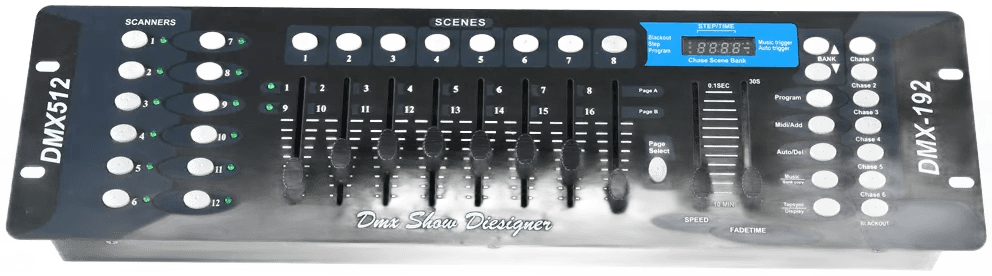

The DMX 192 is a versatile lighting controller designed for stage shows, clubs, and events. With 192 DMX channels, 30 programmable banks, and MIDI integration, it offers precise control over fixtures, scenes, and chases. Features include sound activation, auto-trigger modes, and real-time parameter adjustments via 8 potentiometers.
Category
Details
DMX Channels
192 (30 banks × 8 scenes)
Control Modes
Manual, Auto, Sound-Activated, MIDI
Display
4-digit LED (shows bank/scene/chase/step)
Connectivity
DMX-512 output, MIDI in/out, DC 5-12V input
Potentiometers
8 × 0-255 adjustable faders
48.5 × 14 × 7cm
Weight
18kg
Control Capabilities
1. Scene & Bank Management
2. Chase Programming
3. MIDI Integration
4. Special Functions
Setup & Operation
1. Basic Workflow
2. Programming Modes
Mode
Action
Scene Store
Hold PROGRAM + adjust DMX values → Press SCENE
Chase Build
Select scenes → Press MIDI/ADD to sequence
Bank Copy
Hold MUSIC/BANK COPY + select target bank
3. MIDI Mapping Example
MIDI Note
Function
00
Bank 1 Scene 1 On/Off
121
Chase 1 On/Off
The DMX 192 is a versatile lighting controller designed for stage shows, clubs, and events. With 192 DMX channels, 30 programmable banks, and MIDI integration, it offers precise control over fixtures, scenes, and chases. Features include sound activation, auto-trigger modes, and real-time parameter adjustments via 8 potentiometers.
Category
Details
DMX Channels
192 (30 banks × 8 scenes)
Control Modes
Manual, Auto, Sound-Activated, MIDI
Display
4-digit LED (shows bank/scene/chase/step)
Connectivity
DMX-512 output, MIDI in/out, DC 5-12V input
Potentiometers
8 × 0-255 adjustable faders
48.5 × 14 × 7cm
Weight
18kg
Control Capabilities
1. Scene & Bank Management
2. Chase Programming
3. MIDI Integration
4. Special Functions
Setup & Operation
1. Basic Workflow
2. Programming Modes
Mode
Action
Scene Store
Hold PROGRAM + adjust DMX values → Press SCENE
Chase Build
Select scenes → Press MIDI/ADD to sequence
Bank Copy
Hold MUSIC/BANK COPY + select target bank
3. MIDI Mapping Example
MIDI Note
Function
00
Bank 1 Scene 1 On/Off
121
Chase 1 On/Off
From
R 656.00
Enquire about this product
Tell us what you need for DMX 192 Lighting Controller. We will respond with availability, pricing, and next steps.
Related
Related products
From the same category in the catalog.
BeamZ / DMX Controllers & Consoles
BeamZ DMX Interface 128 Channel WITH Light Rider/esa2
Push your light show to a higher level with the BeamZ Light Rider/ Easy Stand Alone DMX interface!
S1-154.102B
BeamZ / DMX Controllers & Consoles
BeamZ DMX024 DMX Controller 24 Channel
DMX light control panel with 24 channels.
S1-154.062B
BeamZ / DMX Controllers & Consoles
BeamZ DMX192S DMX Controller 192 Channel
Control panel for various DMX units.
S1-154.060B
BeamZ / DMX Controllers & Consoles

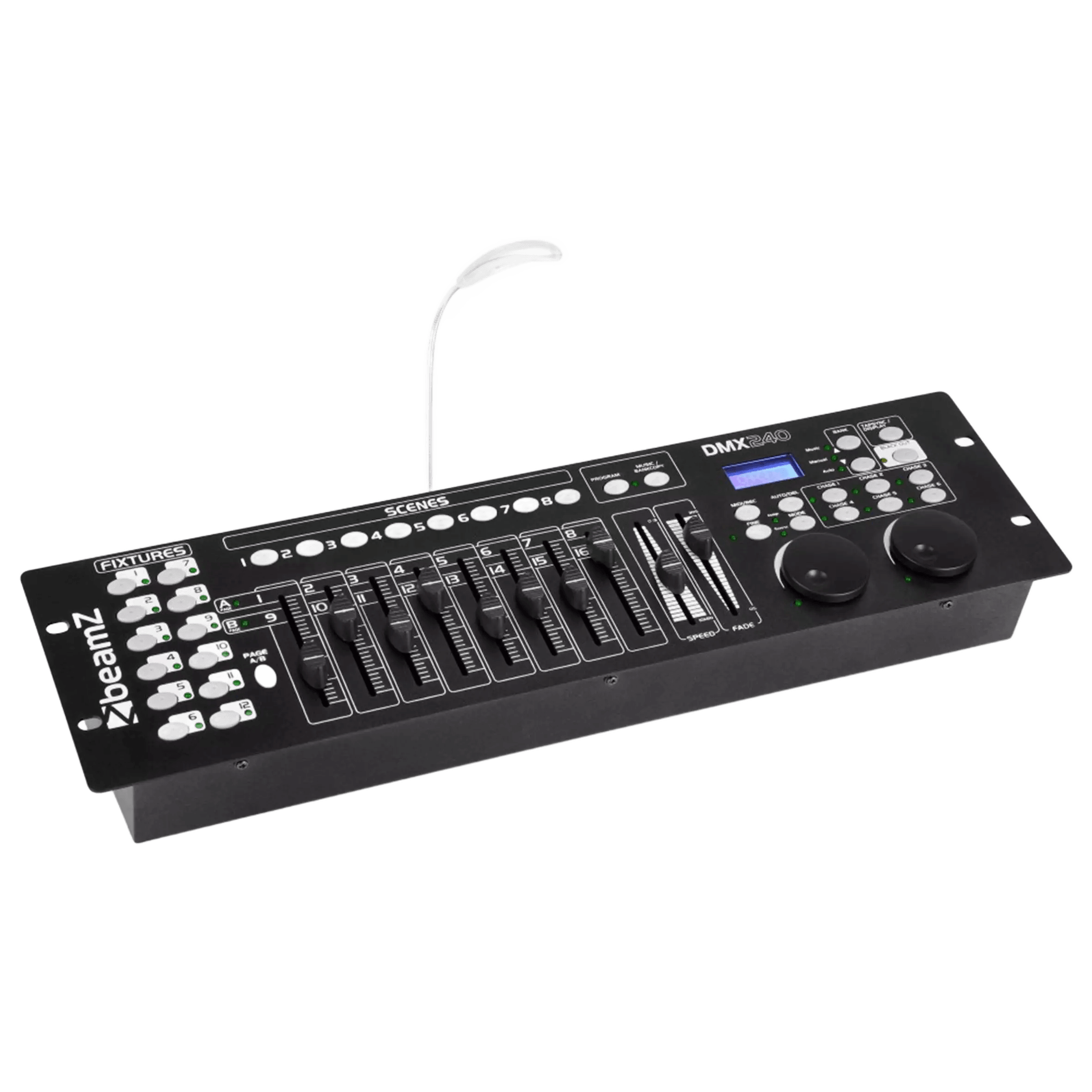

BeamZ DMX240 DMX Controller 192 Channel
